Complete description of the selected organ

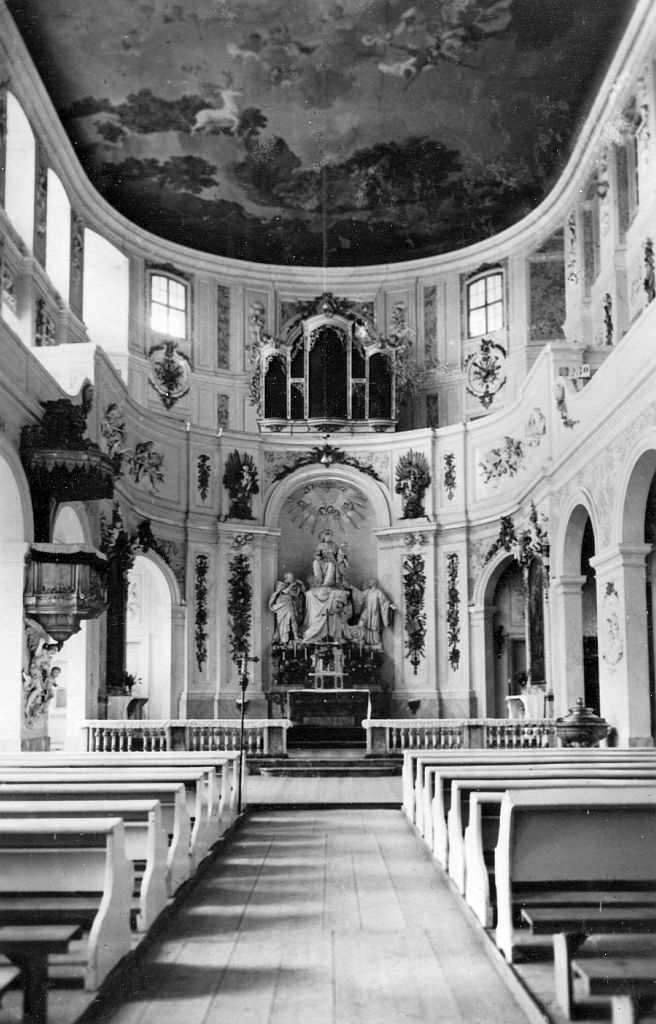

Source: Postcard
Wermsdorf, Deutschland (Sachsen) - Schloßkirche Hubertusburg
Municipal: Wermsdorf
Address: Hubertusburg 2, 04779, Wermsdorf
Description nr.: 2003272.
Built by: Tobias Schramm (1749)
Short list of all locations the organ has been
Technical data
Specification
Manual (C-d'''): Principal 8', Viol' di Gamba 8', Groß Gedackt 8', Octav 4', Klein Gedackt 4', Quinta 3', Octava 2', Mixtur 3 fach (1 1/3').
Pedal (C-c'): Subbaß 16', Octavbaß 8'.
Accessories: Calcant.
Source: Postcard
Wermsdorf, Deutschland (Sachsen) - Schloßkirche Hubertusburg
Municipal: Wermsdorf
Address: Hubertusburg 2, 04779, Wermsdorf
Description nr.: 2003272.
Built by: Tobias Schramm (1749)
Year | Builder | Opus | Activity | 1749 | Tobias Schramm | new organ | 1752 | Tobias Schramm | transfer/relocate | 2001 | Eule Orgelbau | reconstruction |
- In 1749 Tobias Schramm built a small organ for the Hofkirche in Dresden. The instrument was transferred three years later to the Schlosskirche of the Hubertusburg in Wermsdorf. It was not modified during the transfer, but the organ case was painted in different colors. The instrument remained without modifications after this.
- In 1917 the prospect pipes were removed, which were replaced by zinc ones in 1926. After 1945 the castle was looted. The organ was severely damaged and large parts of the mechanism, the claviature and the pipework were completely destroyed. The organ was reconstructed by Hermann Eule on the basis of some remnants of the mechanism, the heavily damaged organ case and 23 pipes that were still found. Restoration was completed in 2001.
Short list of all locations the organ has been
1749 | Dresden, Duitsland | Hofkirche |
1752 | Wermsdorf, Duitsland | Schloßkirche |
Technical data
Number of stops per division | |
- Manual | 8 |
- Pedal | 2 |
Total number of stops | 10 |
Key action | Mechanical |
Stop action | Mechanical |
Windchest(s) | Slider chests |
Pitch | a' = 415 Hz |
Temperament | Silbermann (modified) |
Specification
Manual (C-d'''): Principal 8', Viol' di Gamba 8', Groß Gedackt 8', Octav 4', Klein Gedackt 4', Quinta 3', Octava 2', Mixtur 3 fach (1 1/3').
Pedal (C-c'): Subbaß 16', Octavbaß 8'.
Accessories: Calcant.
Literature |
|
Links |
https://de.wikipedia.org/wiki/Schlosskapelle_Hubertusburg#Orgel |
