Ausführliche Beschreibung der vorgewählten Orgel

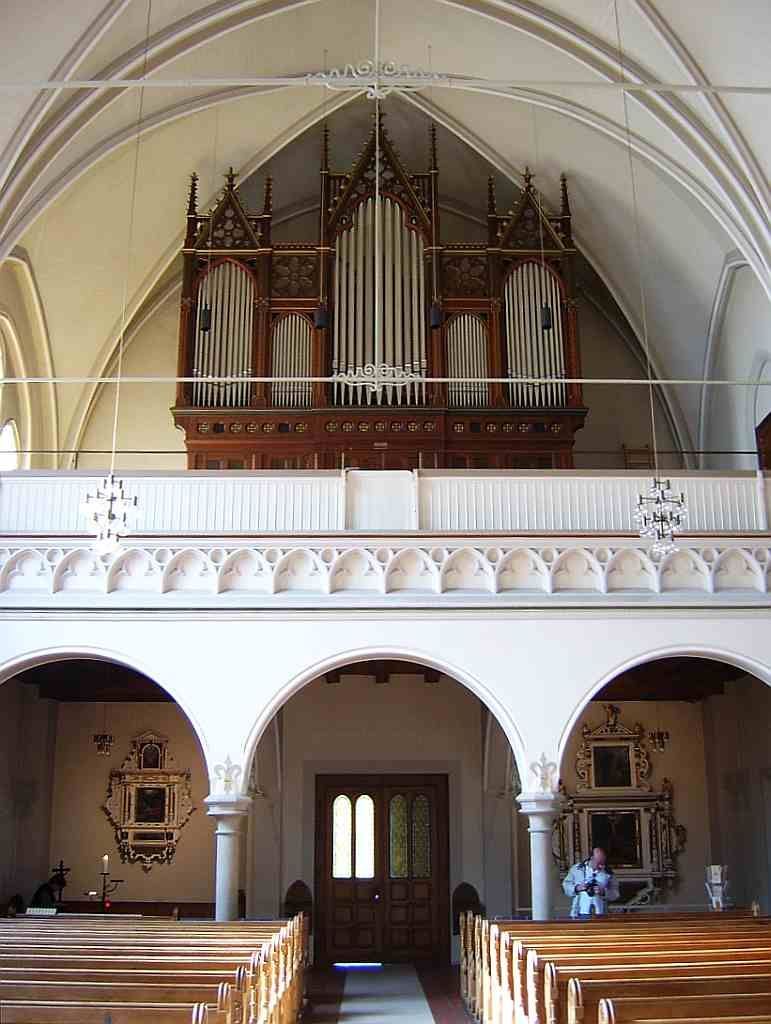

Bild: Andreas Werner
Bad Harzburg, Deutschland (Niedersachsen) - Martin-Lutherkirche
Gemeinde: Bad Harzburg
Region:Harz
Adresse: Lutherstraße 2, 38667, Bad Harzburg
Website: http://www.luthergemeinde-evangelisch.de/
Beschreibung nr.: 2002843.
Gebaut von: Wilhelm Sauer Orgelbau (1903) - Opus 891
Technische Daten
Disposition
Hauptwerk (C-a'''): Bordun 16', Principal 8', Gemshorn 8', Flûte Harmonique 8', Gedackt 8', Gamba 8', Octave 4', Rohrflöte 4', Octave 2', Cornett 3-4 fach, Mixtur 4 fach, Trompete 8'.
Positiv (C-a'''): Quintatön 16', Principal 8', Rohrfloete 8', Salicional 8', Octave 4', Flauto Dolce 4', Nasard 2 2/3', Piccolo 2', Progressio 2-4 fach, Clarinette 8'.
Schwellwerk (C-a'''): Lieblich Gedackt 16', Geigenprincipal 8', Koncertfloete 8', Gedackt 8', Aeoline 8', Voix Céleste 8', Fugara 4', Traversfloete 4', Harmonia Aetherea 2-3 fach, Oboe 8'.
Pedal (C-d'): Principalbaß 16', Subbaß 16', Violon 16', Octavbaß 8', Baßflöte 8', Cello 8', Octave 4', Posaune 16'.
Koppeln: I. Manual - II. Manual, I. Manual - III. Manual, II. Manual - III. Manual, Pedal - I. Manual, Pedal - II. Manual, Pedal - III. Manual, Tuttikoppel.
Nebenregister und Spielhilfen: 1 freie Kombination, 3 Festkombinationen (p - mf - tutti), Crescendowalze, Rohrwerkstutti, Rohrwerke ab 3', Walze ab, Handregistratur ab.
Übrige Quellen
Bild: Andreas Werner
Bad Harzburg, Deutschland (Niedersachsen) - Martin-Lutherkirche
Gemeinde: Bad Harzburg
Region:Harz
Adresse: Lutherstraße 2, 38667, Bad Harzburg
Website: http://www.luthergemeinde-evangelisch.de/
Beschreibung nr.: 2002843.
Gebaut von: Wilhelm Sauer Orgelbau (1903) - Opus 891
Jahr | Orgelbauer | Opus | Aktivität | 1903 | Wilhelm Sauer Orgelbau | 891 | Neubau | 1952 | firmen Friedrich Weissenborn | Umbau | 1963 | Hans-Heinz Blöß | Vergrößerung | 1971 | Hans-Heinz Blöß | Verschiedene Tätigkeiten | 2001 | Christian Scheffler | Reconstruction |
- In 1903 Wilhelm Sauer built an organ with two manuals, an independent pedal and 29 stops for the Lutherkirche in Bad Harzburg. The instrument, placed in a gothic revival organ case, had pneumatic cone chests. It was donated to the church by the König family.
- In 1952, Friedrich Weißenborn changed the disposition of the Pedal and increased its compass from 27 to 30 notes. Hans-Heinz Blöss electrified the traction in 1965 and installed a new movable console. In 1970/1971 he replaced the wind chests with slider chests. However, the key and stop action remained electric. The manual compass has been increased from 54 to 56 tones.
- In 2001 Christian Scheffler completed a reconstruction of the original concept, but expanded with a third manual. The stop list of the manuals I and III, as well as that of the pedal, is almost identical to that of Sauer.
Technische Daten
Anzahl Register pro Manual | |
- Hauptwerk | 12 |
- Positiv | 10 |
- Schwellwerk | 10 |
- Pedal | 8 |
Gesamtzahl der Stimmen | 40 |
Tastentraktur | Pneumatic |
Registertraktur | Pneumatic |
Windlade(n) | Cone chests |
Disposition
Hauptwerk (C-a'''): Bordun 16', Principal 8', Gemshorn 8', Flûte Harmonique 8', Gedackt 8', Gamba 8', Octave 4', Rohrflöte 4', Octave 2', Cornett 3-4 fach, Mixtur 4 fach, Trompete 8'.
Positiv (C-a'''): Quintatön 16', Principal 8', Rohrfloete 8', Salicional 8', Octave 4', Flauto Dolce 4', Nasard 2 2/3', Piccolo 2', Progressio 2-4 fach, Clarinette 8'.
Schwellwerk (C-a'''): Lieblich Gedackt 16', Geigenprincipal 8', Koncertfloete 8', Gedackt 8', Aeoline 8', Voix Céleste 8', Fugara 4', Traversfloete 4', Harmonia Aetherea 2-3 fach, Oboe 8'.
Pedal (C-d'): Principalbaß 16', Subbaß 16', Violon 16', Octavbaß 8', Baßflöte 8', Cello 8', Octave 4', Posaune 16'.
Koppeln: I. Manual - II. Manual, I. Manual - III. Manual, II. Manual - III. Manual, Pedal - I. Manual, Pedal - II. Manual, Pedal - III. Manual, Tuttikoppel.
Nebenregister und Spielhilfen: 1 freie Kombination, 3 Festkombinationen (p - mf - tutti), Crescendowalze, Rohrwerkstutti, Rohrwerke ab 3', Walze ab, Handregistratur ab.
Übrige dispositiondaten | |
---|---|
Mehrere dispositionen |
Before 1997, the stop list was: Hauptwerk (C-g'''): Quintade 16', Prinzipal 8', Gemshorn 8', Rohrflöte 8', Oktave 4', Zartflöte 4', Quinte 2 2/3', Oktave 2', Mixtur 4 fach, Zimbel 3 fach, Trompete 8'. Schwellwerk (C-g'''): Gedackt 8', Prinzipal 4', Rohrflöte 4', Quinte 2 2/3', Waldflöte 2', Terz 1 3/5', Sifflöte 1', Scharf 4 fach, Dulcian 16', Oboe 8', Clarine 4', Tremulant. Pedal (C-f'): Prinzipal 16', Subbass 16', Oktavbass 8', Gedackt 8', Oktave 4', Nachthorn 2', Mixtur 3 fach, Posaune 16'. Koppeln: Hauptwerk - Schwellwerk, Pedal - Hauptwerk, Pedal - Schwellwerk. Spielhilfen: 4 freie Kombinationen. |
Literatur |
|
Aufnahmen |
|
Weblinks |
https://www.orgelwerkstatt.de/index.php?option=com_content&view=article&id=78&Itemid=85 https://voxorgani.org/wp-content/uploads/2018/02/Disposition-Bad-Harzburg-Sauer-Scheffler-Orgel.pdf https://organindex.de/index.php?title=Bad_Harzburg,_Lutherkirche |
- Jörg R. Becker
|
