Description complète d'orgue sélectionné

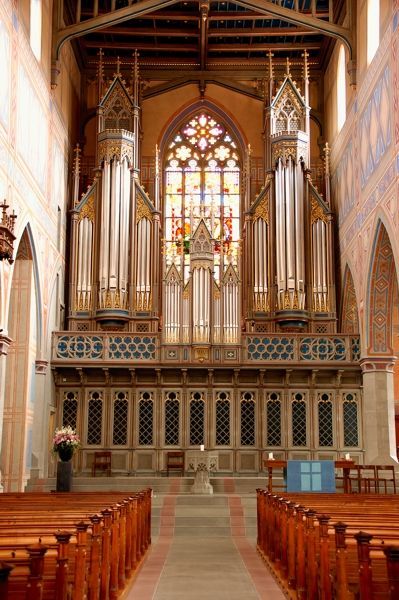

Photo: Lothar D. Zickermann. Datation: 3 June 2009.

Photo: Lothar D. Zickermann

Sankt Gallen, Die Schweiz / La Suisse (Sankt Gallen) - Reformierte Stadtkirche Sankt Laurenzen
Commune: Sankt Gallen
Adresse: Marktgasse 25, 9000, Sankt Gallen
Site Web: https://www.ref-sgc.ch/

Description no.: 2002288.

Bâti par: Orgelbau Kuhn AG (1979)
L'orgue comprend le parent le matériel: Pipes and organ case de 1856 de Martin Braun

Année	Facteur	Opus	Activité
1856	Martin Braun		orgue neuf
1979	Orgelbau Kuhn AG		orgue neuf dans buffet vieille
2004	Orgelbau Kuhn AG		changer la disposition
2023	Friedrich Goll Orgelbau AG	107	expansion

In 1979 the Kuhn company built a new organ for the Laurenzenkirche in Sankt-Gallen. The existing neo-Gothic organ cases were used in the construction, which were connected by a new positive organ. A lot of pipework (about 25 stops) was also taken over from the old organ, a work by Martin Braun from 1856. On May 20, 1979 the organ was put into use.
In 2004 the organ was restored and partly rebuilt by Kuhn, on the occasion of a restoration of the interior of the church building. In addition, on the Hauptwerk the Nachthorn 8' has been replaced by a Flûte Harmonique 8' and the Quinte 2 2/3' by a Gambe 8'. On the Schwellwerk, the Terzzimbel was replaced by a Terz 1 3/5' and the Clairon 4' by a nineteenth-century Oboe 8'. On the pedal, the Blockflöte 2' was replaced by a Violoncello 8'.
In 2020 a plan has been made for the construction of a new organ by Goll, that will be located on three locations in the church (West, North and South galleries), and that completely incorporates the Kuhn organ of 1979/2004. The only modification on the instrument was that the Gamba 8' from the Hauptwerk has been replaced with a Quinte 2 2/3'. The three new divisions can be played from the central console of the Kuhn organ, on any keyboard. A fourth manual (Solo) has been added, where registers of the West Organ and the South Organ can be selected.
The enlarged organ was completed in 2023, and could be dedicated on September 3rd, 2023. During the church service the organ was played by the church's own organist, Bernhard Ruchti, who was also the consultant during the construction. The inauguration concert was played by Thomas Trotter at the end of the afternoon.

Données techniques

Nombre de registres par manuel
- Hauptwerk	11
- Rückpositiv	10
- Schwellwerk	13
- West-Orgel (Principal-Werk)	13
- Süd-Orgel (Flöten-Werk)	15
- Nord-Orgel (Streicher-Werk)	12
- Pedal	11
Nombre de jeux total	85
Transmission des clés	Electrical
Transmission des jeux	Electrical
Sommier(s)	Slider chests

Composition
Hauptwerk (C-g'''): Pommer 16', Praestant 8', Flûte Harmonique 8' - 2004, Spitzgedackt 8', Octave 4', Rohrflöte 4', Quinte 2 2/3' - 2023, Superoctave 2', Cornett 5 fach (f°-g'''), Mixtur 4 fach (1 1/3'), Trompete 8', Tremulant.
Rückpositiv (C-g'''): Suavial 8', Bleigedackt 8', Principal 4', Koppelflöte 4', Schwiegel 2', Spitzquinte 1 1/3', Sifflöte 1', Sesquialtera 2 fach (2 2/3'), Scharf 3 fach (1'), Krummhorn 8', Tremulant.
Schwellwerk (C-g'''): Italienisch Prinzipal 8', Holzgedackt 8', Viola di Gamba 8', Unda Maris 8' (from c°), Geigenprincipal 4', Traversflöte 4', Nazard 2 2/3', Flageolet 2', Terz 1 3/5' - 2004, Mixtur 5 fach (2'), Fagott 16', Trompette Harmonique 8', Oboe 8' - 19th century, Tremulant.
West-Orgel - Manual I (Principal-Werk) (C-g'''): Violonbass 32', Contra-Bourdon 32', Principal 16', Subbass 16', Principal 8', Bourdon 8', Quinte 5 1/3', Octave 4', Octave 2', Mixtur 4 fach (2 2/3'), Trompete 8', Tremulant, Tuba Magna 16', Tuba Mirabilis 8', Tamtam, Becken.
Süd-Orgel - Manual II (Flöten-Werk) (C-g'''): Lieblich Bourdon 16', Lieblich Bourdon 8', Hohlflöte 8', Doppelflöte 8', Flauto Dolce 8', Quintatön 8', Hohlflöte 4', Doppelflöte 4', Flauto Dolce 4', Traverso 4', Quintflöte 2 2/3', Piccolo 2', Terzflöte 1 3/5', Septime 1 1/7', Saxophon 9', Tremulant, Crotales.
Nord-Orgel - Manual III (Streicher-Werk) (C-g'''): Violone 16', Rohrflöte 16', Rohrflöte 8', Salicional 8', Gambe 8', Dolcissimo 8', Vox Coelestis 8', Rohrflöte 4', Salicet 4', Harmonia Aetherea 2 2/3', Aeoline 16', Vox Humana 8', Tremulant, Glocken.
Pedal (C-f'): Praestant 16', Subbass 16', Octave 8', Spitzflöte 8', Violoncello 8' - 2004, Octave 4', Rohrpfeife 4', Mixtur 4 fach (2 2/3'), Posaune 16', Zinke 8', Schalmei 4'.
Accouplements: Manual I - Manual II, Manual I - Manual III, Manual I - Manual IV, Manual II - Manual III, Manual II - Manual IV, Manual III - Manual IV, Pedal - Manual I, Pedal - Manual II, Pedal - Manual III, Pedal - Manual IV, Melodiekoppel Manual I - Manual II, Melodiekoppel Manual I - Manual III, Melodiekoppel Manual I - Manual IV, 2 freie Koppeln.
Jouer conseils: 2500 Setzer-combinaties - 2004, Tutti, Register-crescendo.

Autres données des dispositions
Autres dispositions	The original Braun organ had the following specification: I. Manual: Principal 16', Bourdon 16', Principal 8', Principalflöte 8', Rohrflöte 8', Gemshorn 8', Viola di Gamba 8', Octave 4', Kleingedackt 4', Waldflöte 2', Cornett 3-5 fach (8'), Mixtur Major 2-3 fach (2 2/3'), Mixtur Minor 4 fach (1 1/3'), Trompete 8'. II. Manual: Bordunalflöte 16', Principal 8', Gedackt 8', Salicional 8', Octave 4', Rohrflöte 4', Superoctave 2', Mixtur 5 fach (2'), Fagott & Oboe 8'. III. Manual: Fugara 8', Gedackt 8', Spitzflöte 8', Flauto Dolce 4', Quintflöte 2 2/3', Vox Humana 8'. Pedal: Principalbaß 16', Subbaß 16', Violonbaß 16', Octavbaß 8', Violoncell 2 fach (8'), Octave 4', Posaunenbaß 16', Trompete 8'. The stop list of the Kuhn organ from 1979 was: Hauptwerk: Pommer 16', Praestant 8', Nachthorn 8', Spitzgedackt 8', Oktave 4', Rohrflöte 4', Quinte 2 2/3', Superoktave 2', Mixtur 4 fach (1 1/3'), Kornett 5 fach (vanaf f), Trompete 8'. Rückpositiv: Suavial 8', Bleigedackt 8', Prinzipal 4', Koppelflöte 4', Schwiegel 2', Spitzquinte 1 1/3', Sifflöte 1', Scharf 3 fach (1'), Sesquialtera 2 fach, Krummhorn 8', Tremulant. Schwellwerk: Italienisch Prinzipal 8', Holzgedackt 8', Viola di Gamba 8', Unda Maris 8' (vanaf c), Geigenprinzipal 4', Traversflöte 4', Nazard 2 2/3', Flageolet 2', Mixtur 5 fach (2'), Terzzimbel 3 fach (2/3'), Fagott 16', Trompette Harmonique 8', Clairon 4', Tremulant. Pedal: Praestant 16', Subbass 16', Oktave 8', Spitzflöte 8', Oktave 4', Rohrflöte 4', Blockflöte 2', Mixtur 4 fach (2 2/3'), Posaune 16', Zinke 8', Schalmei 4'. Koppeln: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk. Spielhilfen: 6 Setzer-combinaties, Tutti, Register-crescendo. After the 2004 modifications, the stop list was: Hauptwerk (C-g'''): Pommer 16', Praestant 8', Flûte Harmonique 8' - 2004, Spitzgedackt 8', Gambe 8' - 2004, Oktave 4', Rohrflöte 4', Superoktave 2', Mixtur 4 fach (1 1/3'), Kornett 5 fach (from f°), Trompete 8'. Rückpositiv (C-g'''): Suavial 8', Bleigedackt 8', Prinzipal 4', Koppelflöte 4', Schwiegel 2', Spitzquinte 1 1/3', Sifflöte 1', Scharf 3 fach (1'), Sesquialtera 2 fach, Krummhorn 8', Tremulant. Schwellwerk (C-g'''): Italienisch Prinzipal 8', Holzgedackt 8', Viola di Gamba 8', Unda Maris 8' (from c°), Geigenprinzipal 4', Traversflöte 4', Nazard 2 2/3', Flageolet 2', Terz 1 3/5' - 2004, Mixtur 5 fach (2'), Fagott 16', Trompette Harmonique 8', Oboe 8' - 19e eeuw, Tremulant. Pedal (C-f'): Praestant 16', Subbass 16', Oktave 8', Spitzflöte 8', Violoncello 8' - 2004, Oktave 4', Rohrflöte 4', Mixtur 4 fach (2 2/3'), Posaune 16', Zinke 8', Schalmei 4'. Koppeln: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk. Nebenregister und Spielhilfen: 2500 Setzer-combinaties - 2004, Tutti, Register-crescendo.

Autres données des dispositions

Autres dispositions

The original Braun organ had the following specification:
I. Manual: Principal 16', Bourdon 16', Principal 8', Principalflöte 8', Rohrflöte 8', Gemshorn 8', Viola di Gamba 8', Octave 4', Kleingedackt 4', Waldflöte 2', Cornett 3-5 fach (8'), Mixtur Major 2-3 fach (2 2/3'), Mixtur Minor 4 fach (1 1/3'), Trompete 8'.
II. Manual: Bordunalflöte 16', Principal 8', Gedackt 8', Salicional 8', Octave 4', Rohrflöte 4', Superoctave 2', Mixtur 5 fach (2'), Fagott & Oboe 8'.
III. Manual: Fugara 8', Gedackt 8', Spitzflöte 8', Flauto Dolce 4', Quintflöte 2 2/3', Vox Humana 8'.
Pedal: Principalbaß 16', Subbaß 16', Violonbaß 16', Octavbaß 8', Violoncell 2 fach (8'), Octave 4', Posaunenbaß 16', Trompete 8'.

The stop list of the Kuhn organ from 1979 was:
Hauptwerk: Pommer 16', Praestant 8', Nachthorn 8', Spitzgedackt 8', Oktave 4', Rohrflöte 4', Quinte 2 2/3', Superoktave 2', Mixtur 4 fach (1 1/3'), Kornett 5 fach (vanaf f), Trompete 8'.
Rückpositiv: Suavial 8', Bleigedackt 8', Prinzipal 4', Koppelflöte 4', Schwiegel 2', Spitzquinte 1 1/3', Sifflöte 1', Scharf 3 fach (1'), Sesquialtera 2 fach, Krummhorn 8', Tremulant.
Schwellwerk: Italienisch Prinzipal 8', Holzgedackt 8', Viola di Gamba 8', Unda Maris 8' (vanaf c), Geigenprinzipal 4', Traversflöte 4', Nazard 2 2/3', Flageolet 2', Mixtur 5 fach (2'), Terzzimbel 3 fach (2/3'), Fagott 16', Trompette Harmonique 8', Clairon 4', Tremulant.
Pedal: Praestant 16', Subbass 16', Oktave 8', Spitzflöte 8', Oktave 4', Rohrflöte 4', Blockflöte 2', Mixtur 4 fach (2 2/3'), Posaune 16', Zinke 8', Schalmei 4'.
Koppeln: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk.
Spielhilfen: 6 Setzer-combinaties, Tutti, Register-crescendo.

After the 2004 modifications, the stop list was:
Hauptwerk (C-g'''): Pommer 16', Praestant 8', Flûte Harmonique 8' - 2004, Spitzgedackt 8', Gambe 8' - 2004, Oktave 4', Rohrflöte 4', Superoktave 2', Mixtur 4 fach (1 1/3'), Kornett 5 fach (from f°), Trompete 8'.
Rückpositiv (C-g'''): Suavial 8', Bleigedackt 8', Prinzipal 4', Koppelflöte 4', Schwiegel 2', Spitzquinte 1 1/3', Sifflöte 1', Scharf 3 fach (1'), Sesquialtera 2 fach, Krummhorn 8', Tremulant.
Schwellwerk (C-g'''): Italienisch Prinzipal 8', Holzgedackt 8', Viola di Gamba 8', Unda Maris 8' (from c°), Geigenprinzipal 4', Traversflöte 4', Nazard 2 2/3', Flageolet 2', Terz 1 3/5' - 2004, Mixtur 5 fach (2'), Fagott 16', Trompette Harmonique 8', Oboe 8' - 19e eeuw, Tremulant.
Pedal (C-f'): Praestant 16', Subbass 16', Oktave 8', Spitzflöte 8', Violoncello 8' - 2004, Oktave 4', Rohrflöte 4', Mixtur 4 fach (2 2/3'), Posaune 16', Zinke 8', Schalmei 4'.
Koppeln: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk.
Nebenregister und Spielhilfen: 2500 Setzer-combinaties - 2004, Tutti, Register-crescendo.

Références

Die Orgeln der Kirche St. Laurenzen in St. Gallen / Gerig Hansjörg. - St. Gallen, 1979.
Historismus im Orgelbau der Schweiz / Willi Lippuner. - In: Acta Organologica Band 17, Kassel : Merseburger Verlag, 1984. - (Veröffentlichung der Gesellschaft der Orgelfreunde ; 100).
Orgel International 2/2001.
Kuhn-Orgel in St. Laurenzen St. Gallen. - 2003. - Leaflet.
Neue Orgel: Von allen Seiten umgibst Du mich : Stadtkirche St. Laurenzen, St. Gallen / Bernhard Ruchti. - In: Musik & Liturgie, 2023 No. 4.

Lièns

https://www.orgelbau.ch/op=112480
https://www.orgelbau.ch/op=114031
https://www.goll-orgel.ch/work/neubau/st-gallen-st-laurenzen-orgel/
