Description complète d'orgue sélectionné

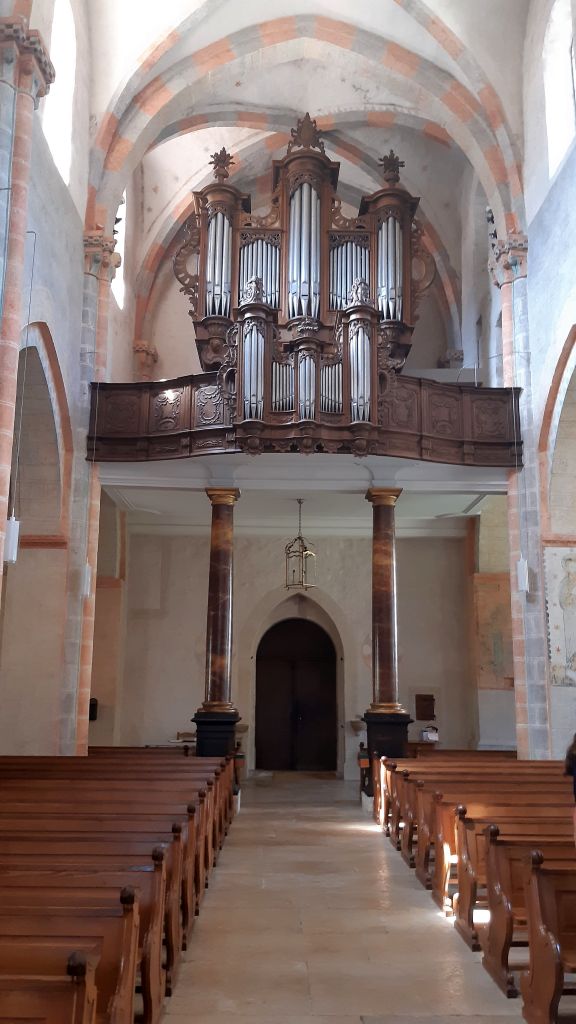

Photo: Bram Luteyn
Saint-Ursanne, Die Schweiz / La Suisse (Jura (Suisse)) - Église Collégiale Saint-Ursanne
Commune: Clos du Doubs
Adresse: Rue du 23-Juin, 2882, Saint-Ursanne
Description no.: 2000941.
Bâti par: Jacques Besançon (1776)
Jacques Besançon built a new organ in Saint-Ursanne in 1776, replacing the organ of J.B. Valtrin from 1749. In 1879 and 1941 the instrument was restored by the Geneva company Tschanun. During this restoration several reeds were replaced by labials: on the Grand-Orgue a Voix Humaine 8' by a Bourdon 4', on the Positif a Cromorne 8' by a Viole 8' and on the pedal a Trompette 8' (probably) by a Viole de Basse 8'. In 1984 the organ was restored by Hans Füglister. A last restoration took place in 2004 by Bertrand Cattiaux.
Données techniques
Composition
Grand-Orgue (C-g'''): Montre 8', Bourdon 8', Prestant 4', Flûte 4', Bourdon 4', Quinte 2 2/3', Doublette 2', Tierce 1 3/5', Grand Cornet 5 rangs, Fourniture 3 rangs, Cymbale 3 rangs, Trompette 8' (B/D), Clairon 4', Tremblant.
Positif (C-g'''): Bourdon 8', Prestant 4', Flûte 4', Nasard 2 2/3', Doublette 2', Tierce 1 3/5', Fourniture 3 rangs, Cromorne 8' - 1984, Tremblant.
Pédale (C-d'): Flûte 16', Flûte 8', Prestant 4' - 1984, Trompette 8' - 1984, Clairon 4' - 1984.
Accouplements: Grand-Orgue - Positif, Pédale - Grand-Orgue.
Photo: Bram Luteyn
Saint-Ursanne, Die Schweiz / La Suisse (Jura (Suisse)) - Église Collégiale Saint-Ursanne
Commune: Clos du Doubs
Adresse: Rue du 23-Juin, 2882, Saint-Ursanne
Description no.: 2000941.
Bâti par: Jacques Besançon (1776)
| Année | Facteur | Opus | Activité | 1776 | Jacques Besançon | orgue neuf | 1879 | Bernard Tschanun | restauration | 1941 | Bernard Tschanun | activités différentes | 1984 | Manufacture d’Orgues Füglister Sàrl | restauration | 2004 | Bertrand Cattiaux | restauration |
Jacques Besançon built a new organ in Saint-Ursanne in 1776, replacing the organ of J.B. Valtrin from 1749. In 1879 and 1941 the instrument was restored by the Geneva company Tschanun. During this restoration several reeds were replaced by labials: on the Grand-Orgue a Voix Humaine 8' by a Bourdon 4', on the Positif a Cromorne 8' by a Viole 8' and on the pedal a Trompette 8' (probably) by a Viole de Basse 8'. In 1984 the organ was restored by Hans Füglister. A last restoration took place in 2004 by Bertrand Cattiaux.
Données techniques
| Nombre de registres par manuel | |
| - Grand-Orgue | 13 |
| - Positif | 8 |
| - Pédale | 5 |
| Nombre de jeux total | 26 |
| Transmission des clés | Mechanical |
| Transmission des jeux | Mechanical |
| Sommier(s) | Slider chests |
Composition
Grand-Orgue (C-g'''): Montre 8', Bourdon 8', Prestant 4', Flûte 4', Bourdon 4', Quinte 2 2/3', Doublette 2', Tierce 1 3/5', Grand Cornet 5 rangs, Fourniture 3 rangs, Cymbale 3 rangs, Trompette 8' (B/D), Clairon 4', Tremblant.
Positif (C-g'''): Bourdon 8', Prestant 4', Flûte 4', Nasard 2 2/3', Doublette 2', Tierce 1 3/5', Fourniture 3 rangs, Cromorne 8' - 1984, Tremblant.
Pédale (C-d'): Flûte 16', Flûte 8', Prestant 4' - 1984, Trompette 8' - 1984, Clairon 4' - 1984.
Accouplements: Grand-Orgue - Positif, Pédale - Grand-Orgue.
| Autres données des dispositions | |
|---|---|
| Autres dispositions |
De dispositie luidde van 1941 tot 1984: Grand-Orgue: Montre 8', Bourdon 8', Prestant 4', Flûte 4', Bourdon 4', Quinte 2 2/3', Doublette 2', Tierce 1 3/5', Grand Cornet 5 rangs, Fourniture 3 rangs, Cymbale 3 rangs, Trompette 8' (gedeeld), Clairon 4'. Positif: Bourdon 8', Viole 8', Prestant 4', Flûte 4', Nasard 2 2/3', Doublette 2', Tierce 1 3/5', Fourniture 3 rangs. Pédale: Flûte 16', Flûte 8', Bourdon 8', Viole de Basse 8', Flûte 4'. Koppelingen: Grand-Orgue - Positif, Pédale - Grand-Orgue, Pédale - Positif. |
| Lièns |
http://www.orguescattiaux.org/Liste%20des%20instruments/St%20Ursanne/St-Ursanne.html https://ligneorguesremarquables.com/en/the-organs/collegiale-de-st-ursanne-orgue-historique/ |
 |
 |
