Ausführliche Beschreibung der vorgewählten Orgel
Bild: Geert Jan Pottjewijd

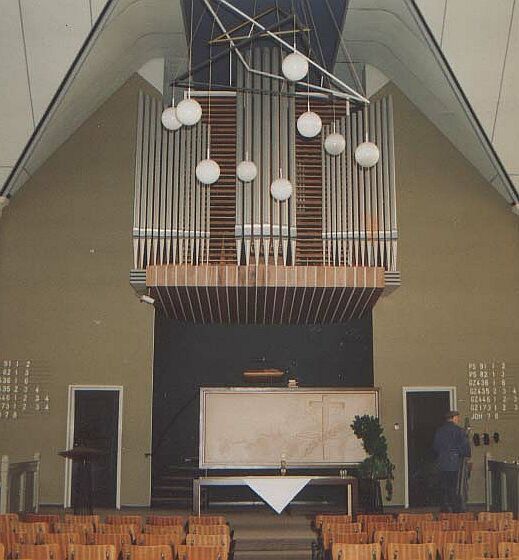

Emmen, Nederland (Drenthe) - Zuiderkerk
Gemeinde: Emmen
Adresse: Wilhelminastraat 13, 7811 JA, Emmen
Beschreibung nr.: 1000865.
Kartennummer "Stichting Orgelcentrum": GR0779.
Gebaut von: Valckx & Van Kouteren (1936)
Sold (2016)
Technische Daten
Disposition
Hoofdwerk (C-g'''): Prestant 8', Holpijp 8', Octaaf 4', Roerfluit 4', Quint 2 2/3', Octaaf 2', Cornet V (discant) - 1958, Mixtuur III-IV sterk, Trompet 8'.
Zwelwerk (C-g'''): Vioolprestant 8', Roerfluit 8' - 1958, Zingend Prestant 4' - 1958, Open Fluit 4', Nazard 2 2/3' - 1958, Woudfluit 2', Basson 8', Tremolo.
Pedaal (C-f'): Subbas 16', Violon 16', Octaafbas 8', Gedekt Bas 8' - 1958, Koraalbas 4' - 1958.
Koppeln: Manuaal I - Manuaal II, Pedaal - Manuaal I, Pedaal - Manuaal II.
Nebenregister und Spielhilfen: Automatisch piano-pedaal, Vrije combinatie, Vaste combinaties (p mf f en t), Generaalcrescendo-pedaal, Tongwerken af.
Übrige Quellen
Bild: Geert Jan Pottjewijd
Emmen, Nederland (Drenthe) - Zuiderkerk
Gemeinde: Emmen
Adresse: Wilhelminastraat 13, 7811 JA, Emmen
Beschreibung nr.: 1000865.
Kartennummer "Stichting Orgelcentrum": GR0779.
Gebaut von: Valckx & Van Kouteren (1936)
Sold (2016)
| Jahr | Orgelbauer | Opus | Aktivität | 1936 | Valckx & Van Kouteren | Neubau | 1958 | Verschueren Orgelbouw | 461 | Umbau |

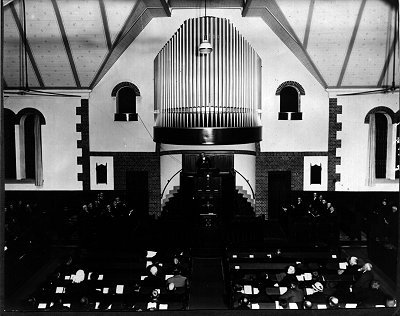

- Valck & Van Koouteren built a pneumatic organ in 1936 in the Zuiderkerk in the Wilhelminastraat in Emmen, built in 1923. It was put into use on October 22, 1936. The old organ from 1904 - that had been relocated from the previous church building - was sold to the Gereformeerde Kerk in Vlagtwedde. When it was inaugurated, the organ was played by Henk Pijlman, organist in Meppel.

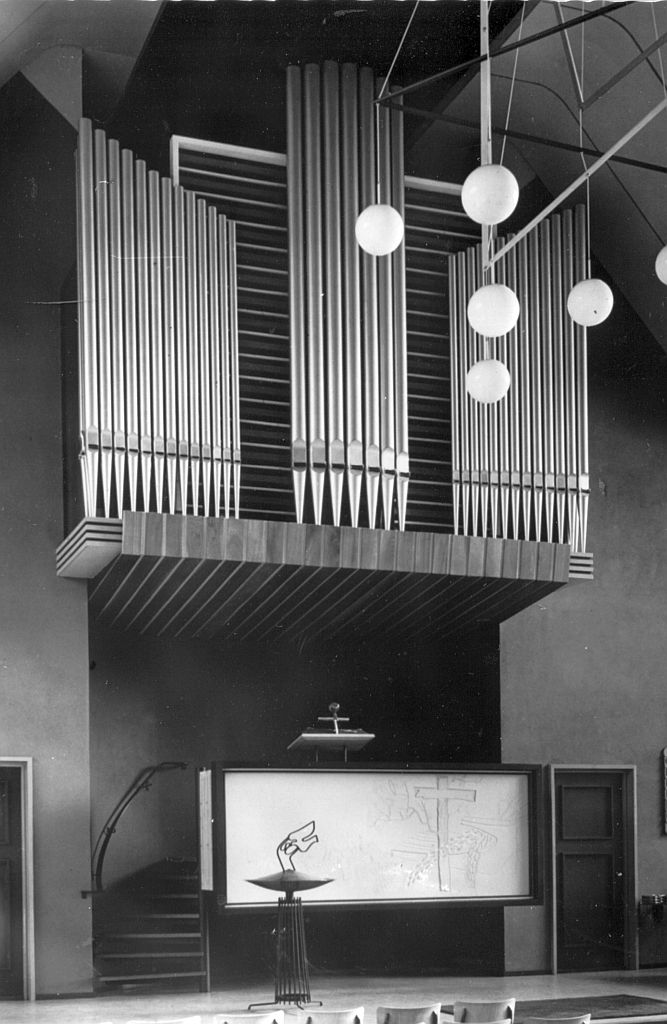

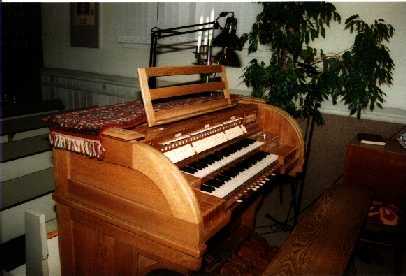

- In 1958 Verschueren renovated the instrument. The action was converted to electro-pneumatic, the console was moved to the church floor and the facade was changed so that it would fit better with the modernized church interior.

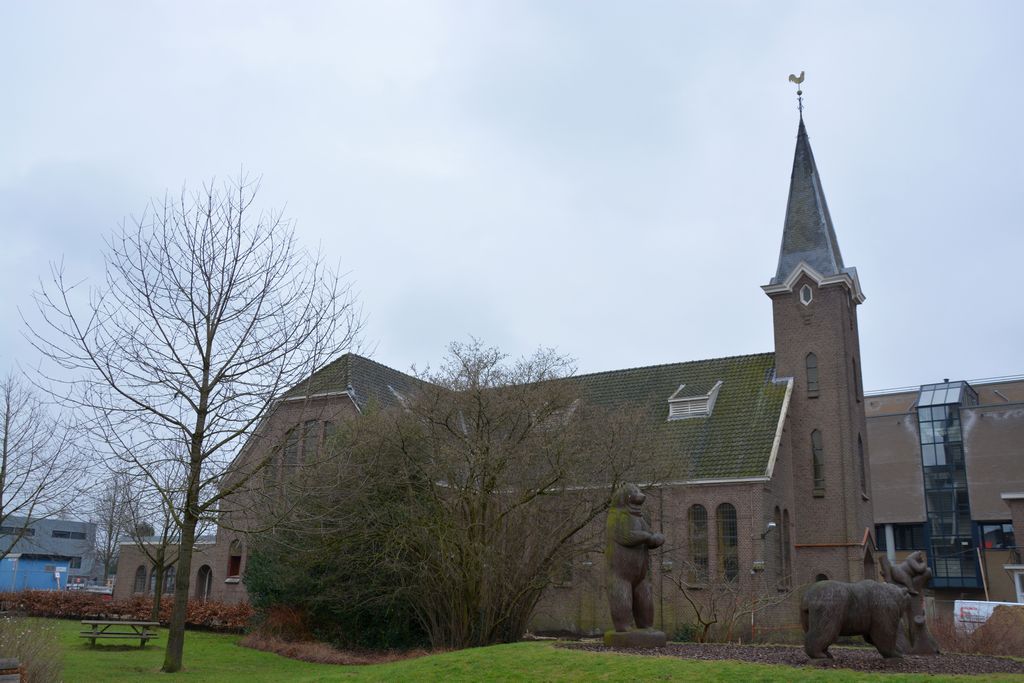

- In 2010 it was announced that the Zuiderkerk would probably be closed. This finally happened in March 2015. The church building was subsequently rented out, including for exhibitions. The organ remained in the building for the time being, but was dismantled by Sicco Steendam in the second week of May 2016, with the intention of placing it elsewhere. The conversion of the building into apartments then started.
Technische Daten
| Anzahl Register pro Manual | |
| - Hoofdwerk | 9 |
| - Zwelwerk | 7 |
| - Pedaal | 5 |
| Gesamtzahl der Stimmen | 21 |
| Tastentraktur | Electropneumatic |
| Registertraktur | Electropneumatic |
| Windlade(n) | Cone chests |
| Temperatur | Equal temperament |
Disposition
Hoofdwerk (C-g'''): Prestant 8', Holpijp 8', Octaaf 4', Roerfluit 4', Quint 2 2/3', Octaaf 2', Cornet V (discant) - 1958, Mixtuur III-IV sterk, Trompet 8'.
Zwelwerk (C-g'''): Vioolprestant 8', Roerfluit 8' - 1958, Zingend Prestant 4' - 1958, Open Fluit 4', Nazard 2 2/3' - 1958, Woudfluit 2', Basson 8', Tremolo.
Pedaal (C-f'): Subbas 16', Violon 16', Octaafbas 8', Gedekt Bas 8' - 1958, Koraalbas 4' - 1958.
Koppeln: Manuaal I - Manuaal II, Pedaal - Manuaal I, Pedaal - Manuaal II.
Nebenregister und Spielhilfen: Automatisch piano-pedaal, Vrije combinatie, Vaste combinaties (p mf f en t), Generaalcrescendo-pedaal, Tongwerken af.
| Übrige dispositiondaten | |
|---|---|
| Mehrere dispositionen |
The original specification was: Hoofdwerk (C-g'''): Bourdon 16' (C-f' van Pedaal), Prestant 8', Roerfluit 8', Octaaf 4', Gemshoorn 4', Quint 2 2/3', Octaaf 2', Mixtuur-Cornet III-IV sterk, Trompet 8'. Zwelwerk (C-g'''): Viool Prestant 8', Holpijp 8', Viola da Gamba 8', Voix Celeste 8', Open Fluit 4', Woudfluit 2', Basson Hobo 8', Tremulant. Pedaal (C-f'): Subbas 16', Violon 16', Octaafbas 8'. Koppelingen: Manuaal I - Manuaal II, Sub Manuaal I - Manuaal II, Super Manuaal I - Manuaal II, Pedaal - Manuaal I, Super Pedaal - Manuaal I, Pedaal - Manuaal II. Speelhulpen: Vrije combinatie, 4 vaste combinaties (p - mf - f - tutti), Automatisch Piano Pedaal, Generale Crescendo, Tongenregisters af. |
| Literatur |
|
| Weblinks |
https://www.orgelsindrenthe.nl/nederlands/emmen05.html |
- Sicco Steendam
 |
 |
 |
 |
