Complete description of the selected organ
Source: Musik und Kirche. Date: 1928.

Source: Musik und Kirche

Wiebelskirchen, Deutschland (Saarland) - Dreifaltigkeitskirche
Municipal: Neunkirchen (Saar)
Address: Prälat-Schütz-Straße, 66540, Wiebelskirchen
Website: http://www.dreifaltigkeit-nk.de/

Description nr.: 2045046.

Built by: Gebrüder Späth (1928)

YearBuilderOpusActivity
1928 Gebrüder Späth  new organ
  Hugo Mayer Orgelbau  maintenance/reparations
1978 Oberlinger Orgelbau  maintenance/reparations

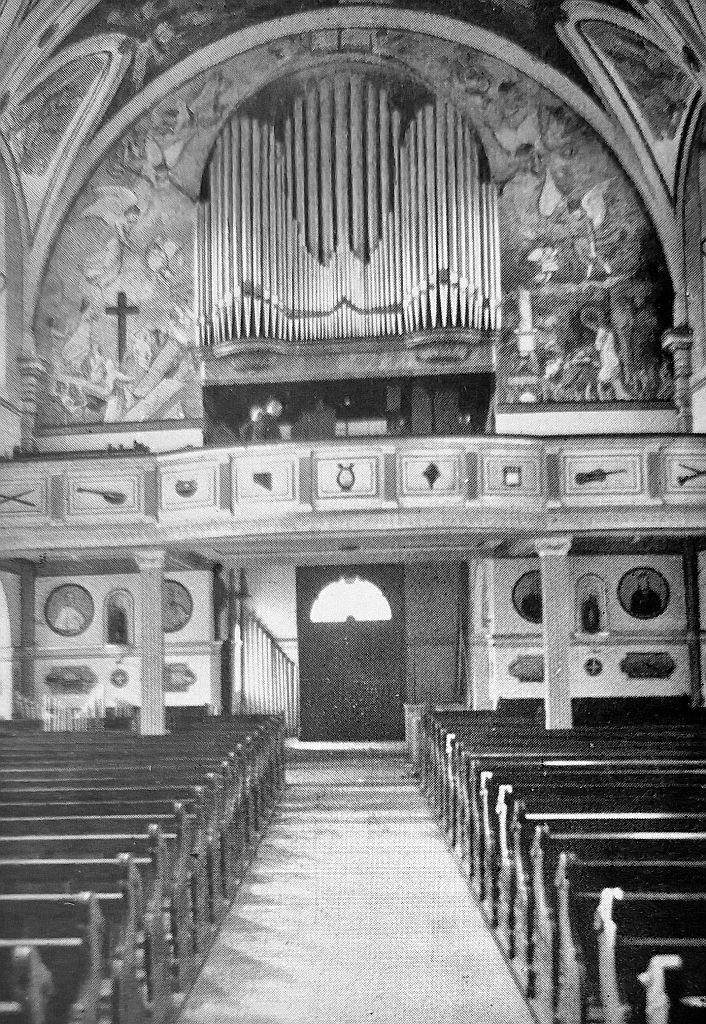

The organ in the Dreifaltigkeitskirche was built by the Gebrüder Späth in 1928. It was later modified by Hugo Mayer and in 1978 by the Oberlinger company.

Technical data
Number of stops per division
- Hauptwerk11
- Schwellwerk8
- Brustwerk8
- Pedal8
Total number of stops35
Key actionElectrical
Stop actionElectrical
Windchest(s)Cone chests

Specification
Hauptwerk: Hohlpfeife 16', Principal 8', Rohrflöte 8', Oktave 4', Spitzflöte 4', Quinte 2 2/3', Waldflöte 2', Mixtur 5 fach, Cymbel 4 fach, Fagott 16', Trompete 8'.
Schwellwerk: Principal 8', Gedackt 8', Salicional 8', Principal 4', Nachthorn 4', Oktave 2', Mixtur 5 fach, Schalmey 8', Tremulant.
Brustwerk: Gedeckt 8', Quintatön 8', Prästant 4', Blockflöte 4', Principal 2', Sesquialter 2 fach, Scharff 4 fach, Krummhorn 8', Tremulant.
Pedal: Principal 16', Subbaß 16', Oktavbaß 8', Gedackt 8', Choralbaß 4', Pedalmixtur 4 fach, Posaune 16', Clairon 4'.
Couplers: Hauptwerk - Schwellwerk, Hauptwerk - Brustwerk, Schwellwerk - Brustwerk, Pedal - Hauptwerk, Pedal - Schwellwerk, Pedal - Brustwerk.
Accessories: 2 freie Kombinationen.

Other specifications
Different specifications The original specification was:
I. Manual: Bordun 16', Prinzipal 8', Gedeckt 8', Flöte Major 8', Dolce 8', Salizional 8', Praestant 4', Rohrflöte 4', Mixtur 3-4 fach, Trompete 8'.
II. Manual: Lieblich Gedeckt 16', Geigenprinzipal 8', Viola di Gamba 8', Nachthorn 8', Konzertflöte 8', Quintatön 8', Aeoline 8', Vox Coelestis 8', Fugara 4', Klosterflöte 4', Quint 2 2/3', Waldflöte 2', Terz 1 3/5', Kornett 3-5 fach, Oboe 8', Krummhorn 8', Tremulant.
Pedal: Prinzipalbaß 16', Violonbaß 16', Subbas 16', Zartbaß 16', Oktavbaß 8', Cellobaß 8', Posaune 16'.
Koppeln: I. Manual - II. Manual, Unteroktav I. Manual - II. Manual, Oberoktav I. Manual - II. Manual, Pedal - I. Manual, Oberoktav Pedal - I. Manual, Pedal - II. Manual, Oberoktav Pedal - II. Manual.
Spielhilfen: 1 freie Kombination, 3 feste Kombinationen (p - mf - tutti), Registerschweller, Zungen ab, Pianopedal.
Literature
  • Neue Orgeln : Orgel in der Dreifaltigkeitskirche zu Wiebelskirchen. - In: Musik und Kirche, Vierter Jahrgang 1932.
  • Orgeln in Rheinland-Pfalz und im Saarland / Matthias Thömmes. - Trier : Paulinus-Verlag, 1981.
