Ausführliche Beschreibung der vorgewählten Orgel
Bild: Fabian Gottschalk
Auerbach in der Oberpfalz, Deutschland (Bayern) - Katholische Stadtpfarrkirche Sankt Johannes
Gemeinde: Auerbach in der Oberpfalz
Region:Oberpfalz
Adresse: Oberer Marktplatz 11, 91275, Auerbach in der Oberpfalz
Website: https://www.pfarrei-auerbach.de/
Beschreibung nr.: 2020388.
Gebaut von: G.F. Steinmeyer und Co. (1971) - Opus 2252

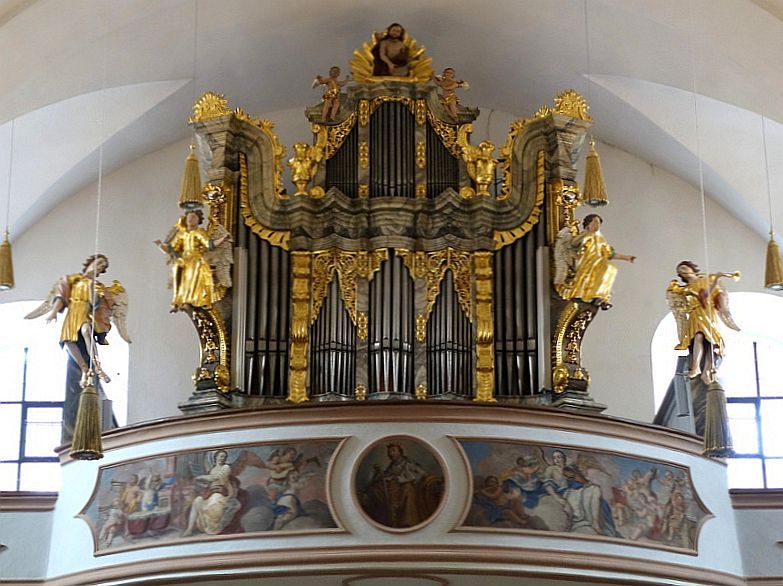

Die Orgel enthält älteren Material: Organ case aus 1755 von Konrad Brandenstein
The organ in the Pfarrkirche Sankt Johannes in Auerbach in der Oberpfalz was built in 1971 by the company Steinmeyer. The organ case is much older: it dates from 1755, and was constructed by Johann Konrad Brandenstein. He built a new organ for the church with twenty (actual: seventeen) stops. There are two sources for a specification of this organ, but both are dating from many years after the construction (1845 and 1899). This instrument was replaced in 1903 by Josef Bittner, but because there were many problems with the action of this organ, a new organ was already built in 1925 as opus 1411 by Steinmeyer. This work had pneumatic action and 'Taschenladen'.
Technische Daten
Disposition

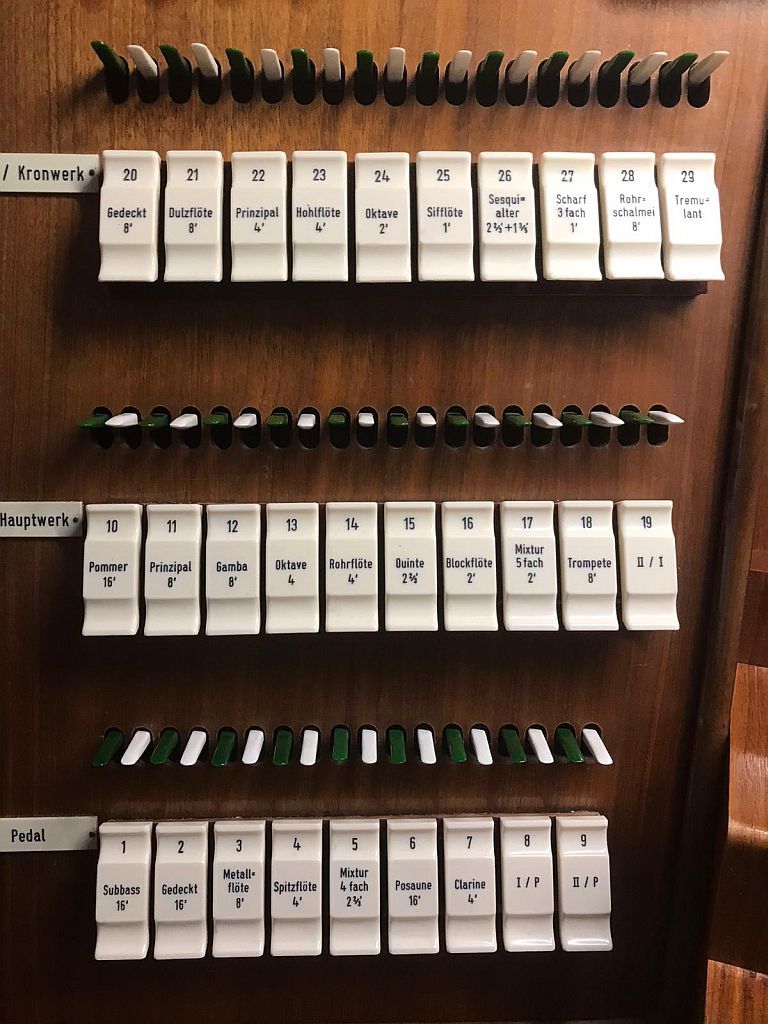

Hauptwerk (C-g'''): Pommer 16', Prinzipal 8', Gamba 8', Oktave 4', Rohrflöte 4', Quinte 2 2/3', Blockflöte 2', Mixtur 5 fach (2'), Trompete 8'.
Kronwerk (C-g'''): Gedeckt 8', Dulzflöte 8', Prinzipal 4', Hohlflöte 4', Oktave 2', Sifflöte 1', Sesquialter 2 fach, Scharf 3 fach (1'), Rohrschalmei 8', Tremulant.
Pedal (C-f'): Subbass 16', Gedeckt 16', Metallflöte 8', Spitzflöte 4', Mixtur 4 fach (2 2/3'), Posaune 16', Clarine 4'.
Koppeln: Hauptwerk - Kronwerk, Pedal - Hauptwerk, Pedal - Kronwerk.
Nebenregister und Spielhilfen: Tutti, 2 Vorregistrierungen, Zungeneinzelabsteller.
Übrige Quellen
Bild: Fabian Gottschalk
Auerbach in der Oberpfalz, Deutschland (Bayern) - Katholische Stadtpfarrkirche Sankt Johannes
Gemeinde: Auerbach in der Oberpfalz
Region:Oberpfalz
Adresse: Oberer Marktplatz 11, 91275, Auerbach in der Oberpfalz
Website: https://www.pfarrei-auerbach.de/
Beschreibung nr.: 2020388.
Gebaut von: G.F. Steinmeyer und Co. (1971) - Opus 2252
Die Orgel enthält älteren Material: Organ case aus 1755 von Konrad Brandenstein
Jahr | Orgelbauer | Opus | Aktivität | 1755 | Konrad Brandenstein | Neubau | 1903 | Josef Franz Bittner | Neubau im alten Gehäuse | 1925 | G.F. Steinmeyer und Co. | 1411 | Neubau im alten Gehäuse | 1971 | G.F. Steinmeyer und Co. | 2252 | Neubau im alten Gehäuse |
The organ in the Pfarrkirche Sankt Johannes in Auerbach in der Oberpfalz was built in 1971 by the company Steinmeyer. The organ case is much older: it dates from 1755, and was constructed by Johann Konrad Brandenstein. He built a new organ for the church with twenty (actual: seventeen) stops. There are two sources for a specification of this organ, but both are dating from many years after the construction (1845 and 1899). This instrument was replaced in 1903 by Josef Bittner, but because there were many problems with the action of this organ, a new organ was already built in 1925 as opus 1411 by Steinmeyer. This work had pneumatic action and 'Taschenladen'.
Technische Daten
Anzahl Register pro Manual | |
- Hauptwerk | 9 |
- Kronwerk | 9 |
- Pedal | 7 |
Gesamtzahl der Stimmen | 25 |
Tastentraktur | Mechanical |
Registertraktur | Mechanical |
Windlade(n) | Slider chests |
Disposition
Hauptwerk (C-g'''): Pommer 16', Prinzipal 8', Gamba 8', Oktave 4', Rohrflöte 4', Quinte 2 2/3', Blockflöte 2', Mixtur 5 fach (2'), Trompete 8'.
Kronwerk (C-g'''): Gedeckt 8', Dulzflöte 8', Prinzipal 4', Hohlflöte 4', Oktave 2', Sifflöte 1', Sesquialter 2 fach, Scharf 3 fach (1'), Rohrschalmei 8', Tremulant.
Pedal (C-f'): Subbass 16', Gedeckt 16', Metallflöte 8', Spitzflöte 4', Mixtur 4 fach (2 2/3'), Posaune 16', Clarine 4'.
Koppeln: Hauptwerk - Kronwerk, Pedal - Hauptwerk, Pedal - Kronwerk.
Nebenregister und Spielhilfen: Tutti, 2 Vorregistrierungen, Zungeneinzelabsteller.
Übrige dispositiondaten | |
---|---|
Mehrere dispositionen |
|
Literatur |
Zur Geschichte der Auerbacher Orgeln / Hermann Fischer, Theodor Wohnhaas. |
Weblinks |
https://pfarrei-auerbach.de/team/organisten |
- Jörg R. Becker
|
|
|
