Description complète d'orgue sélectionné
Photo: Rinus Pannekoek
Sydney, Australia (New South Wales) - Saint James' Anglican Church, King Street
Commune: Sydney
Adresse: 173 King Street, 2000, Sydney NSW
Site Web: http://sjks.org.au/
Description no.: 2061283.
Bâti par: John Gray (1827)
To be demolished (2020)
Données techniques
Composition
Great Organ (C-c''''): Quintaton 16', Open Diapason I 8', Open Diapason II 8', Hohl Flute 8', Stopped Diapason 8', Principal 4', Harmonic Flute 4', Spitz Flute 4', Twelfth 2 2/3', Fifteenth 2', Mixture 3 ranks, Plein Jeu 4 ranks, Trumpet 8', Clarion 4'.
Choir Organ (C-c''''): Bourdon 16', Stopped Diapason 8', Dulciana 8', Gemshorn 4', Nason Flute 4', Flute Nazard 2 2/3', Gemshorn 2', Octavin 1', Quartane 2 ranks, Clarinet 8', Tremulant, Trumpet 8', Clarion 4', Trompette Militaire 8' - high pressure.
Swell Ogan (C-c''''): Open Diapason 8', Gedeckt 8', Viole da Gamba 8', Voix Celeste 8', Geigen Principal 4', Lieblich Flute 4', Doublette 2', Sesquialtera 2 ranks, Plein Jeu 4 ranks, Contra Fagotto 16', Horn 8', Oboe 8', Clarion 4', Tremulant.
Positive Organ (floating) (C-c''''): Gedeckt 8', Chimney Flute 4', Nazard 2 2/3', Principal 2', Piccolo 2', Tierce 1 3/5', Larigot 1 1/3', Cymbale 2 ranks, Krumhoorn 8'.
Pedal Organ (C-g'): Resultant Bass 32', Open Bass 16', Bourdon 16', Violone 16', Salicional 16', Quint 10 2/3', Principal 8', Flute 8', Fifteenth 4', Octave Flute 4', Nachthorn 2', Mixture 4 ranks, Contra Posaune 16', Posaune 16', Krummhorn 8', Clarion 4', Krummhorn 4'.
Autres: Cymbalstern.
Accouplements: Choir to Great, Swell to Great, Swell to Great Octave, Swell to Great Suboctave, Positive to Great, Swell to Choir, Swell to Choir Octave, Swell to Choir Suboctave, Positive to Choir, Great to Pedal, Choir to Pedal, Swell to Pedal, Positive to Pedal, Swell Octave, Swell Suboctave, Swell Unison Off.
Jouer conseils: 256 levels of general memory, 8 levels of departmental memory, 7 pistons to Great Organ, 7 pistons to Choir Organ, 7 pistons to Swell Organ, 7 toe pistons to Pedal Organ, 15 general pistons.
Photo: Rinus Pannekoek
Sydney, Australia (New South Wales) - Saint James' Anglican Church, King Street
Commune: Sydney
Adresse: 173 King Street, 2000, Sydney NSW
Site Web: http://sjks.org.au/
Description no.: 2061283.
Bâti par: John Gray (1827)
To be demolished (2020)
Année | Facteur | Opus | Activité | 1827 | John Gray | orgue neuf | 1870 | William Davidson | expansion | 1901 | William Davidson | conversion | 1971 | Norman & Beard Hill | restauration |

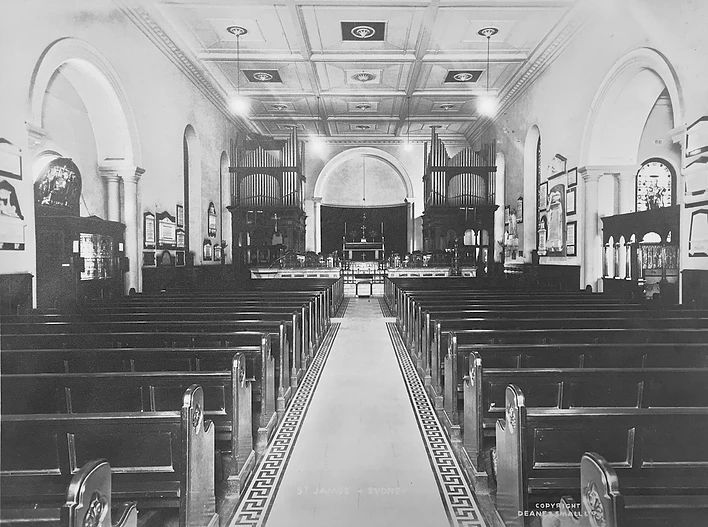

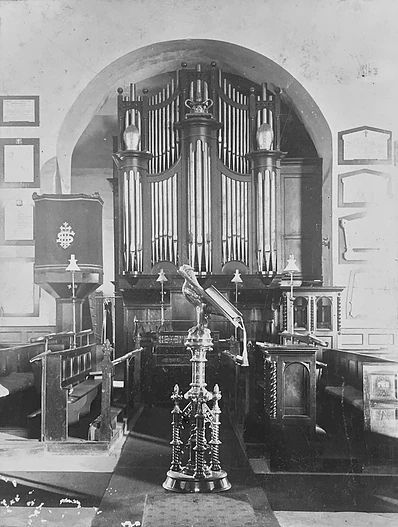

- De kerk van Saint James aan King Street in Sydney is gebouwd in 1823 en werd gewijd in februari 1824. Het gebouw werd ontworpen door Francis Greenway. Het orgel werd gebouwd in Londen door John Gray, en is op 7 oktober 1827 in gebruik genomen. Het stond opgesteld aan de zuidzijde van de kerk. William Davidson breidde het instrument uit in 1870. In 1901 is het omgebouwd door dezelfde firma. Het interieur van de kerk werd gewijzigd, en het orgel is opgebouwd in twee kassen aan weerszijden van het koor. De tractuur werd electropneumatisch. Het orgel bevatte vrijwel alleen nog maar materiaal van Davidson. In 1970-1971 voerde de firma Hill, Norman & Beard een restauratie uit. Er kwam een nieuwe speeltafel met een nieuwe electrische tractuur. Het orgel werd ook aanzienlijk uitgebreid naar 67 registers, met onder andere een nieuw Positive en een Trompette Militaire.
- In 2018 is besloten een nieuw orgel te laten bouwen door de firma Dobson Pipe Organs. Het instrument zal naar verwachting eind 2020 zijn voltooid.
Données techniques
Nombre de registres par manuel | |
- Great Organ | 14 |
- Choir Organ | 13 |
- Swell Ogan | 13 |
- Positive Organ (floating) | 9 |
- Pedal Organ | 17 |
Nombre de jeux total | 66 |
Transmission des clés | Electrical |
Transmission des jeux | Electrical |
Sommier(s) | Slider chests |
Composition
Great Organ (C-c''''): Quintaton 16', Open Diapason I 8', Open Diapason II 8', Hohl Flute 8', Stopped Diapason 8', Principal 4', Harmonic Flute 4', Spitz Flute 4', Twelfth 2 2/3', Fifteenth 2', Mixture 3 ranks, Plein Jeu 4 ranks, Trumpet 8', Clarion 4'.
Choir Organ (C-c''''): Bourdon 16', Stopped Diapason 8', Dulciana 8', Gemshorn 4', Nason Flute 4', Flute Nazard 2 2/3', Gemshorn 2', Octavin 1', Quartane 2 ranks, Clarinet 8', Tremulant, Trumpet 8', Clarion 4', Trompette Militaire 8' - high pressure.
Swell Ogan (C-c''''): Open Diapason 8', Gedeckt 8', Viole da Gamba 8', Voix Celeste 8', Geigen Principal 4', Lieblich Flute 4', Doublette 2', Sesquialtera 2 ranks, Plein Jeu 4 ranks, Contra Fagotto 16', Horn 8', Oboe 8', Clarion 4', Tremulant.
Positive Organ (floating) (C-c''''): Gedeckt 8', Chimney Flute 4', Nazard 2 2/3', Principal 2', Piccolo 2', Tierce 1 3/5', Larigot 1 1/3', Cymbale 2 ranks, Krumhoorn 8'.
Pedal Organ (C-g'): Resultant Bass 32', Open Bass 16', Bourdon 16', Violone 16', Salicional 16', Quint 10 2/3', Principal 8', Flute 8', Fifteenth 4', Octave Flute 4', Nachthorn 2', Mixture 4 ranks, Contra Posaune 16', Posaune 16', Krummhorn 8', Clarion 4', Krummhorn 4'.
Autres: Cymbalstern.
Accouplements: Choir to Great, Swell to Great, Swell to Great Octave, Swell to Great Suboctave, Positive to Great, Swell to Choir, Swell to Choir Octave, Swell to Choir Suboctave, Positive to Choir, Great to Pedal, Choir to Pedal, Swell to Pedal, Positive to Pedal, Swell Octave, Swell Suboctave, Swell Unison Off.
Jouer conseils: 256 levels of general memory, 8 levels of departmental memory, 7 pistons to Great Organ, 7 pistons to Choir Organ, 7 pistons to Swell Organ, 7 toe pistons to Pedal Organ, 15 general pistons.
Références |
Historic Organs of Australia : October 31 - November 13, 2017 14 Days with J. Michael Barone. - [S.l.] : Pipedreams, 2017. |
Lièns |
https://www.stjamesfoundationorganappeal.com.au/ https://en.wikipedia.org/wiki/St_James%27_Church,_Sydney#Organ https://www.sydneyorgan.com/StJamesKingSt.html |
|
|
|
|
