Complete description of the selected organ
Photo: Wolfgang Reich

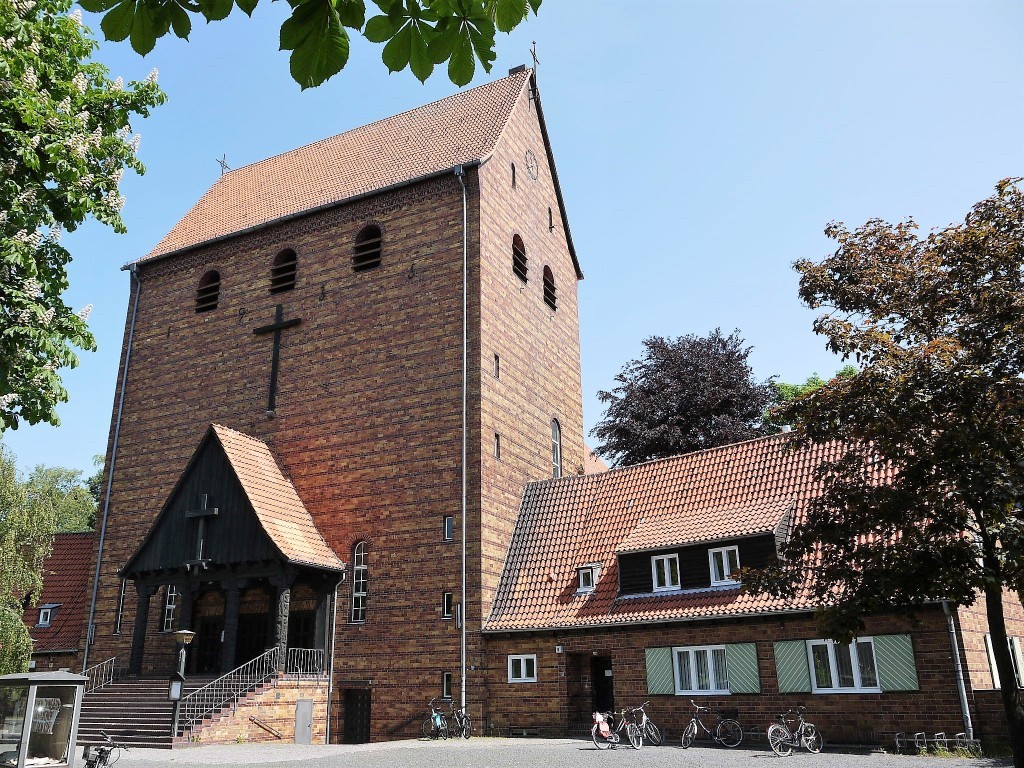

Berlin, Deutschland (Berlin) - Johannes-Kirche (Frohnau)
Municipal: Berlin
Address: Zeltinger Platz 18, 13465, Berlin
Website: http://www.ekg-frohnau.de/
Description nr.: 2017552.

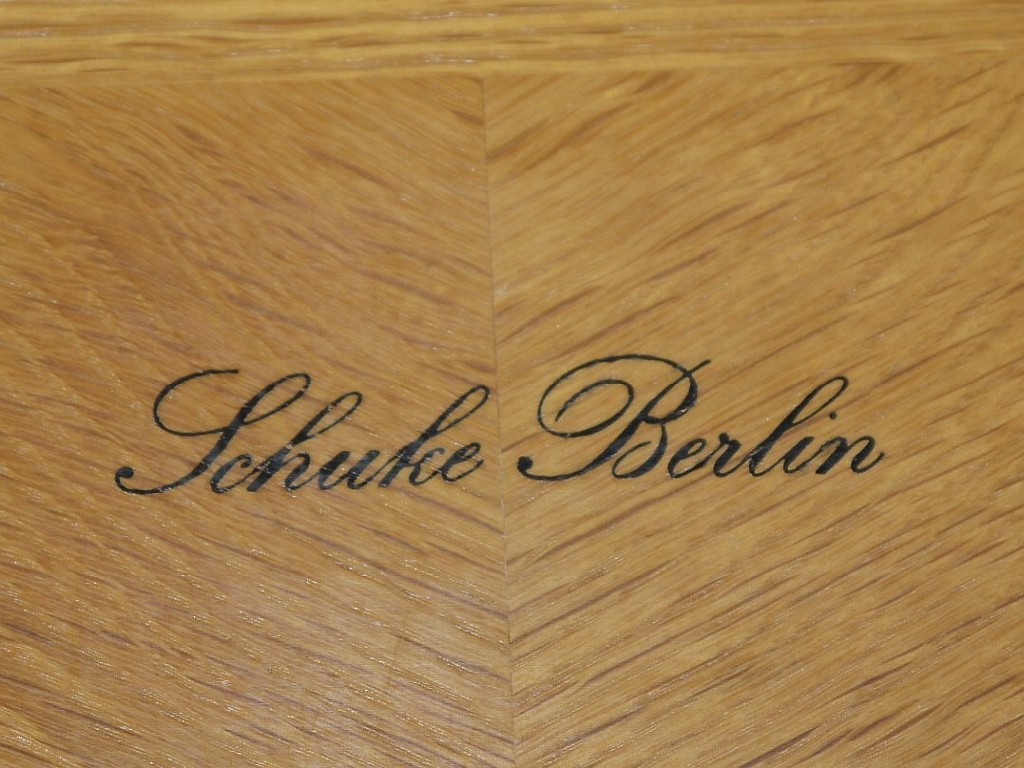

Built by: Alexander Schuke (1936) - opus 156
Technical data
Specification

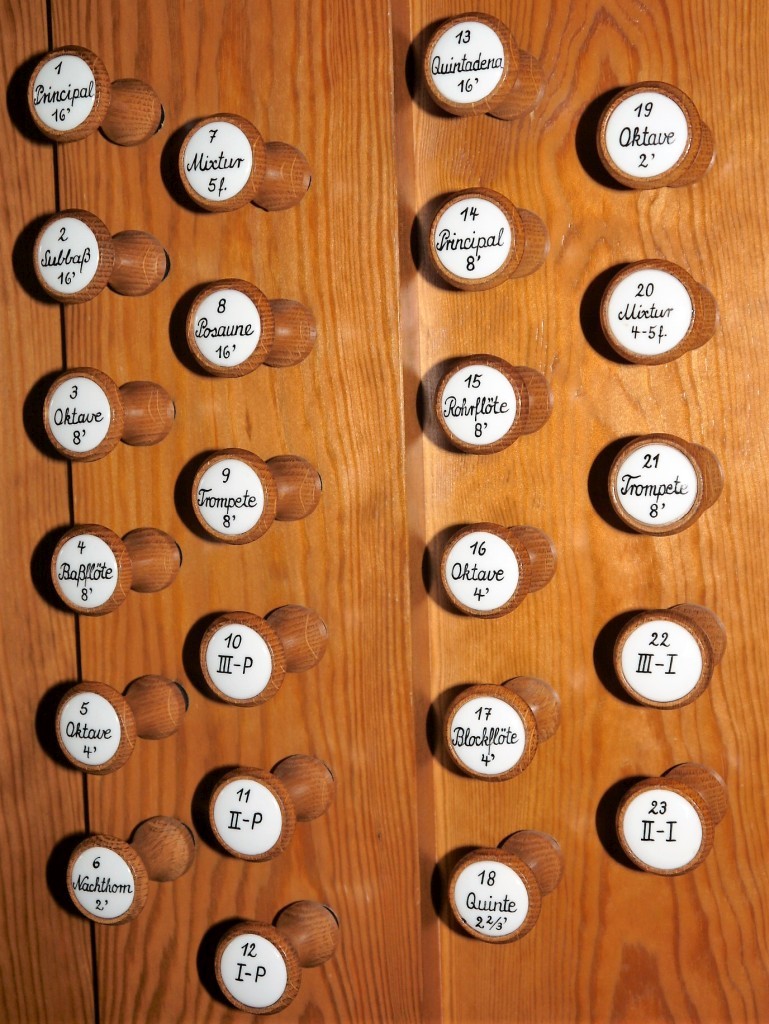

Hauptwerk (C-g'''): Quintadena 16', Principal 8', Rohrflöte 8', Oktave 4', Blockflöte 4', Quinte 2 2/3', Oktave 2', Mixtur 4-5 fach (1 1/3'), Trompete 8'.

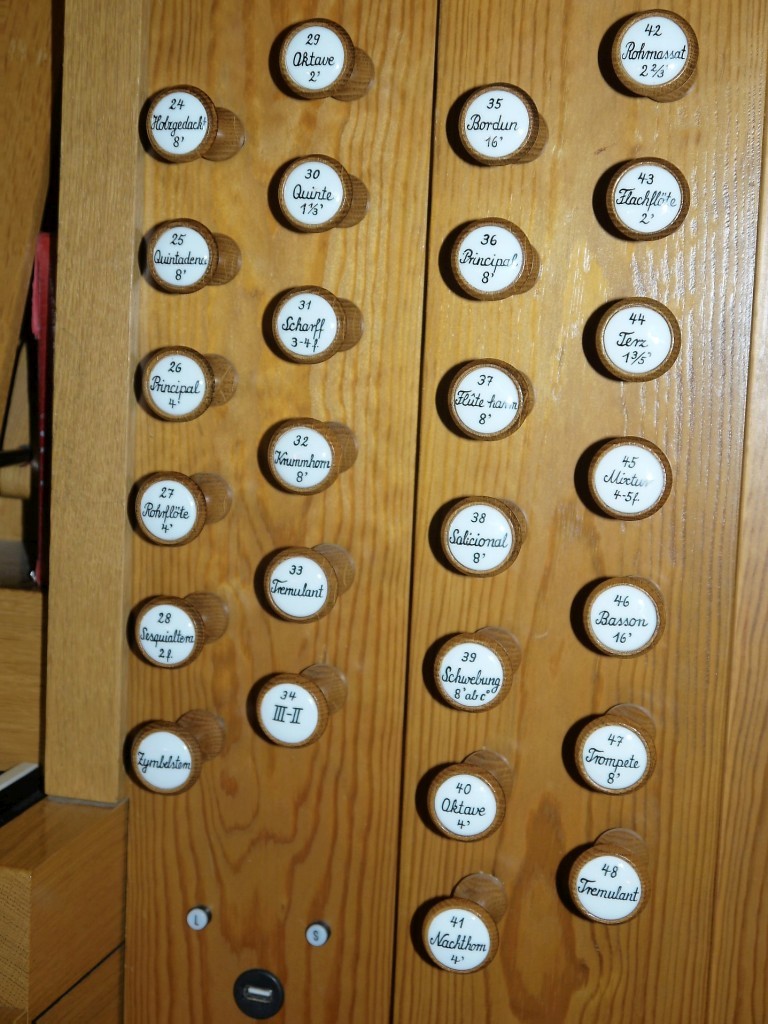

Brustwerk (C-g'''): Holzgedackt 8', Quintadena 8', Principal 4', Rohrflöte 4', Oktave 2', Quinte 1 1/3', Sesquialtera 2 fach (2 2/3'), Scharff 3-4 fach, Krummhorn 8', Tremulant.
Oberwerk (Schwellwerk) (C-g'''): Bordun 16', Principal 8', Flûte Traverse 8', Salicional 8', Schwebung 8' (from c°), Oktave 4', Nachthorn 4', Rohrnassat 2 2/3', Flachflöte 2', Terz 1 3/5', Mixtur 4-5 fach (2 2/3'), Basson 16', Trompete 8', Tremulant.
Pedal (C-f'): Principal 16', Subbaß 16', Oktave 8', Baßflöte 8', Oktave 4', Nachthorn 2', Mixtur 5 fach (2'), Posaune 16', Trompete 8'.
Other stops: Zymbelstern.
Couplers: Hauptwerk - Brustwerk, Hauptwerk - Oberwerk, Brustwerk - Oberwerk, Pedal - Hauptwerk, Pedal - Brustwerk, Pedal - Oberwerk.

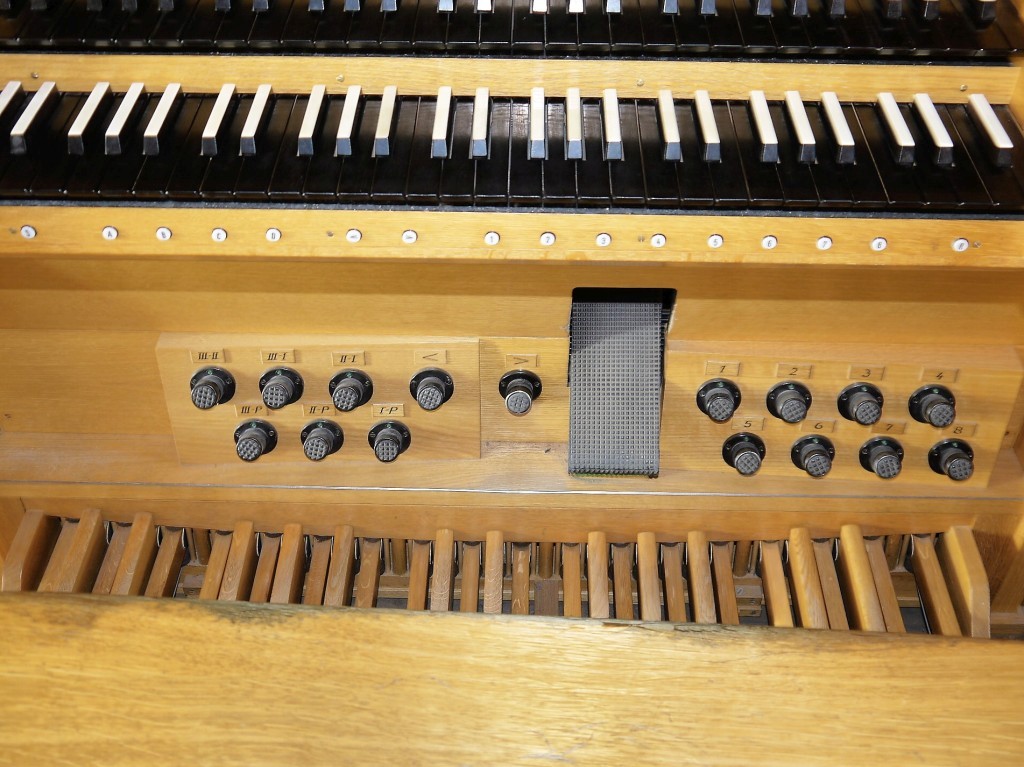

Accessories: 8 Setzer-Kombinationen, Zungen-Einzelabsteller.
Photo: Wolfgang Reich
Berlin, Deutschland (Berlin) - Johannes-Kirche (Frohnau)
Municipal: Berlin
Address: Zeltinger Platz 18, 13465, Berlin
Website: http://www.ekg-frohnau.de/
Description nr.: 2017552.
Built by: Alexander Schuke (1936) - opus 156
| Year | Builder | Opus | Activity | 1936 | Alexander Schuke | 156 | new organ | 1991 | Karl Schuke | rebuild |

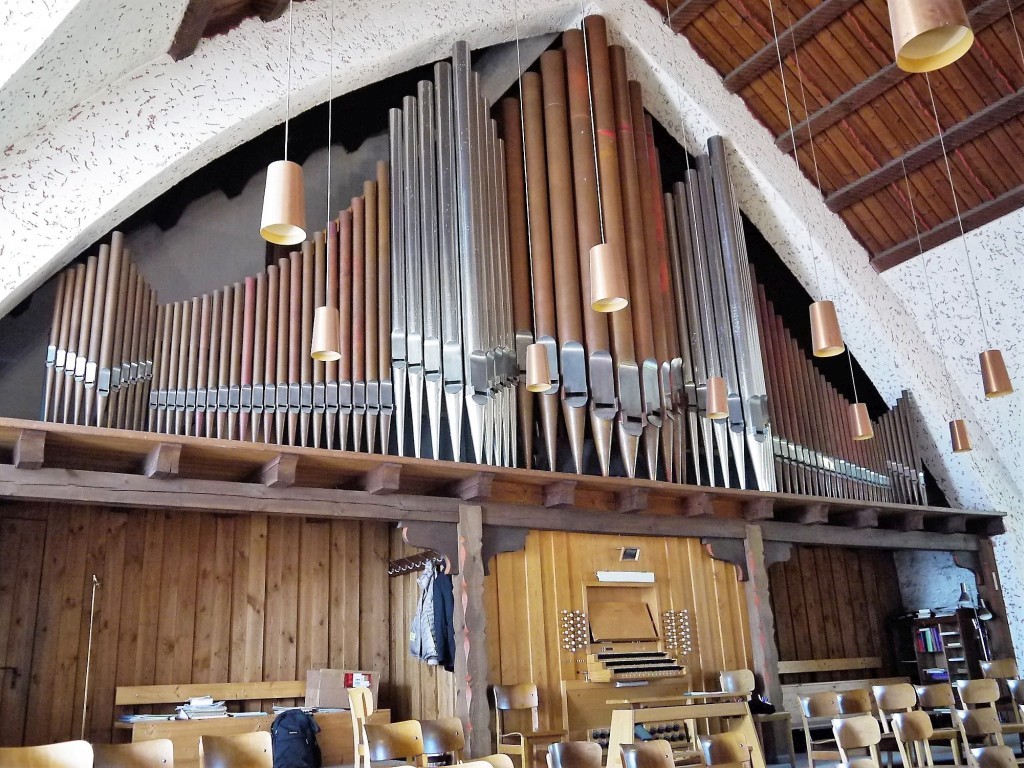

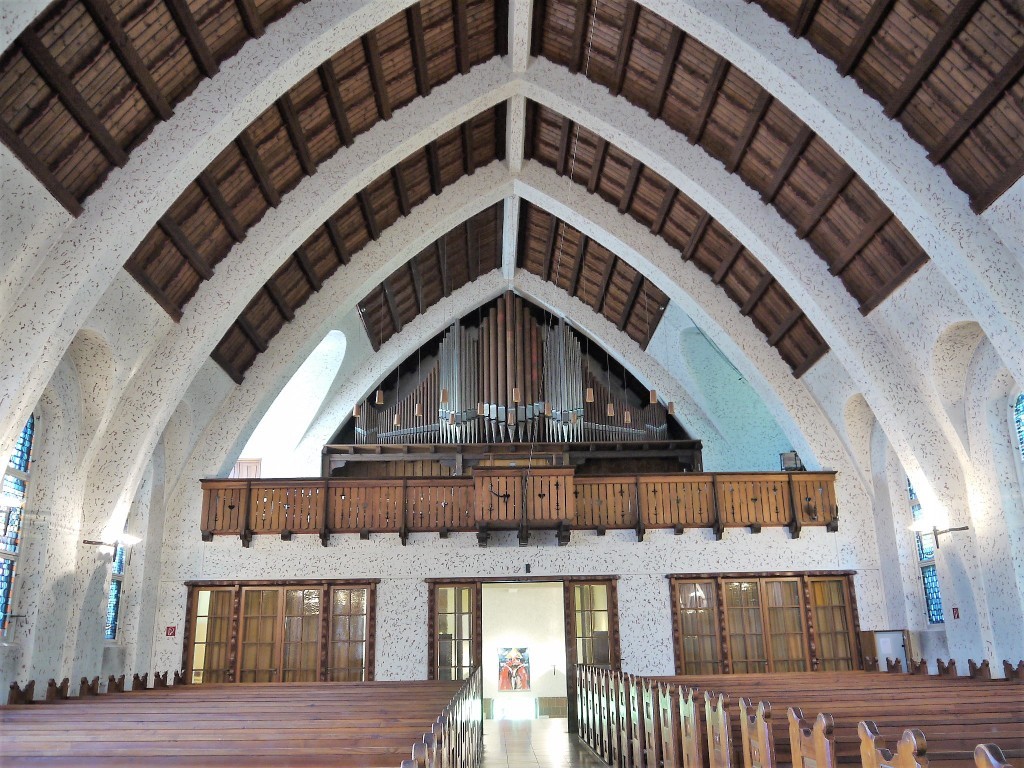

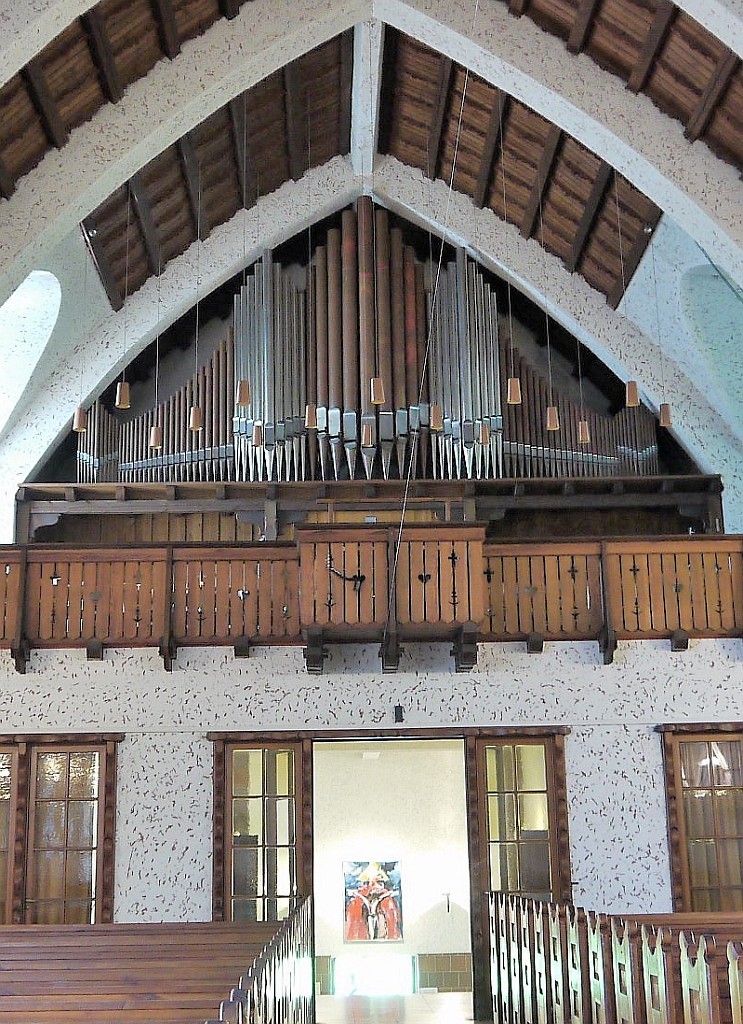

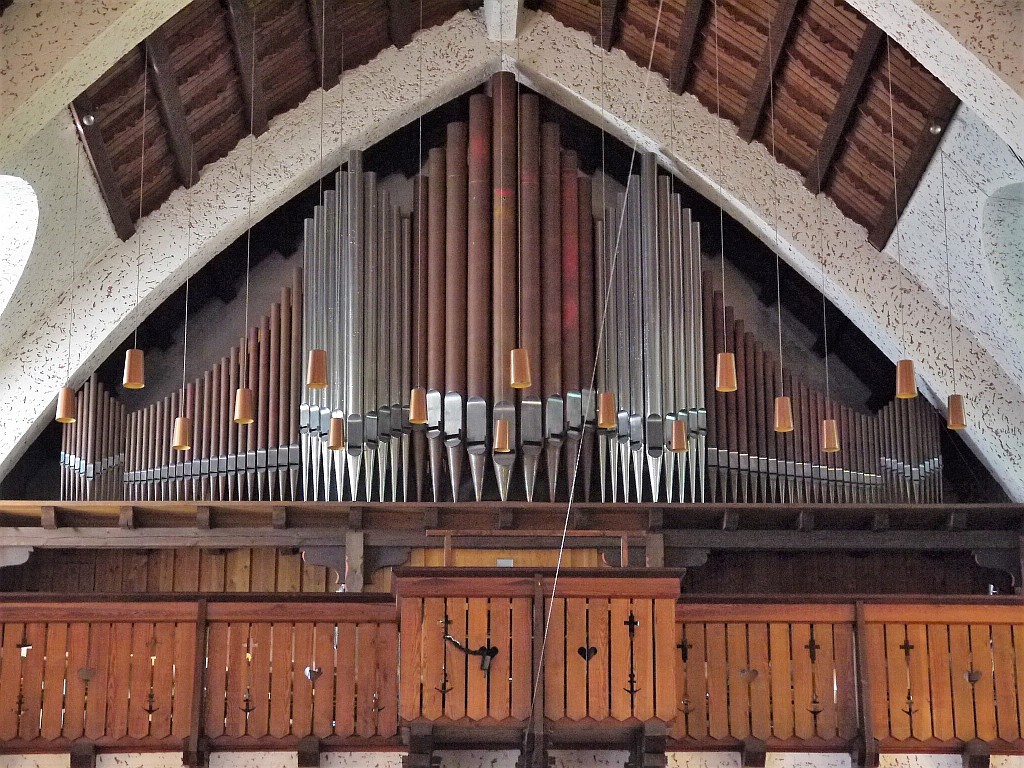

- In 1936 Alexander Schuke built a new three manual organ for the Johannes-Kirche in Berlin-Frohnau. The facade was designed by the architects Walter and Johannes Krüger. The instrument was inspected on January 8, 1937. It has been kept unaltered since then.

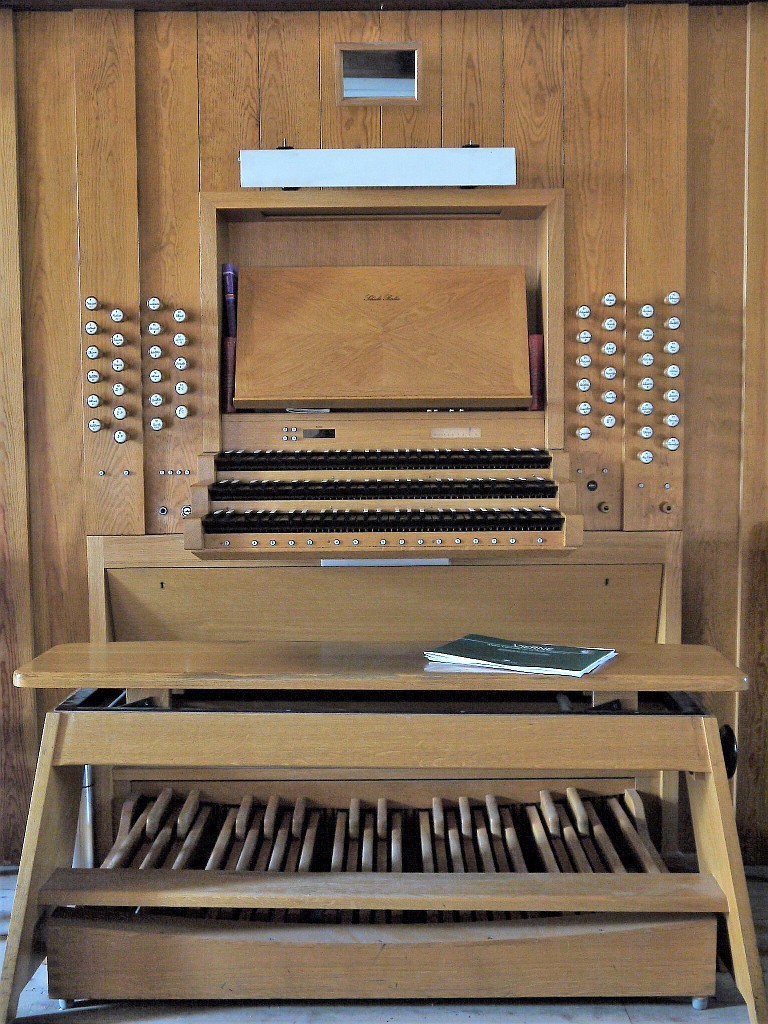

- In 1990-1991, the organ has been rebuilt by Karl Schuke. The Taschenladen were replaced by mechanical slider chests, and the key action would be made mechanically. The Crescendo-Walze has been removed and a modern Setzer Combination Action was installed. The were also some alterations to the stop list.
Technical data
| Number of stops per division | |
| - Hauptwerk | 9 |
| - Brustwerk | 9 |
| - Oberwerk (Schwellwerk) | 13 |
| - Pedal | 9 |
| Total number of stops | 40 |
| Key action | Electrical |
| Stop action | Electrical |
| Windchest(s) | Taschenladen |
Specification
Hauptwerk (C-g'''): Quintadena 16', Principal 8', Rohrflöte 8', Oktave 4', Blockflöte 4', Quinte 2 2/3', Oktave 2', Mixtur 4-5 fach (1 1/3'), Trompete 8'.
Brustwerk (C-g'''): Holzgedackt 8', Quintadena 8', Principal 4', Rohrflöte 4', Oktave 2', Quinte 1 1/3', Sesquialtera 2 fach (2 2/3'), Scharff 3-4 fach, Krummhorn 8', Tremulant.
Oberwerk (Schwellwerk) (C-g'''): Bordun 16', Principal 8', Flûte Traverse 8', Salicional 8', Schwebung 8' (from c°), Oktave 4', Nachthorn 4', Rohrnassat 2 2/3', Flachflöte 2', Terz 1 3/5', Mixtur 4-5 fach (2 2/3'), Basson 16', Trompete 8', Tremulant.
Pedal (C-f'): Principal 16', Subbaß 16', Oktave 8', Baßflöte 8', Oktave 4', Nachthorn 2', Mixtur 5 fach (2'), Posaune 16', Trompete 8'.
Other stops: Zymbelstern.
Couplers: Hauptwerk - Brustwerk, Hauptwerk - Oberwerk, Brustwerk - Oberwerk, Pedal - Hauptwerk, Pedal - Brustwerk, Pedal - Oberwerk.
Accessories: 8 Setzer-Kombinationen, Zungen-Einzelabsteller.
| Other specifications | |
|---|---|
| Different specifications |
The original specification was: Hauptwerk: Quintadena 16', Principal 8', Rohrflöte 8', Oktave 4', Blockflöte 4', Quinte 2 2/3', Oktave 2', Scharff 5 fach (1 1/3'), Trompete 8'. Brustwerk: Gedackt 8', Quintadena 8', Principal 4', Rohrflöte 4', Rohrnassat 2 2/3', Principal 2', Oktävlein 1', Tertian 2 fach (1 3/5'+1 1/3'), Cymbel 3 fach (1/4'+1/6'+1/8'), Rankett 16' (prepared), Krummhorn 8', Tremulant. Oberwerk (Schwellwerk): Gedackt 16', Principal 8', Singend Gedackt 8', Salicional 8', Principal 4', Nachthorn 4', Waldflöte 2', Mixtur 4 fach (2 2/3'), Cymbel 3 fach (1/2'), Fagott 16' (prepared), Trompete 8', Schalmei 4', Tremulant. Pedal: Principal 16', Subbaß 16', Oktave 8', Gemshorn 8', Oktave 4', Schweizer-Pfeife 2', Mixtur 4 fach (2'), Posaune 16', Trompete 8', Trompete 4' (transmission). Couplers: Hauptwerk - Brustwerk, Hauptwerk - Oberwerk, Brustwerk - Oberwerk, Pedal - Hauptwerk, Pedal - Brustwerk, Pedal - Oberwerk, Generalkoppeln. Accessories: 4 freie Kombinationen, Zungen-Einzelabsteller, Walze. |
| Literature |
500 Jahre Orgeln in Berliner Evangelischen Kirchen / Berthold Schwarz, Uwe Pape. - Berlin : Pape Verlag, 1991. |
| Links |
http://www.ekg-frohnau.de/page/604/unsere-orgel |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
