Description complète d'orgue sélectionné

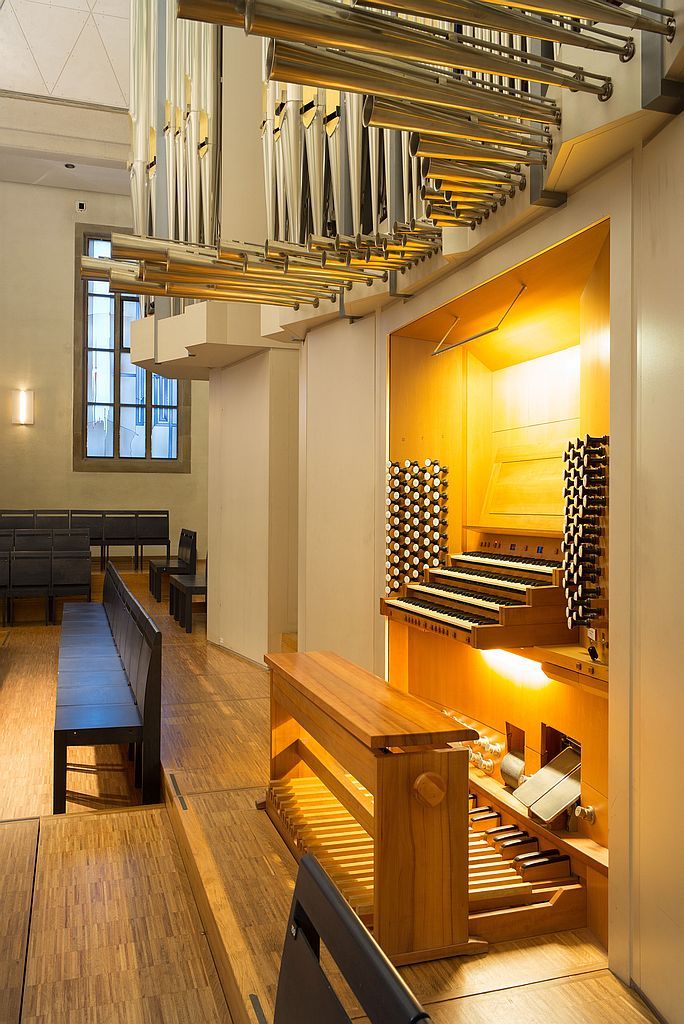

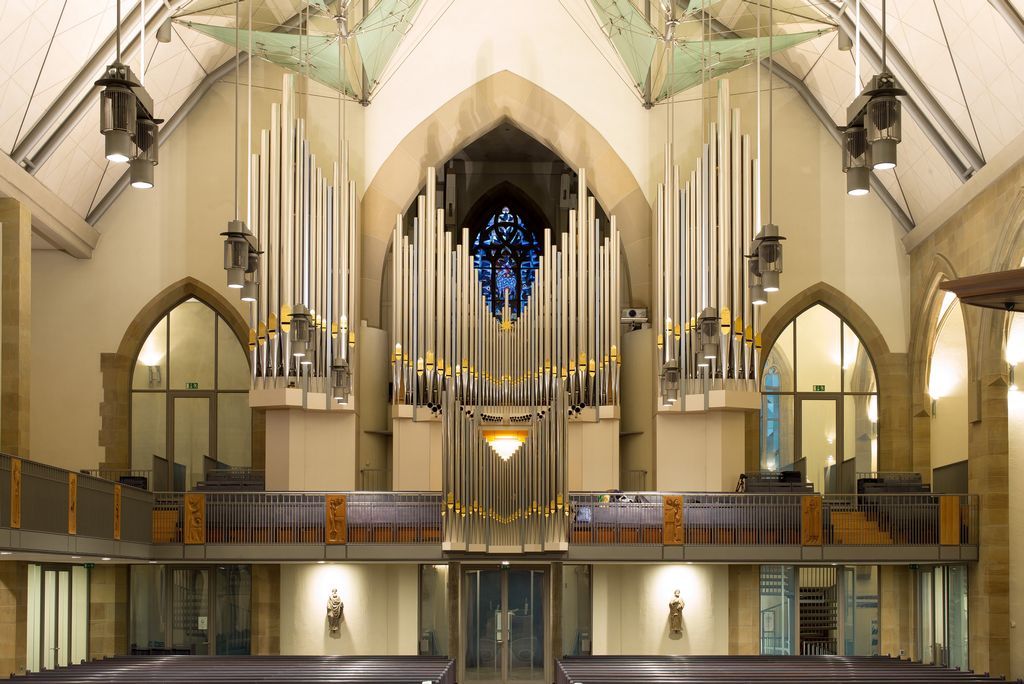

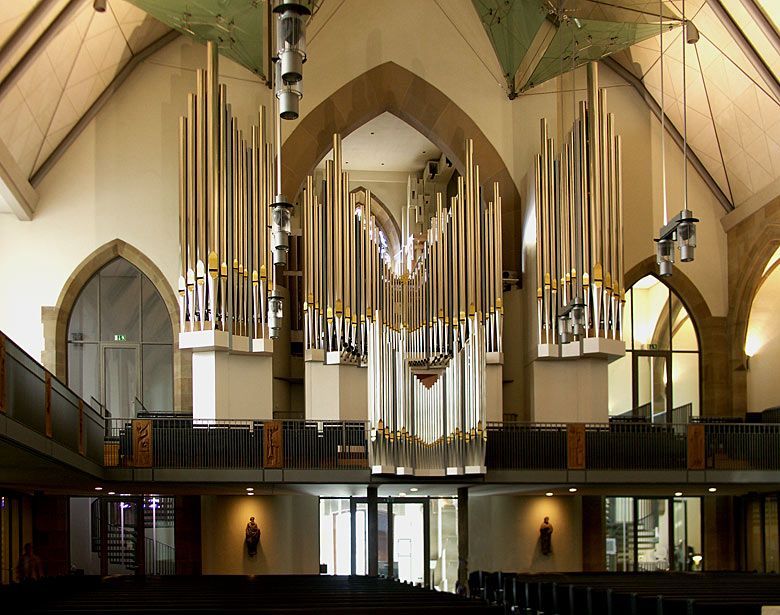

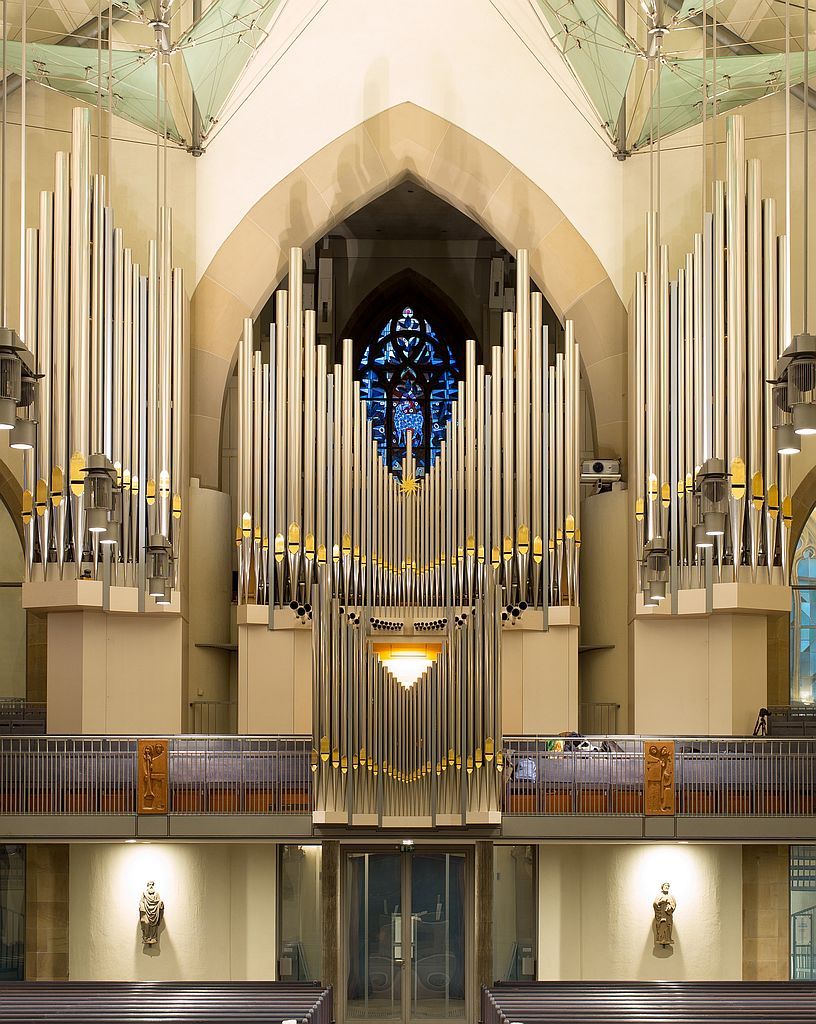

Photo: René Troost
Stuttgart, Deutschland (Baden-Württemberg) - Evangelische Stiftskirche "Heilig Kreuz"
Commune: Stuttgart
Région:Württemberg
Adresse: Stiftstraße 12, 70173, Stuttgart
Site Web: https://www.stiftskirche.de/
Description no.: 2011411.
Bâti par: Mühleisen Orgelbau (2004)
L'orgue comprend le parent le matériel: Pipes and windchest de 1967 de E.F. Walcker & Cie.
In 2003-2004 the Mühleisen company built a large new organ for the Stiftskirche in Stuttgart. During the construction, some stops were taken over in whole or partly from the previous organ, an instrument of the firm Walcker from 1967 (opus 4784, 34 stops, 3 manuals and pedal). The windchest of the Großpedal was also taken over from Walcker. The new organ was inaugurated on April 8, 2004.
Données techniques
Composition
Hauptwerk (C-a'''): Principal 16', Bordun 16', Principal 8', Flûte Harmonique 8', Gemshorn 8', Rohrflöte 8', Viola da Gamba 8', Octave 4', Tibia 4', Quinte 2 2/3', Octave 2', Mixtur Maior 4-5 fach (2 2/3'), Mixtur Minor 5 fach (2'), Cornett 5 fach (8'), Trompete 16', Trompete 8', Chamade 8', Zimbelstern.
Rückpositiv (C-a'''): Principal 8', Bifara 8' (from g°), Gedeckt 8', Quintade 8' - 1958, Octave 4', Rohrflöte 4', Octave 2', Flöte 2', Quinte 1 1/3', Sesquialtera 2 fach, Scharff 4 fach (1 1/3'), Fagott 16', Trompete 8', Glockenspiel (c-d'), Tremulant.
Schwellpositiv (C-a'''): Salicional 16', Principal 8', Concertflöte 8', Salicional 8', Unda Maris 8' (from c°), Bourdon 8', Principal 4', Traversflöte 4', Nasard 2 2/3', Waldflöte 2', Terz 1 3/5', Septime 1 1/7', Piccolo 1', Mixtur 4 fach (2'), Trompete 8', Clarinette 8', Vox Humana 8', Röhrenglocken (G-g'), Tremulant.
Schwellwerk (C-a'''): Lieblich Gedeckt 16', Geigenprincipal 8' - 1958, Holzflöte 8' - 1958, Lieblich Gedeckt 8', Gamba 8', Aeoline 8', Vox Coelestis 8' (from c°), Principal 4', Fugara 4', Flûte Octaviante 4', Flautino 2', Progressio Harmonica 2-6 fach (2 2/3'), Tuba 16', Trompette Harmonique 8', Oboe 8', Clairon 4', Tremulant.
Pedal (C-g'): Principal 32' - 1958, Grand Bourdon 32' - 1958, Principal 16', Subbass 16' - 1958, Offenbass 16' - 1958, Harmonikabass 16', Octavbass 8', Bourdon 8', Violoncell 8', Quinte 5 1/3', Choralbass 4', Hintersatz 4 fach (2 2/3'), Kontraposaune 32' - 1958, Posaune 16', Fagott 16', Trompete 8', Clarine 4'.
Accouplements: Hauptwerk - Rückpositiv, Hauptwerk - Schwellpositiv, Hauptwerk - Schwellwerk, Rückpositiv - Schwellpositiv, Rückpositiv - Schwellwerk, Schwellpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellpositiv, Pedal - Schwellwerk, Hauptwerk - Schwellwerk 16', Schwellpositiv - Schwellwerk 16', Schwellpositiv 16', Schwellwerk 16', Schwellwerk 4', Pedal - Schwellwerk 4'.
Jouer conseils: Setzeranlage mit 30 Ebenen à 999 Kombinationen und Diskettenlaufwerk, Walze für Registercrescendo.
YouTube
Photo: René Troost
Stuttgart, Deutschland (Baden-Württemberg) - Evangelische Stiftskirche "Heilig Kreuz"
Commune: Stuttgart
Région:Württemberg
Adresse: Stiftstraße 12, 70173, Stuttgart
Site Web: https://www.stiftskirche.de/
Description no.: 2011411.
Bâti par: Mühleisen Orgelbau (2004)
L'orgue comprend le parent le matériel: Pipes and windchest de 1967 de E.F. Walcker & Cie.
In 2003-2004 the Mühleisen company built a large new organ for the Stiftskirche in Stuttgart. During the construction, some stops were taken over in whole or partly from the previous organ, an instrument of the firm Walcker from 1967 (opus 4784, 34 stops, 3 manuals and pedal). The windchest of the Großpedal was also taken over from Walcker. The new organ was inaugurated on April 8, 2004.
Données techniques
Nombre de registres par manuel | |
- Hauptwerk | 17 |
- Rückpositiv | 13 |
- Schwellpositiv | 17 |
- Schwellwerk | 16 |
- Pedal | 17 |
Nombre de jeux total | 80 |
Transmission des clés | Mechanical |
Transmission des jeux | Mechanisch-Electrisch |
Sommier(s) | Slider chests |
Composition
Hauptwerk (C-a'''): Principal 16', Bordun 16', Principal 8', Flûte Harmonique 8', Gemshorn 8', Rohrflöte 8', Viola da Gamba 8', Octave 4', Tibia 4', Quinte 2 2/3', Octave 2', Mixtur Maior 4-5 fach (2 2/3'), Mixtur Minor 5 fach (2'), Cornett 5 fach (8'), Trompete 16', Trompete 8', Chamade 8', Zimbelstern.
Rückpositiv (C-a'''): Principal 8', Bifara 8' (from g°), Gedeckt 8', Quintade 8' - 1958, Octave 4', Rohrflöte 4', Octave 2', Flöte 2', Quinte 1 1/3', Sesquialtera 2 fach, Scharff 4 fach (1 1/3'), Fagott 16', Trompete 8', Glockenspiel (c-d'), Tremulant.
Schwellpositiv (C-a'''): Salicional 16', Principal 8', Concertflöte 8', Salicional 8', Unda Maris 8' (from c°), Bourdon 8', Principal 4', Traversflöte 4', Nasard 2 2/3', Waldflöte 2', Terz 1 3/5', Septime 1 1/7', Piccolo 1', Mixtur 4 fach (2'), Trompete 8', Clarinette 8', Vox Humana 8', Röhrenglocken (G-g'), Tremulant.
Schwellwerk (C-a'''): Lieblich Gedeckt 16', Geigenprincipal 8' - 1958, Holzflöte 8' - 1958, Lieblich Gedeckt 8', Gamba 8', Aeoline 8', Vox Coelestis 8' (from c°), Principal 4', Fugara 4', Flûte Octaviante 4', Flautino 2', Progressio Harmonica 2-6 fach (2 2/3'), Tuba 16', Trompette Harmonique 8', Oboe 8', Clairon 4', Tremulant.
Pedal (C-g'): Principal 32' - 1958, Grand Bourdon 32' - 1958, Principal 16', Subbass 16' - 1958, Offenbass 16' - 1958, Harmonikabass 16', Octavbass 8', Bourdon 8', Violoncell 8', Quinte 5 1/3', Choralbass 4', Hintersatz 4 fach (2 2/3'), Kontraposaune 32' - 1958, Posaune 16', Fagott 16', Trompete 8', Clarine 4'.
Accouplements: Hauptwerk - Rückpositiv, Hauptwerk - Schwellpositiv, Hauptwerk - Schwellwerk, Rückpositiv - Schwellpositiv, Rückpositiv - Schwellwerk, Schwellpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellpositiv, Pedal - Schwellwerk, Hauptwerk - Schwellwerk 16', Schwellpositiv - Schwellwerk 16', Schwellpositiv 16', Schwellwerk 16', Schwellwerk 4', Pedal - Schwellwerk 4'.
Jouer conseils: Setzeranlage mit 30 Ebenen à 999 Kombinationen und Diskettenlaufwerk, Walze für Registercrescendo.
Références |
|
Enregistrements |
|
Lièns |
https://www.stiftsmusik-stuttgart.de/seiten/muehleisen-orgel.html https://orgelbau-muehleisen.de/de/projekt/evang-stiftskirche-stuttgart/ https://www.ann-helena.de/orgelinfo/muehleisen-orgel-stuttgart/ |
|
|
|
|
|
