Complete description of the selected organ

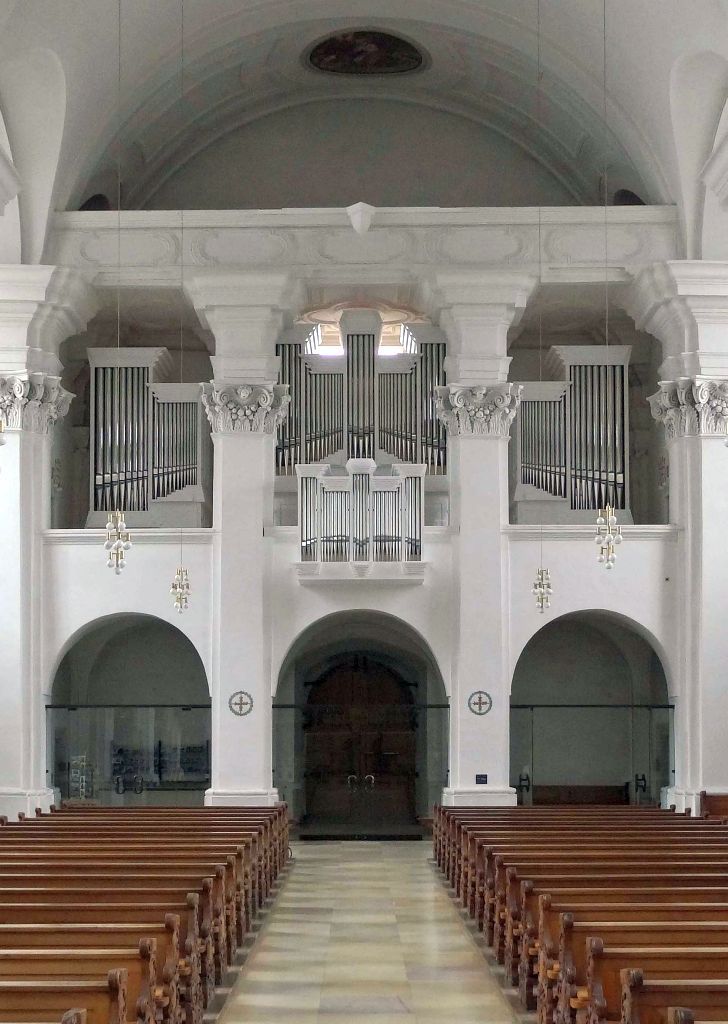

Photo: Jann Orgelbau
Weggental, Deutschland (Baden-Württemberg) - Wallfahrtskirche zur Schmerzhaften Mutter Gottes
Municipal: Rottenburg am Neckar
Region:Württemberg
Address: Wallf.-Kirche Weggental 2, 72108, Rottenburg am Neckar
Website: http://www.wallfahrtskirche-weggental.de/
http://www.katholische-kirche-rottenburg.de/
Description nr.: 2005690.
Built by: Thomas Jann (2014) - opus 285
Thomas Jann built a new organ for the Wallfahrtskirche in Weggental in 2014. It replaced an instrument from the company Gebr. Späth. Wolfram Rehfeldt was the construction consultant. The new organ was dedicated on December 14, 2014. The organ was played by the consultant, Wolfram Rehfeldt.
Technical data
Specification
Hauptwerk (C-g'''): Bordun 16', Prinzipal 8', Flauto 8', Oktave 4', Koppelflöte 4', Quinte 2 2/3', Superoktave 2', Terz 1 3/5', Mixtur 4 fach (1 1/3'), Trompete 8'.
Rückpositiv (C-g'''): Rohrgedeckt 8', Prinzipal 4', Traversflöte 4', Gemshorn 2', Larigot 1 1/3', Sesquialtera 2 fach (2 2/3'), Scharff 3 fach (1'), Dulzian 8', Tremulant.
Schwellwerk (C-g'''): Gedeckt 8', Salizional 8', Schwebung 8' (from A), Prästant 4', Rohrflöte 4', Mixtur 4 fach (2'), Trompete 8', Oboe 8', Tremulant.
Pedal (C-f'): Prinzipalbaß 16', Subbaß 16', Oktavbaß 8', Gedecktbaß 8', Posaunenbaß 16', Trompetenbaß 8'.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Hauptwerk - Schwellwerk Sub, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk, Pedal - Schwellwerk Super.
Accessories: 4000 Setzerkombinationen.
Photo: Jann Orgelbau
Weggental, Deutschland (Baden-Württemberg) - Wallfahrtskirche zur Schmerzhaften Mutter Gottes
Municipal: Rottenburg am Neckar
Region:Württemberg
Address: Wallf.-Kirche Weggental 2, 72108, Rottenburg am Neckar
Website: http://www.wallfahrtskirche-weggental.de/
http://www.katholische-kirche-rottenburg.de/
Description nr.: 2005690.
Built by: Thomas Jann (2014) - opus 285
Thomas Jann built a new organ for the Wallfahrtskirche in Weggental in 2014. It replaced an instrument from the company Gebr. Späth. Wolfram Rehfeldt was the construction consultant. The new organ was dedicated on December 14, 2014. The organ was played by the consultant, Wolfram Rehfeldt.
Technical data
| Number of stops per division | |
| - Hauptwerk | 10 |
| - Rückpositiv | 8 |
| - Schwellwerk | 8 |
| - Pedal | 6 |
| Total number of stops | 32 |
| Key action | Mechanical |
| Stop action | Electrical |
| Windchest(s) | Slider chests |
| Pitch | a' = 440 Hz |
| Temperament | Neidhard 1724 |
Specification
Hauptwerk (C-g'''): Bordun 16', Prinzipal 8', Flauto 8', Oktave 4', Koppelflöte 4', Quinte 2 2/3', Superoktave 2', Terz 1 3/5', Mixtur 4 fach (1 1/3'), Trompete 8'.
Rückpositiv (C-g'''): Rohrgedeckt 8', Prinzipal 4', Traversflöte 4', Gemshorn 2', Larigot 1 1/3', Sesquialtera 2 fach (2 2/3'), Scharff 3 fach (1'), Dulzian 8', Tremulant.
Schwellwerk (C-g'''): Gedeckt 8', Salizional 8', Schwebung 8' (from A), Prästant 4', Rohrflöte 4', Mixtur 4 fach (2'), Trompete 8', Oboe 8', Tremulant.
Pedal (C-f'): Prinzipalbaß 16', Subbaß 16', Oktavbaß 8', Gedecktbaß 8', Posaunenbaß 16', Trompetenbaß 8'.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Hauptwerk - Schwellwerk Sub, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk, Pedal - Schwellwerk Super.
Accessories: 4000 Setzerkombinationen.
| Literature |
|
| Links |
http://www.jannorgelbau.com/2014/11/klosterkirche-weggental/ |
