Complete description of the selected organ
Photo: Iris Bron
München, Deutschland (Bayern) - Liebfrauendom
Municipal: München
Region:Oberbayern
Address: Frauenplatz 12, 80331, München
Website: http://www.muenchner-dom.de/
Description nr.: 2003699.
Built by: Georg Jann (1994) - opus 199

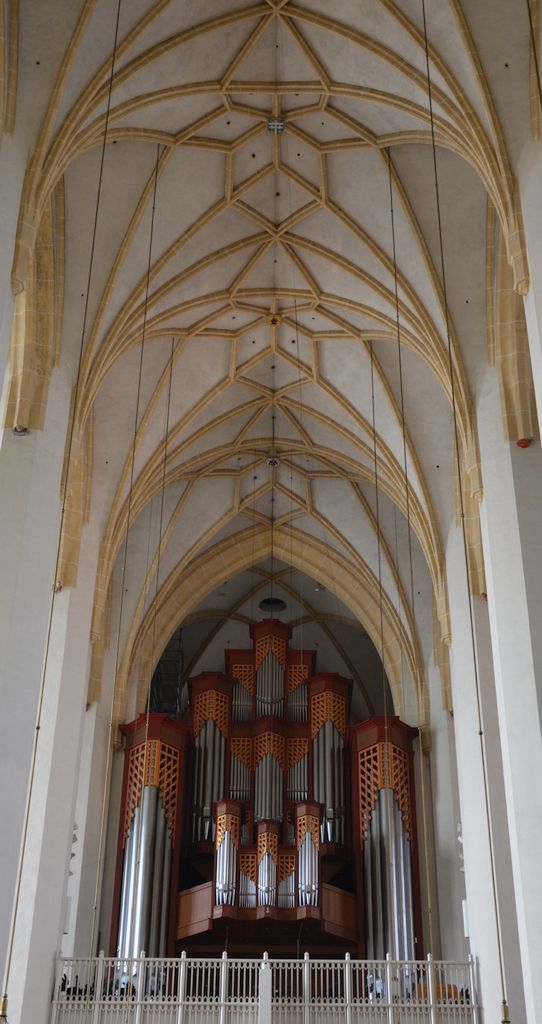

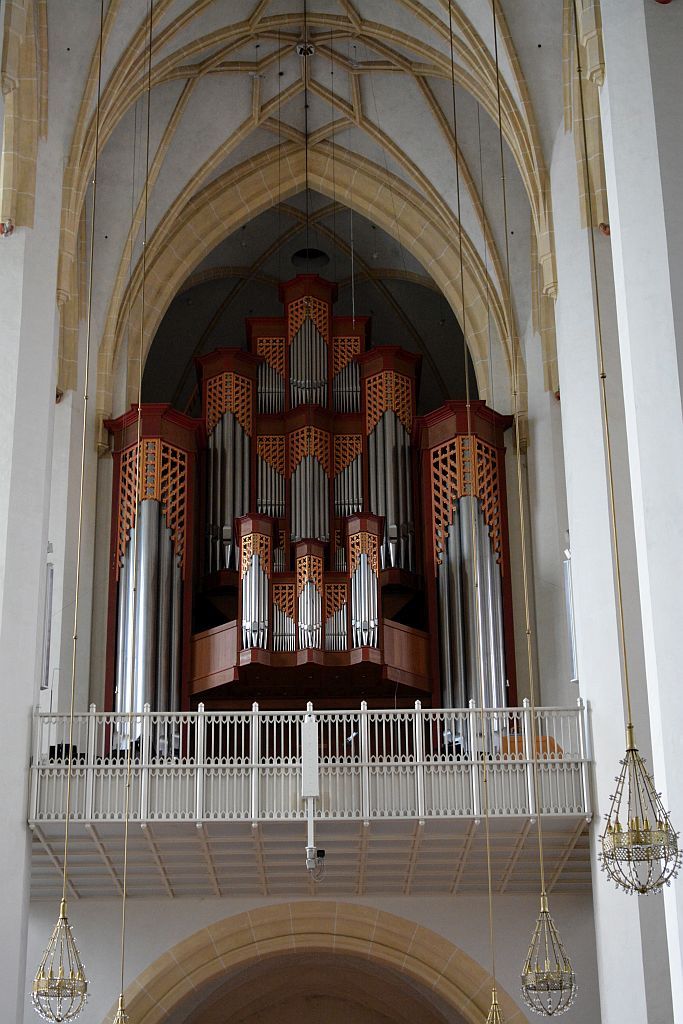

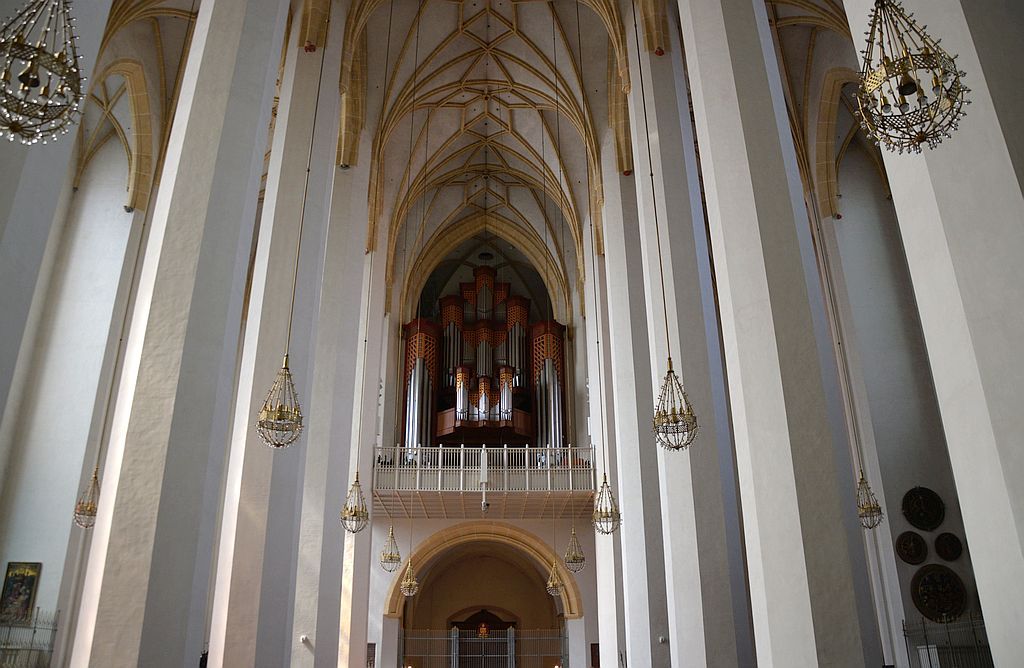

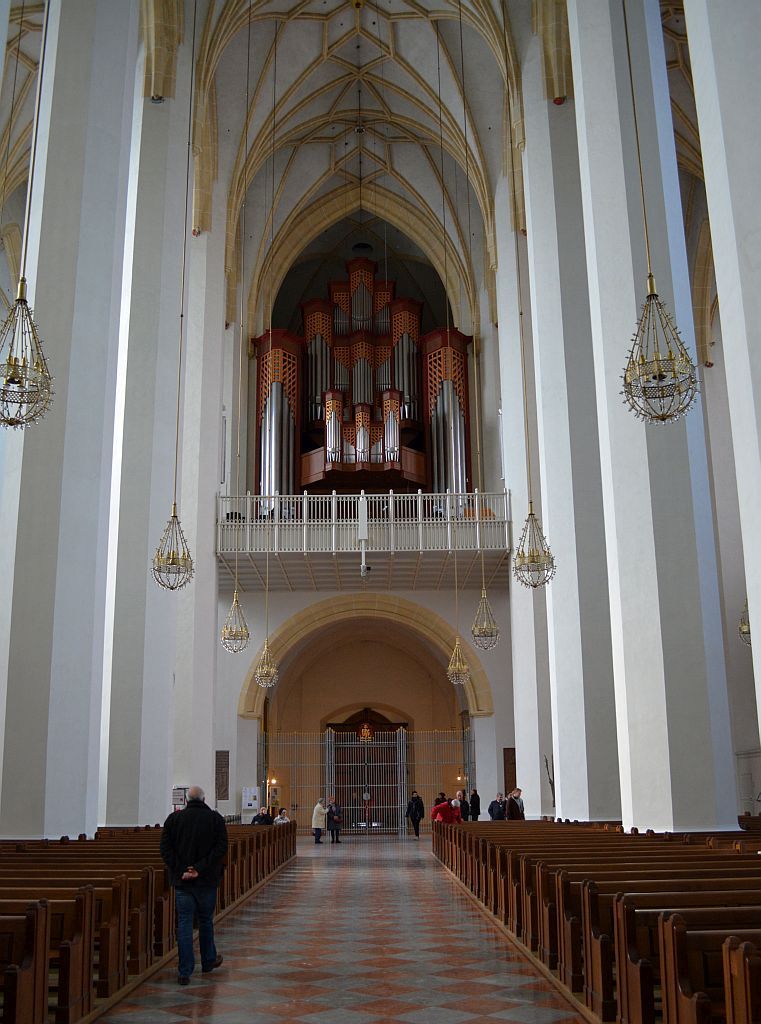

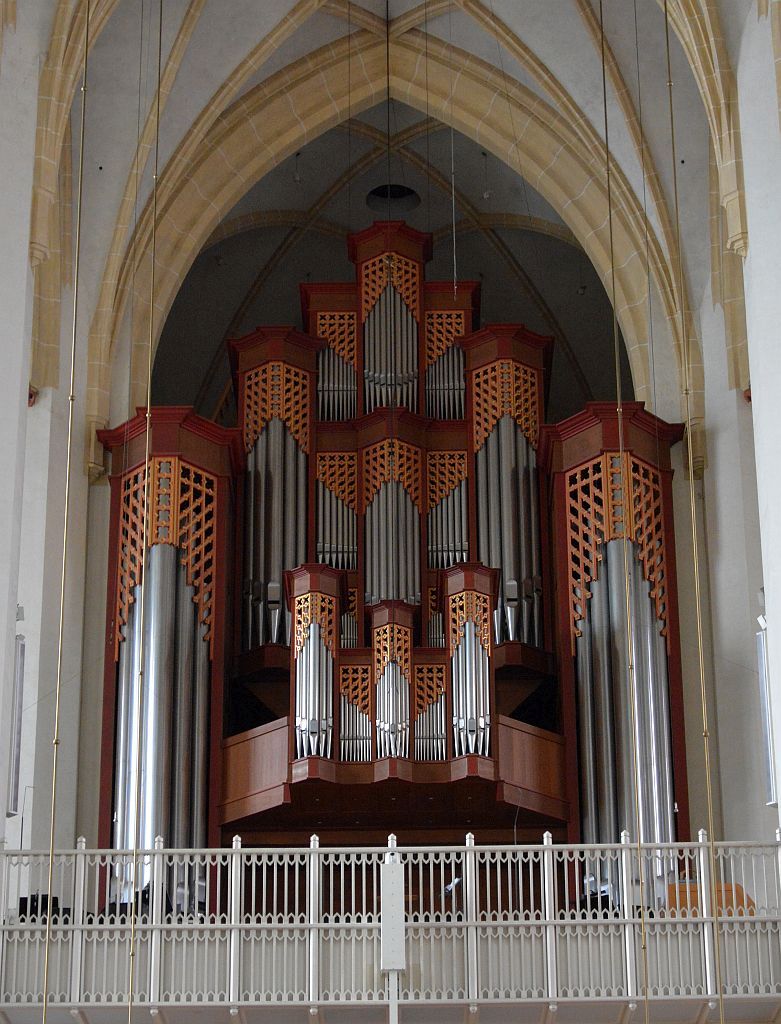

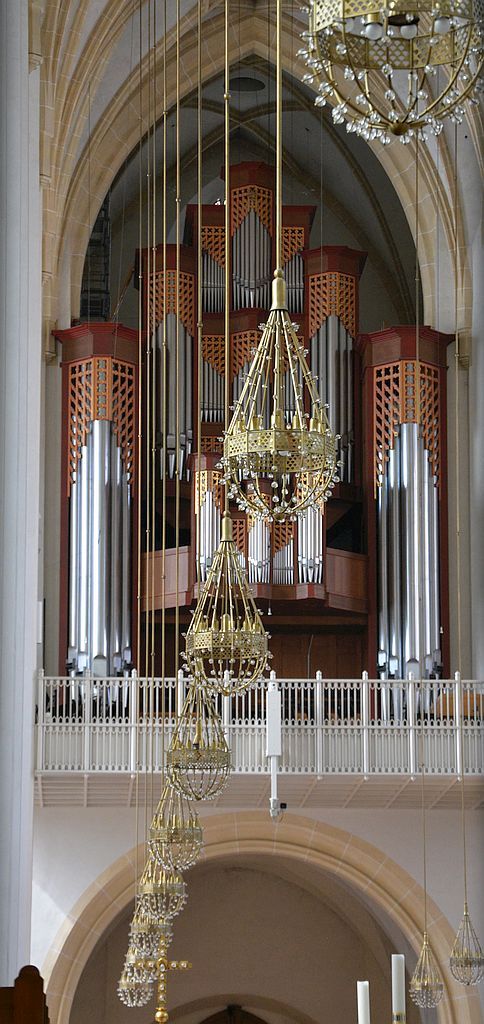

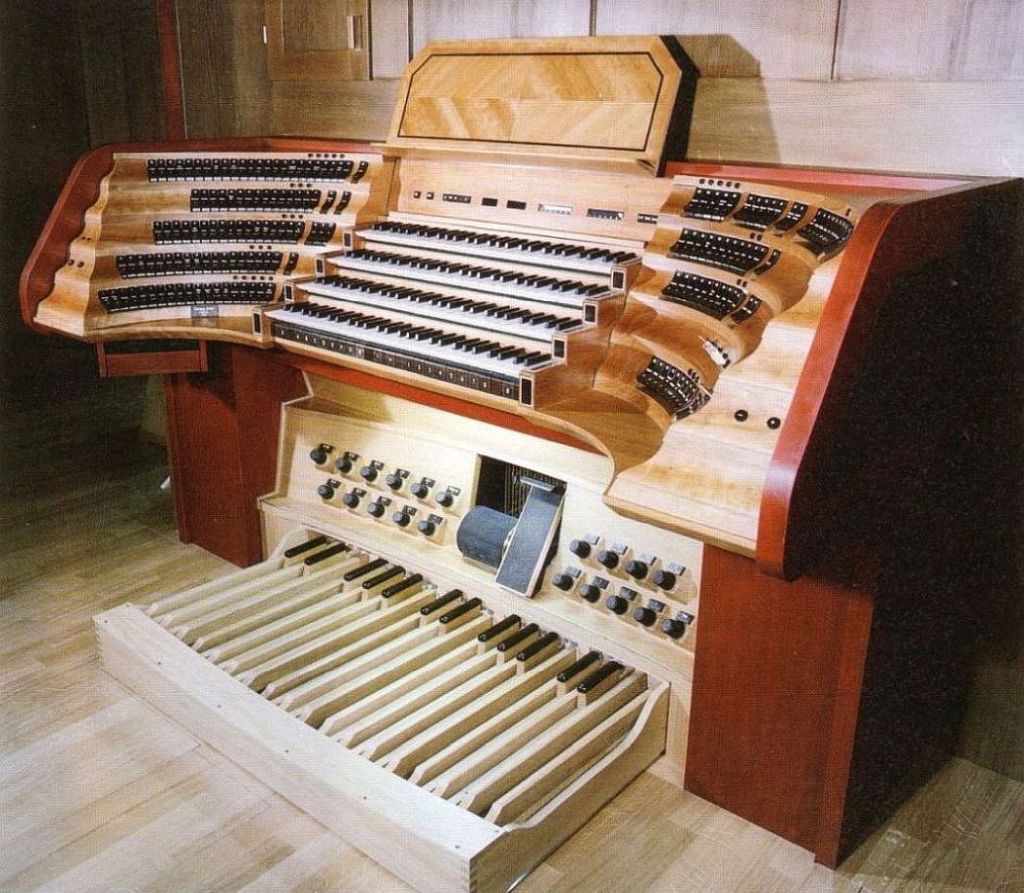

In the years 1985 to 1994 Georg Jann renewed all organs of the Liebfrauenkirche in Munich. The main organ of Zeilhuber from 1957 was demolished and replaced by a large new instrument with 95 stops. The instrument has its own four-manual console, but can also be played from a central console set up on a gallery in the choir of the church. Via the Crescendo-Walze the organ can also be played from the console of the choir organ.
Technical data
Specification
Hauptwerk (C-a'''): Praestant 16', Gedeckt 16', Octave 8' - discant dubbelkorig, Gambe 8', Flûte Harmonique 8', Quinte 5 1/3', Octave 4' - discant dubbelkorig, Flauto 4', Terz 3 1/5', Quinte 2 2/3', Octave 2' - discant dubbelkorig, Mixtur Major 6-8 fach (2'), Mixtur Minor 4 fach (1'), Cornet 5 fach, Trompete 16', Trompete 8', Vox Humana 8'.
Rückpositiv (C-a'''): Quintade 16', Praestant 8', Voce Umana 8' (from c°), Rohrflöte 8', Quintade 8', Octave 4', Hohlflöte 4', Superoctave 2', Flautino 2', Quinte 1 1/3', Sifflöte 1', Sesquialtera 2 fach (2 2/3'), Scharff 4-6 fach (1'), Cymbel 3 fach (1/3'), Trompete 8', Cromorne 8', Clairon 4', Tremulant.
Positiv (C-a'''): Gemshorn 16', Praestant 8', Bourdon 8', Octave 4', Blockflöte 4', Nazard 2 2/3', Doublette 2', Tierce 1 3/5', Larigot 1 1/3', Mixtur 5 fach (1 1/3'), Cymbel 3 fach (2/3'), Dulcian 16', Schalmey 8', Clarinette 8', Tremulant, Glockenspiel (c'-d''').
Schwellwerk (C-a'''): Gambe 16', Bourdon 16', Diapason 8', Flûte Traversière 8', Bourdon 8', Aeoline 8', Salicional 8', Unda Maris 8' (from A), Octave 4', Flûte Octaviante 4', Nachthorn 4', Viola 4', Quinte 2 2/3', Octavin 2', Tierce 1 3/5', Piccolo 1', Progressio Harmonica 2-5 fach (1 1/3'), Plein-Jeu 4 fach (2'), Basson 16', Trompette Harmonique 8', Hautbois 8', Horn 8', Clairon Harmonique 8', Tremulant, Carillon (C-f'').
Chamadenwerk (geen eigen manuaal) (C-a'''): Chamade 16', Chamade 8', Tuba 8', Trompeta Quinta 5 1/3', Clairon 4'.
Pedal (C-f'): Principalbaß 32', Violonbaß 32', Principal 16', Violon 16', Subbaß 16', Quinte 10 2/3', Octave 8', Baßflöte 8', Cello 8', Octave 4', Offenflöte 4', Bauernflöte 2', Hintersatz 4 fach (2 2/3'), Baßmixtur 4 fach (2'), Bombarde 32', Posaune 16', Fagott 16', Trompete 8', Feldtrompete 4'.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Positiv, Hauptwerk - Schwellwerk, Positiv - Schwellwerk, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Positiv, Pedal - Schwellwerk, Hauptwerk - Chamadenwerk, Rückpositiv - Chamadenwerk, Positiv - Chamadenwerk, Schwellwerk - Chamadenwerk, Pedal - Chamadenwerk, Chamaden Super, Chamaden Sub.
Accessories: Electronische Setzer met 128 combinaties, Sequencer, Tutti, Crescendo-Walze, Zungen ab.
Photo: Iris Bron
München, Deutschland (Bayern) - Liebfrauendom
Municipal: München
Region:Oberbayern
Address: Frauenplatz 12, 80331, München
Website: http://www.muenchner-dom.de/
Description nr.: 2003699.
Built by: Georg Jann (1994) - opus 199
In the years 1985 to 1994 Georg Jann renewed all organs of the Liebfrauenkirche in Munich. The main organ of Zeilhuber from 1957 was demolished and replaced by a large new instrument with 95 stops. The instrument has its own four-manual console, but can also be played from a central console set up on a gallery in the choir of the church. Via the Crescendo-Walze the organ can also be played from the console of the choir organ.
Technical data
| Number of stops per division | |
| - Hauptwerk | 17 |
| - Rückpositiv | 17 |
| - Positiv | 14 |
| - Schwellwerk | 23 |
| - Chamadenwerk | 5 |
| - Pedal | 19 |
| Total number of stops | 95 |
| Key action | Mechanical |
| Stop action | Electrical |
| Windchest(s) | Slider chests |
Specification
Hauptwerk (C-a'''): Praestant 16', Gedeckt 16', Octave 8' - discant dubbelkorig, Gambe 8', Flûte Harmonique 8', Quinte 5 1/3', Octave 4' - discant dubbelkorig, Flauto 4', Terz 3 1/5', Quinte 2 2/3', Octave 2' - discant dubbelkorig, Mixtur Major 6-8 fach (2'), Mixtur Minor 4 fach (1'), Cornet 5 fach, Trompete 16', Trompete 8', Vox Humana 8'.
Rückpositiv (C-a'''): Quintade 16', Praestant 8', Voce Umana 8' (from c°), Rohrflöte 8', Quintade 8', Octave 4', Hohlflöte 4', Superoctave 2', Flautino 2', Quinte 1 1/3', Sifflöte 1', Sesquialtera 2 fach (2 2/3'), Scharff 4-6 fach (1'), Cymbel 3 fach (1/3'), Trompete 8', Cromorne 8', Clairon 4', Tremulant.
Positiv (C-a'''): Gemshorn 16', Praestant 8', Bourdon 8', Octave 4', Blockflöte 4', Nazard 2 2/3', Doublette 2', Tierce 1 3/5', Larigot 1 1/3', Mixtur 5 fach (1 1/3'), Cymbel 3 fach (2/3'), Dulcian 16', Schalmey 8', Clarinette 8', Tremulant, Glockenspiel (c'-d''').
Schwellwerk (C-a'''): Gambe 16', Bourdon 16', Diapason 8', Flûte Traversière 8', Bourdon 8', Aeoline 8', Salicional 8', Unda Maris 8' (from A), Octave 4', Flûte Octaviante 4', Nachthorn 4', Viola 4', Quinte 2 2/3', Octavin 2', Tierce 1 3/5', Piccolo 1', Progressio Harmonica 2-5 fach (1 1/3'), Plein-Jeu 4 fach (2'), Basson 16', Trompette Harmonique 8', Hautbois 8', Horn 8', Clairon Harmonique 8', Tremulant, Carillon (C-f'').
Chamadenwerk (geen eigen manuaal) (C-a'''): Chamade 16', Chamade 8', Tuba 8', Trompeta Quinta 5 1/3', Clairon 4'.
Pedal (C-f'): Principalbaß 32', Violonbaß 32', Principal 16', Violon 16', Subbaß 16', Quinte 10 2/3', Octave 8', Baßflöte 8', Cello 8', Octave 4', Offenflöte 4', Bauernflöte 2', Hintersatz 4 fach (2 2/3'), Baßmixtur 4 fach (2'), Bombarde 32', Posaune 16', Fagott 16', Trompete 8', Feldtrompete 4'.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Positiv, Hauptwerk - Schwellwerk, Positiv - Schwellwerk, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Positiv, Pedal - Schwellwerk, Hauptwerk - Chamadenwerk, Rückpositiv - Chamadenwerk, Positiv - Chamadenwerk, Schwellwerk - Chamadenwerk, Pedal - Chamadenwerk, Chamaden Super, Chamaden Sub.
Accessories: Electronische Setzer met 128 combinaties, Sequencer, Tutti, Crescendo-Walze, Zungen ab.
