Complete description of the selected organ
Source: Mander Organs
London, United Kingdom (Greater London) - Mill Hill School Chapel
Municipal: London
Address: The Ridgeway, London
Website: http://www.millhill.org.uk/
Description nr.: 2003217.

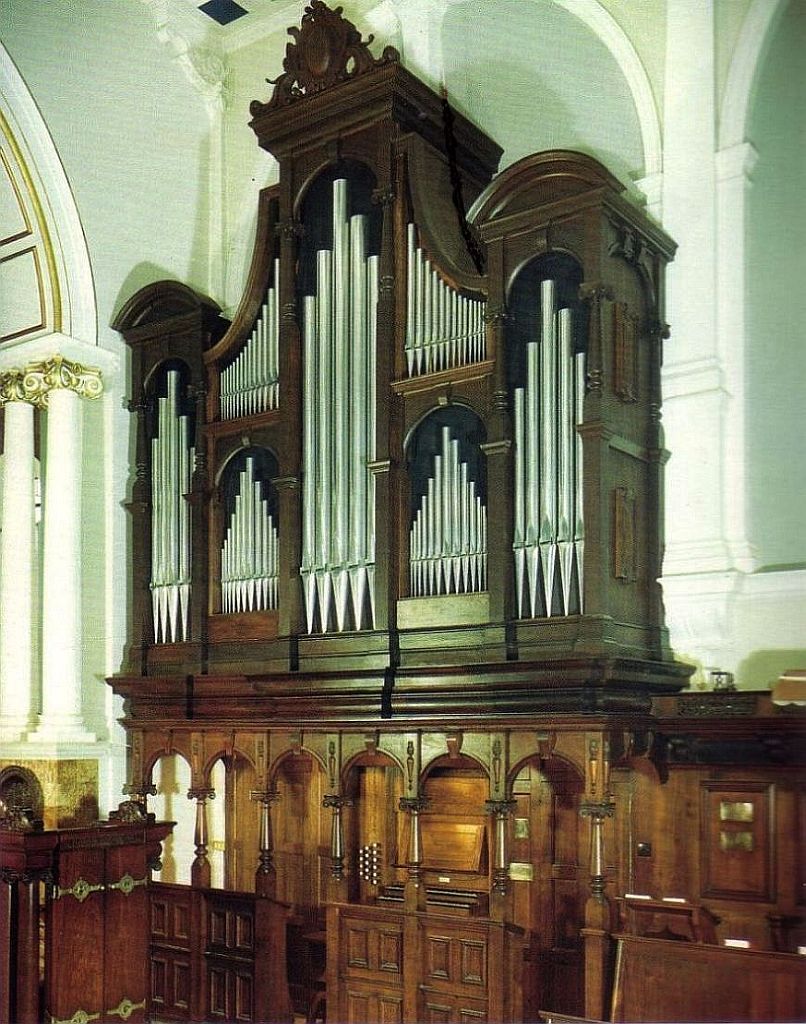

Built by: Mander Organs (1986)
In 1898 werd de kapel van de Mill Hill School in gebruik genomen. Het gebouw was ontworpen door Basil Champneys. In de kapel werd fraai meubilair geplaatst, waaronder een klassieke orgelkas. Hierin liet men een pneumatisch orgel bouwen. In 1985 startte Noel Mander met de bouw van een nieuw binnenwerk in de oude kas. In 1986 was het instrument voltooid.
Technical data
Specification
Great: Bourdon 16', Open Diapason 8', Stopped Diapason 8', Principal 4', Spitzflute 4', Fifteenth 2', Sesquialtera 2 ranks (12.17), Furniture 4 ranks (19.22.26.29), Trumpet 8', Tremulant.
Swell: Chimney Flute 8', Viola da Gamba 8', Principal 4', Stopped Flute 4', Gemshorn 2', Larigot 1 1/3', Mixture 3 ranks (22.26.29), Hautboy 8', Tremulant.
Pedal: Sub Bass 16', Principal 8', Gemshorn 4', Trombone 16'.
Couplers: Swell to Great, Great to Pedal, Swell to Pedal.
Accessories: 2 adjustable composition pedals to each department.
Source: Mander Organs
London, United Kingdom (Greater London) - Mill Hill School Chapel
Municipal: London
Address: The Ridgeway, London
Website: http://www.millhill.org.uk/
Description nr.: 2003217.
Built by: Mander Organs (1986)
In 1898 werd de kapel van de Mill Hill School in gebruik genomen. Het gebouw was ontworpen door Basil Champneys. In de kapel werd fraai meubilair geplaatst, waaronder een klassieke orgelkas. Hierin liet men een pneumatisch orgel bouwen. In 1985 startte Noel Mander met de bouw van een nieuw binnenwerk in de oude kas. In 1986 was het instrument voltooid.
Technical data
Number of stops per division | |
- Great | 9 |
- Swell | 8 |
- Pedal | 4 |
Total number of stops | 21 |
Key action | Mechanical |
Stop action | Mechanical |
Windchest(s) | Slider chests |
Specification
Great: Bourdon 16', Open Diapason 8', Stopped Diapason 8', Principal 4', Spitzflute 4', Fifteenth 2', Sesquialtera 2 ranks (12.17), Furniture 4 ranks (19.22.26.29), Trumpet 8', Tremulant.
Swell: Chimney Flute 8', Viola da Gamba 8', Principal 4', Stopped Flute 4', Gemshorn 2', Larigot 1 1/3', Mixture 3 ranks (22.26.29), Hautboy 8', Tremulant.
Pedal: Sub Bass 16', Principal 8', Gemshorn 4', Trombone 16'.
Couplers: Swell to Great, Great to Pedal, Swell to Pedal.
Accessories: 2 adjustable composition pedals to each department.
Literature |
Mill Hill School 1986. - London : N.P. Mander, 1986. - Informatiestencil. |
Recordings |
Two Mander organs / Anne Page. - Priory Records PRCD 336 (CD). |
