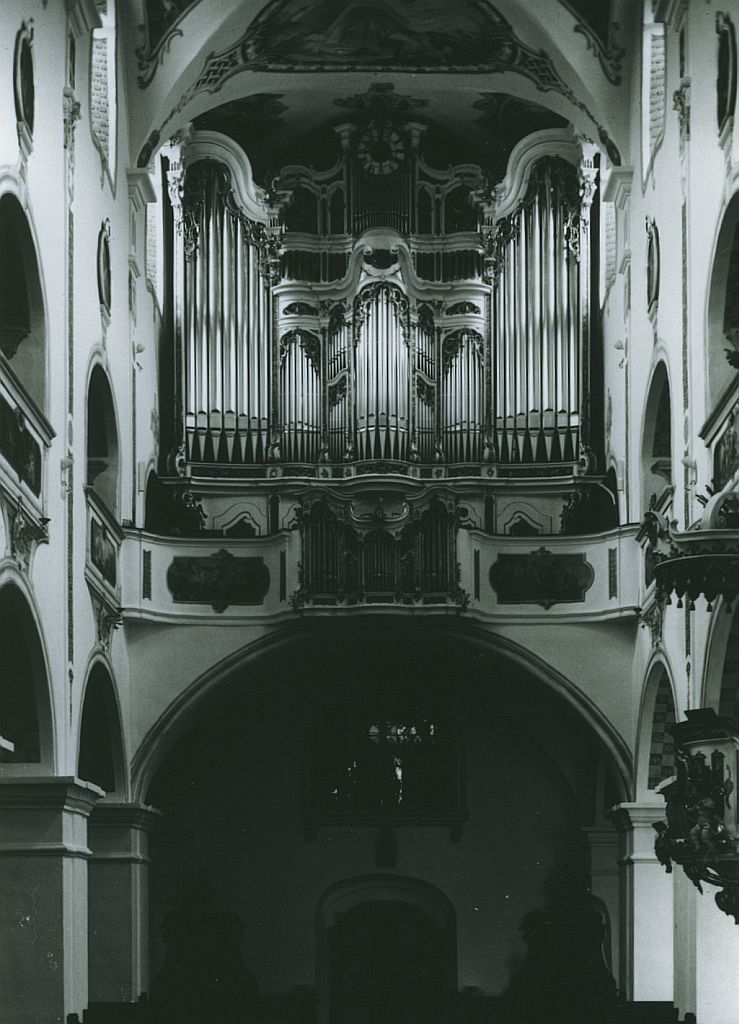

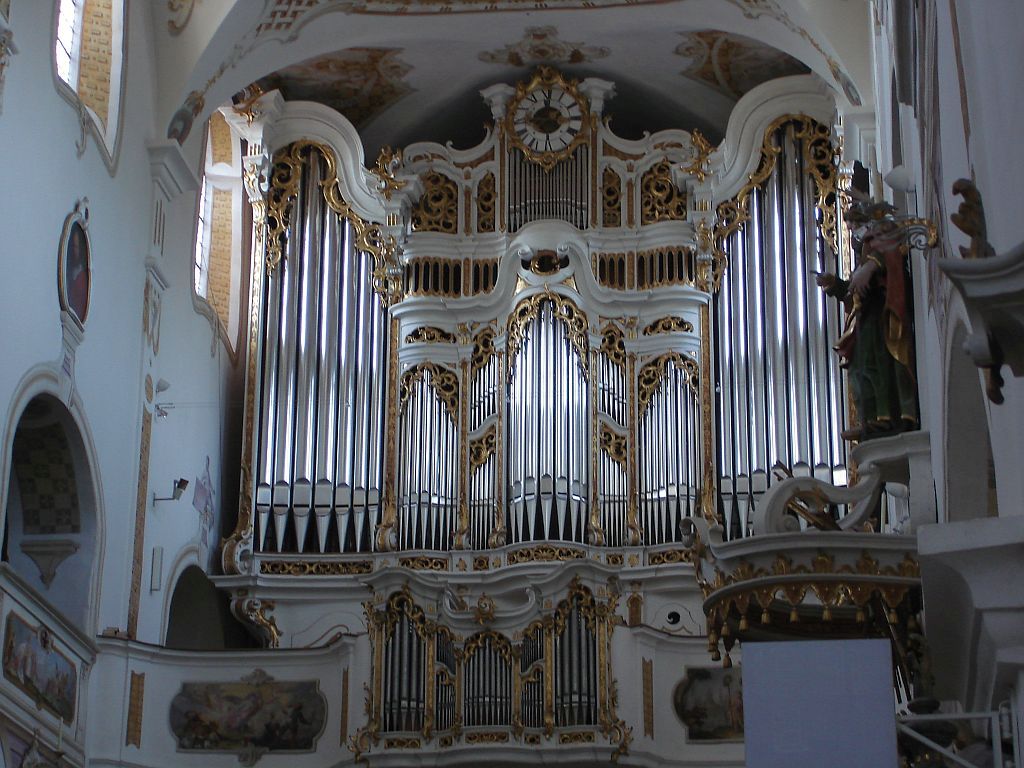

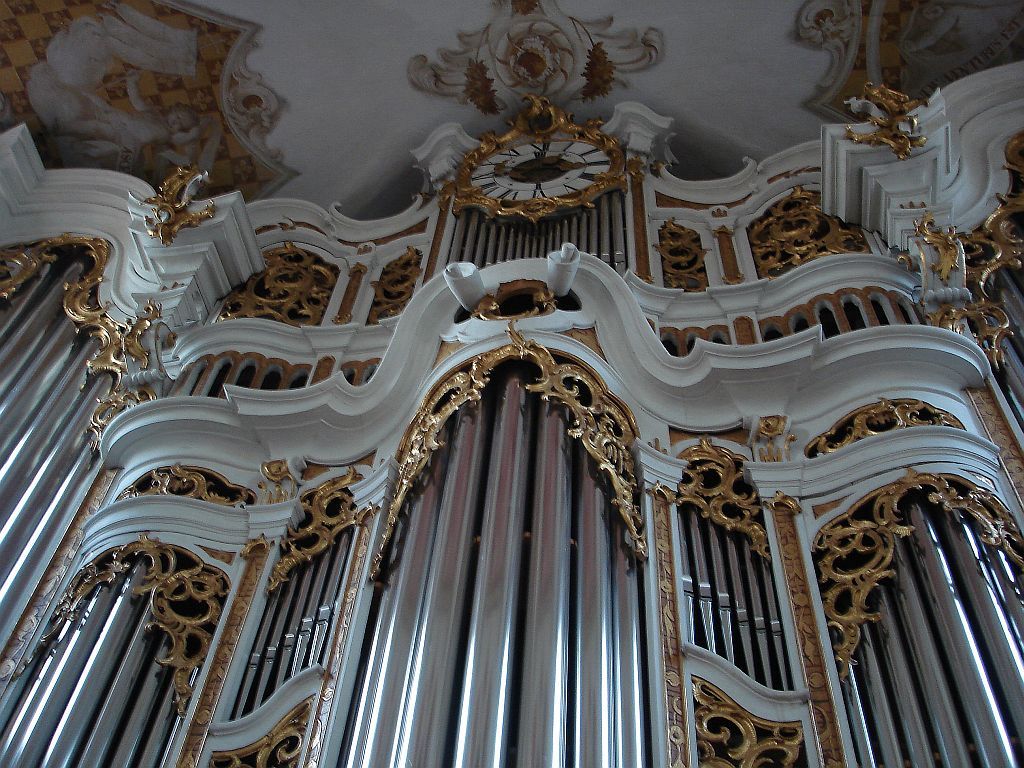

Complete description of the selected organ
Photo: Tjalling Roosjen
Ursberg, Deutschland (Bayern) - Katholische Abteikirche Sankt Johannes (ehemahlige Prämonstratenser Reichsabtei)
Municipal: Ursberg
Region:Schwaben
Address: Klosterhof 6, 86513, Ursberg
Description nr.: 2001676.
Built by: Johann Nepomuk Holzhey (1776)
The main organ of the abbey church in Ursberg was manufactured in 1775-1776 by Johann Nepomuk Holzhey. It was dedicated in the spring of 1776. In the course of the nineteenth century many changes were made to the organ. The original reeds disappeared, as well as the wind supply, keyboards, parts of the action and part of the front pipes. Fortunately, no new interior was installed at the beginning of the twentieth century, but the old work was further preserved. In 1969 Kubak carried out a restoration. An attempt was made to reconstruct the old disposition. In 1999 Klais completed a new restoration. The organ has been restored according to new insights and may have come even closer to the original structure.
Technical data
Specification
Hauptwerk (C-f'''): Principal 8', Coppel 8', Quintaden 8', Flautravers 8' (from g°), Gamba 8', Onda Maris 8' (from gis), Octav 4', Flötten 4', Naßart 3', Superoctav 2', Sexquialtera 3 fach (3'), Mixtur 5 fach (2'), Fagot 8' (bas) - 1969, Huboe 8' (discant) - 1969.
Positiv (C-f'''): Gedect 8', Waldflauten 8' (from h), Principal 4', Flötten 4', Cornet 3 fach (from g°), Schalmey 8' - 1969.
Pedal (C-a°): Prästant 16', Subbaß 16', Octav Baß 8', Violoncell 8', Mixtur Baß 5 fach (4'), Bompard 16' - 1969, Trompeta 8' - 1999.
Couplers: Hauptwerk - Positiv, Pedal - Hauptwerk.
Accessories: Tutti.
Photo: Tjalling Roosjen
Ursberg, Deutschland (Bayern) - Katholische Abteikirche Sankt Johannes (ehemahlige Prämonstratenser Reichsabtei)
Municipal: Ursberg
Region:Schwaben
Address: Klosterhof 6, 86513, Ursberg
Description nr.: 2001676.
Built by: Johann Nepomuk Holzhey (1776)
| Year | Builder | Opus | Activity | 1776 | Johann Nepomuk Holzhey | new organ | 1969 | Orgelbau Kubak | restoration | 1999 | Klais Orgelbau | 1789 | restoration |
The main organ of the abbey church in Ursberg was manufactured in 1775-1776 by Johann Nepomuk Holzhey. It was dedicated in the spring of 1776. In the course of the nineteenth century many changes were made to the organ. The original reeds disappeared, as well as the wind supply, keyboards, parts of the action and part of the front pipes. Fortunately, no new interior was installed at the beginning of the twentieth century, but the old work was further preserved. In 1969 Kubak carried out a restoration. An attempt was made to reconstruct the old disposition. In 1999 Klais completed a new restoration. The organ has been restored according to new insights and may have come even closer to the original structure.
Technical data
| Number of stops per division | |
| - Hauptwerk | 13 |
| - Positiv | 6 |
| - Pedal | 7 |
| Total number of stops | 26 |
| Key action | Mechanical |
| Stop action | Mechanical |
| Windchest(s) | Slider chests |
Specification
Hauptwerk (C-f'''): Principal 8', Coppel 8', Quintaden 8', Flautravers 8' (from g°), Gamba 8', Onda Maris 8' (from gis), Octav 4', Flötten 4', Naßart 3', Superoctav 2', Sexquialtera 3 fach (3'), Mixtur 5 fach (2'), Fagot 8' (bas) - 1969, Huboe 8' (discant) - 1969.
Positiv (C-f'''): Gedect 8', Waldflauten 8' (from h), Principal 4', Flötten 4', Cornet 3 fach (from g°), Schalmey 8' - 1969.
Pedal (C-a°): Prästant 16', Subbaß 16', Octav Baß 8', Violoncell 8', Mixtur Baß 5 fach (4'), Bompard 16' - 1969, Trompeta 8' - 1999.
Couplers: Hauptwerk - Positiv, Pedal - Hauptwerk.
Accessories: Tutti.
| Other specifications | |
|---|---|
| Different specifications |
The specification of the organ was in 1969 (after the work by Kubak): Hauptwerk (C-f'''): Principal 8', Copula 8', Quintathön 8', Una Maris 8' (from gis°), Dolce 8' (from g°), Gamba 8', Octav 4', Flöten 4' (gedeckt), Quinte 2 2/3', Superoctav 2', Sesquialter 3 fach (2 2/3'), Mixtur 5 fach (2'), Fagott/Oboe 8' (B/D). Rückpositiv (C-f'''): Gedackt 8', Waldflöte 8' (from gis°), Principal 4', Flöten 4', Cornet 3 fach (8', from g°), Schalmey 8'. Pedal (C-a): Principalbaß 16', Subbaß 16', Octavbaß 8', Cellobaß 8', Bombardon 16', Posaune 8'. |
| Literature |
|
| Recordings |
|
 |
 |
 |
 |
 |
