Complete description of the selected organ
Source: Calendar
Donauwörth, Deutschland (Bayern) - Liebfrauenmünster (Katholische Stadtpfarrkirche "Zu unserer lieben Frau")
Municipal: Donauwörth
Region:Schwaben
Address: Münsterplatz 1, 86609, Donauwörth
Website: https://donauwoerth-katholisch.de/
Description nr.: 2000913.
Built by: Klais Orgelbau (1977) - opus 1552

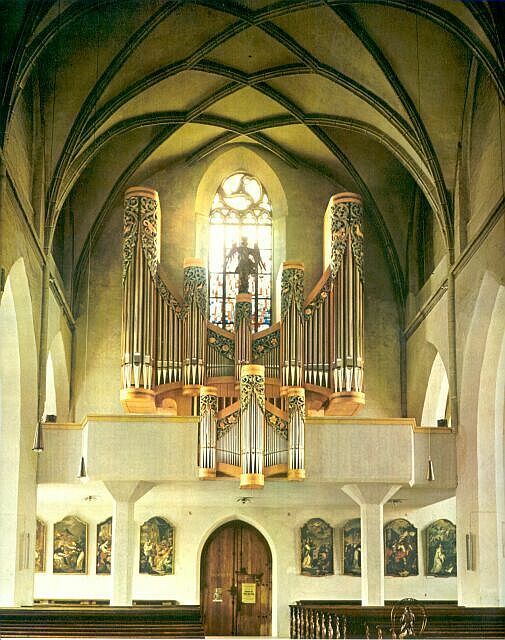

Klais Orgelbau built a new organ in 1977 for the Liebfrauenkirche in Donauwörth. The organ has a case designed by Josef Schäfer. The carving was made by Matthäus Bayer. Consultant was Dr. Gerd Völkel. As a nice touch, two flaps have been made at the bottom of the central tower of the positive, which can be opened from the console. A red devil then appears and is forced to play a song of praise to God with his pan flute.
Technical data
Specification
Hauptwerk (C-g'''): Pommer 16', Principal 8', Gemshorn 8', Octave 4', Querflöte 4', Quinte 2 2/3', Superoctave 2', Cornet 5 fach, Mixtur 5 fach, Trompete 8'.
Rückpositiv (C-g'''): Rohrflöte 8', Quintade 8', Praestant 4', Spitzflöte 4', Nasard 2 2/3', Principal 2', Terz 1 3/5', Octave 1', Cymbel 3 fach, Cromorne 8', Tremulant.
Schwellwerk (C-g'''): Bourdon 8', Salicional 8', Schwebung 8', Principal 4', Rohrflöte 4', Waldflöte 2', Larigot 1 1/3', Sesquialter 2 fach, Scharff 4 fach, Holzdulcian 16', Hautbois 8', Clairon Harmonique 4', Tremulant.
Pedal (C-f'): Principal 16', Subbaß 16', Quinte 10 2/3', Octave 8', Koppel 8', Superoctave 4', Blockflöte 4', Rohrpfeife 2', Rauschpfeife 4 fach, Posaune 16', Trompete 8', Kopftrompete 4'.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk.
Accessories: 6-voudige electrische Setzercombinatie.
Source: Calendar
Donauwörth, Deutschland (Bayern) - Liebfrauenmünster (Katholische Stadtpfarrkirche "Zu unserer lieben Frau")
Municipal: Donauwörth
Region:Schwaben
Address: Münsterplatz 1, 86609, Donauwörth
Website: https://donauwoerth-katholisch.de/
Description nr.: 2000913.
Built by: Klais Orgelbau (1977) - opus 1552
Klais Orgelbau built a new organ in 1977 for the Liebfrauenkirche in Donauwörth. The organ has a case designed by Josef Schäfer. The carving was made by Matthäus Bayer. Consultant was Dr. Gerd Völkel. As a nice touch, two flaps have been made at the bottom of the central tower of the positive, which can be opened from the console. A red devil then appears and is forced to play a song of praise to God with his pan flute.
Technical data
| Number of stops per division | |
| - Hauptwerk | 10 |
| - Rückpositiv | 10 |
| - Schwellwerk | 12 |
| - Pedal | 12 |
| Total number of stops | 44 |
| Key action | Mechanical |
| Stop action | Electrical |
| Windchest(s) | Slider chests |
Specification
Hauptwerk (C-g'''): Pommer 16', Principal 8', Gemshorn 8', Octave 4', Querflöte 4', Quinte 2 2/3', Superoctave 2', Cornet 5 fach, Mixtur 5 fach, Trompete 8'.
Rückpositiv (C-g'''): Rohrflöte 8', Quintade 8', Praestant 4', Spitzflöte 4', Nasard 2 2/3', Principal 2', Terz 1 3/5', Octave 1', Cymbel 3 fach, Cromorne 8', Tremulant.
Schwellwerk (C-g'''): Bourdon 8', Salicional 8', Schwebung 8', Principal 4', Rohrflöte 4', Waldflöte 2', Larigot 1 1/3', Sesquialter 2 fach, Scharff 4 fach, Holzdulcian 16', Hautbois 8', Clairon Harmonique 4', Tremulant.
Pedal (C-f'): Principal 16', Subbaß 16', Quinte 10 2/3', Octave 8', Koppel 8', Superoctave 4', Blockflöte 4', Rohrpfeife 2', Rauschpfeife 4 fach, Posaune 16', Trompete 8', Kopftrompete 4'.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk.
Accessories: 6-voudige electrische Setzercombinatie.
| Literature |
Orgeln in Schwaben / Georg Brenninger. - München : Bruckmann, 1986. |
