Volledige beschrijving geselecteerd orgel
Foto: Bram Luteyn

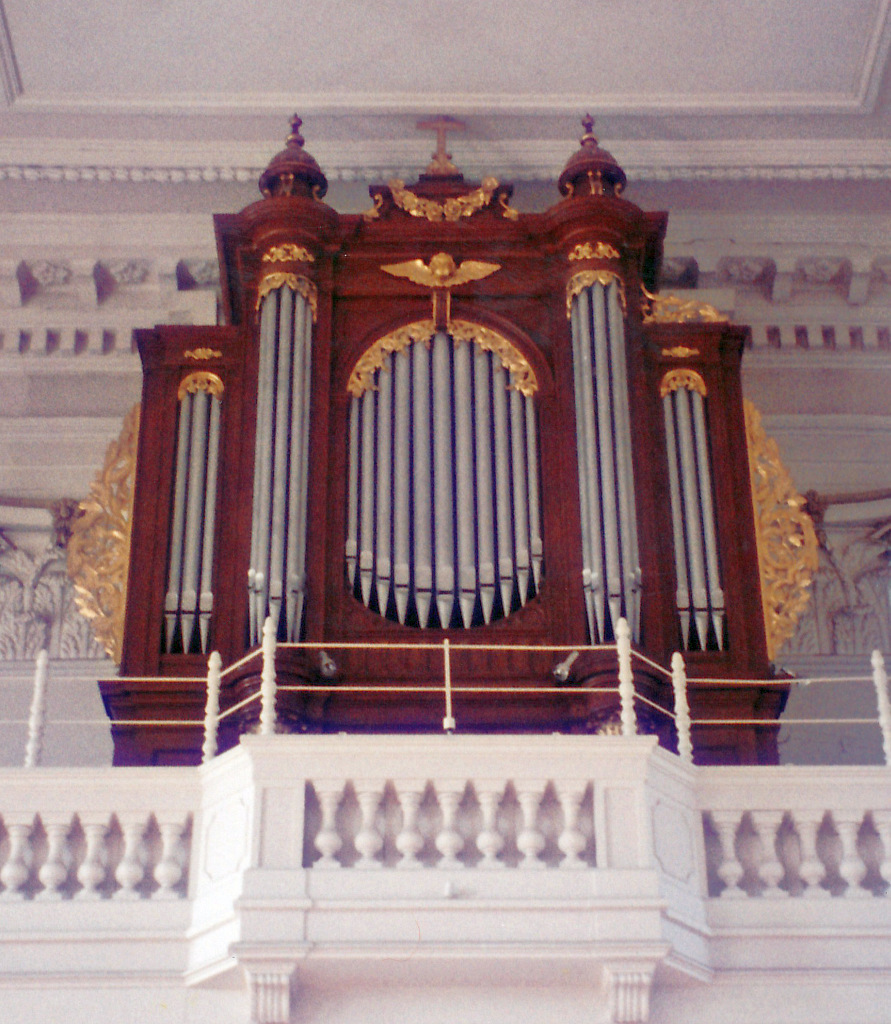

Wintzenheim, France (Haut-Rhin (68)) - Église Saint-Laurent
Gemeente: Wintzenheim
Streek:Alsace
Adres: 2 Rue du Logelbach, 68920, Wintzenheim
Beschrijving nr.: 2067447.
Gebouwd door: maison Merklin-Schütze (1861)
Technische gegevens
Dispositie
Grand Orgue (C-g'''): Bourdon 16', Montre 8', Bourdon 8', Gambe 8', Prestant 4', Flûte Harmonique 4', Doublette 2', Plein-Jeu 3-4 rangs, Trompette 8', Clairon Harmonique 4'.
Récit Expressif (C-g'''): Viole de Gambe 8', Voix Céleste 8' (from c°), Flûte Harmonique 8', Flûte d'Écho 4', Trompette Harmonique 8', Clarinette 8', Voix Humaine 8', Trémolo.
Pédale (C-d'): Soubasse 16', Octavebasse 8', Trombone 16'.
Koppelingen: Accouplement du Récit au Grand Orgue, Tirasse Grand Orgue, Tirasse Récit.
Speelhulpen: Appel Jeux de Fonds Manual I, Appel Combinaisons Manual I, Appel Combinaisons Manual II, Appel Combinaisons Pédale.
Foto: Bram Luteyn

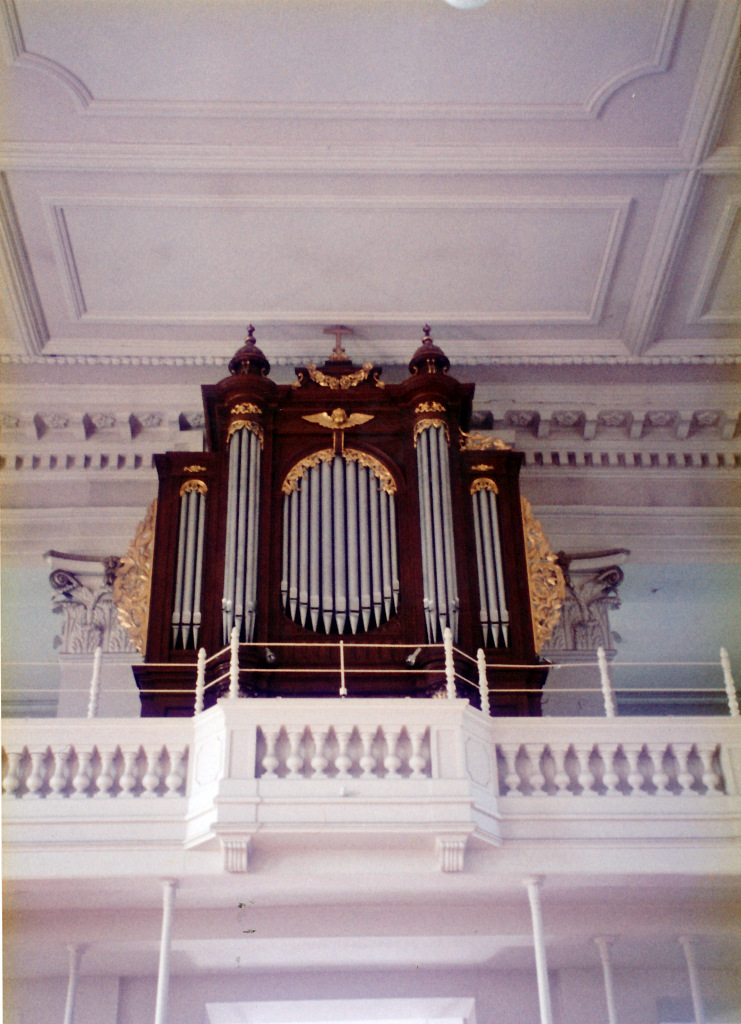

Wintzenheim, France (Haut-Rhin (68)) - Église Saint-Laurent
Gemeente: Wintzenheim
Streek:Alsace
Adres: 2 Rue du Logelbach, 68920, Wintzenheim
Beschrijving nr.: 2067447.
Gebouwd door: maison Merklin-Schütze (1861)
Jaar | Orgelbouwer | Opus | Activiteit | 1861 | maison Merklin-Schütze | nieuwbouw | 1935 | Etablissements E.-A. Roethinger | restauratie en uitbreiding |
- The organ of the Église Saint-Laurent in Wintzenheim was built in 1860-1861 by the company Merklin-Schütze. The organ was examined on January 31, 1861. It has twenty stops on two manuals and pedal. Originally the Récit did not have the lowest octave (C-B).
- In 1917, the prospect pipes were removed. They have been replaced in 1935 by Edmond-Alexandre Roethinger. He also added the lowest octave to the Récit, except for the Voix Céleste. The organ has been preserved in this condition. Maintenance works have been carried out by Alfred and later Daniel Kern.
Technische gegevens
Aantal registers per werk | |
- Grand Orgue | 10 |
- Récit Expressif | 7 |
- Pédale | 3 |
Totaal aantal stemmen | 20 |
Toetstractuur | Mechanisch |
Registertractuur | Mechanisch |
Windlade(n) | Sleepladen |
Dispositie
Grand Orgue (C-g'''): Bourdon 16', Montre 8', Bourdon 8', Gambe 8', Prestant 4', Flûte Harmonique 4', Doublette 2', Plein-Jeu 3-4 rangs, Trompette 8', Clairon Harmonique 4'.
Récit Expressif (C-g'''): Viole de Gambe 8', Voix Céleste 8' (from c°), Flûte Harmonique 8', Flûte d'Écho 4', Trompette Harmonique 8', Clarinette 8', Voix Humaine 8', Trémolo.
Pédale (C-d'): Soubasse 16', Octavebasse 8', Trombone 16'.
Koppelingen: Accouplement du Récit au Grand Orgue, Tirasse Grand Orgue, Tirasse Récit.
Speelhulpen: Appel Jeux de Fonds Manual I, Appel Combinaisons Manual I, Appel Combinaisons Manual II, Appel Combinaisons Pédale.
