Complete description of the selected organ
Photo: Piet Bron

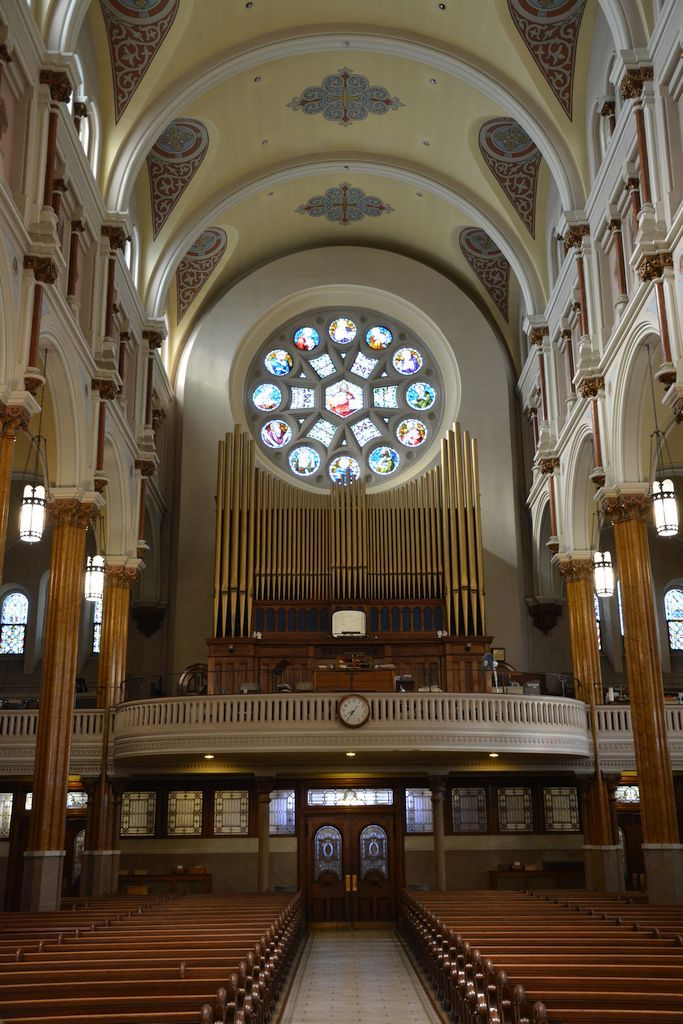

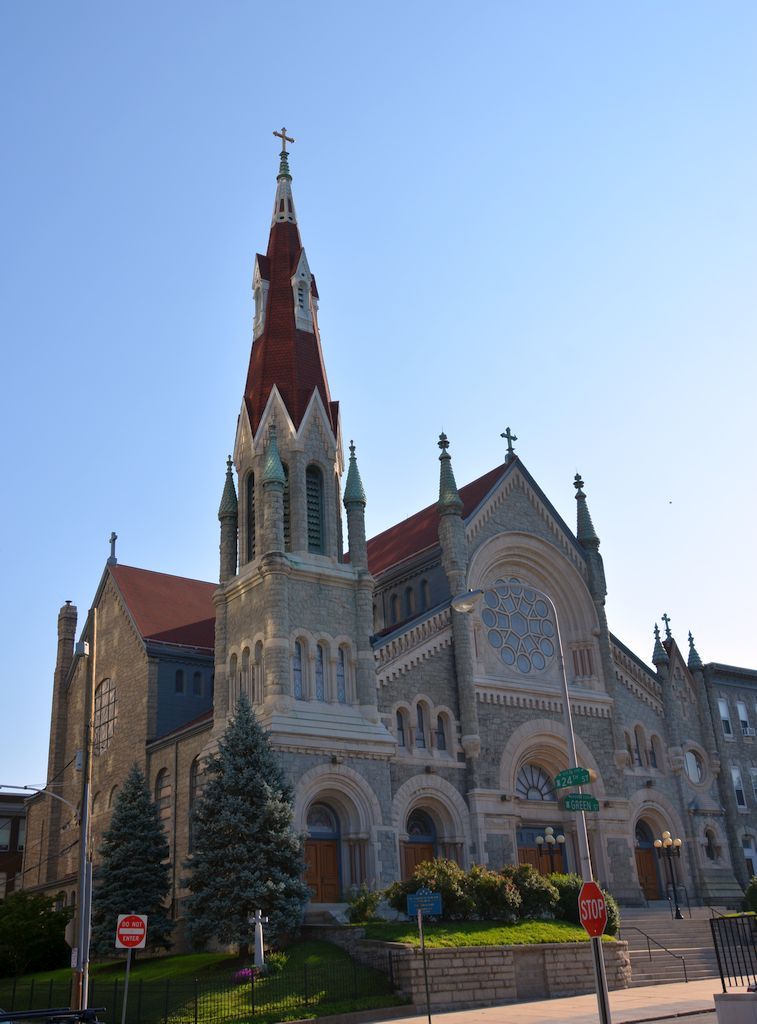

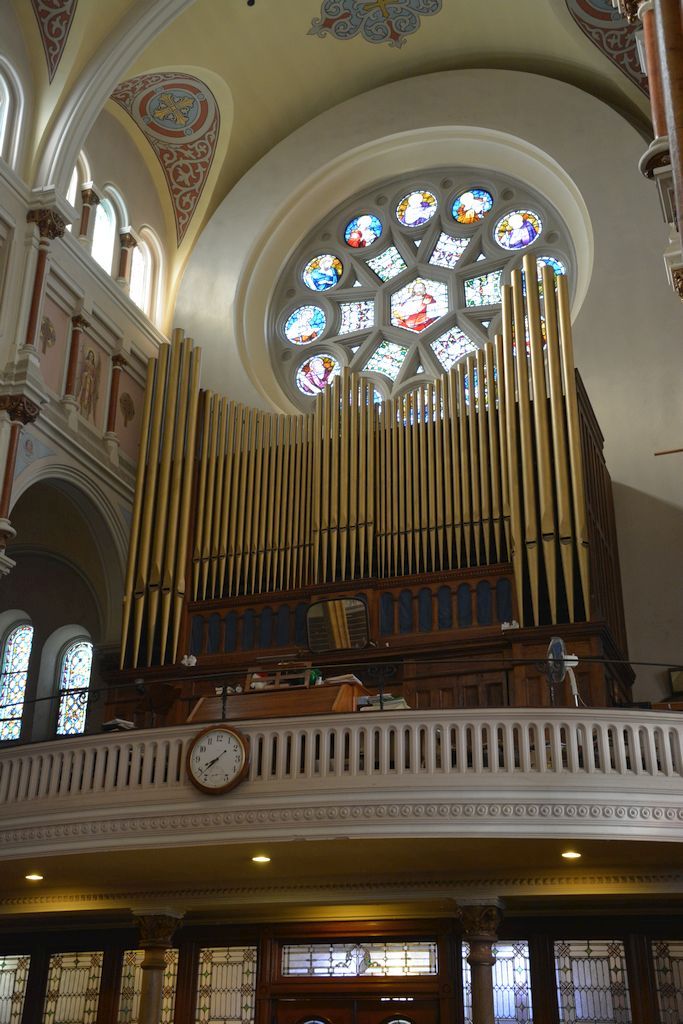

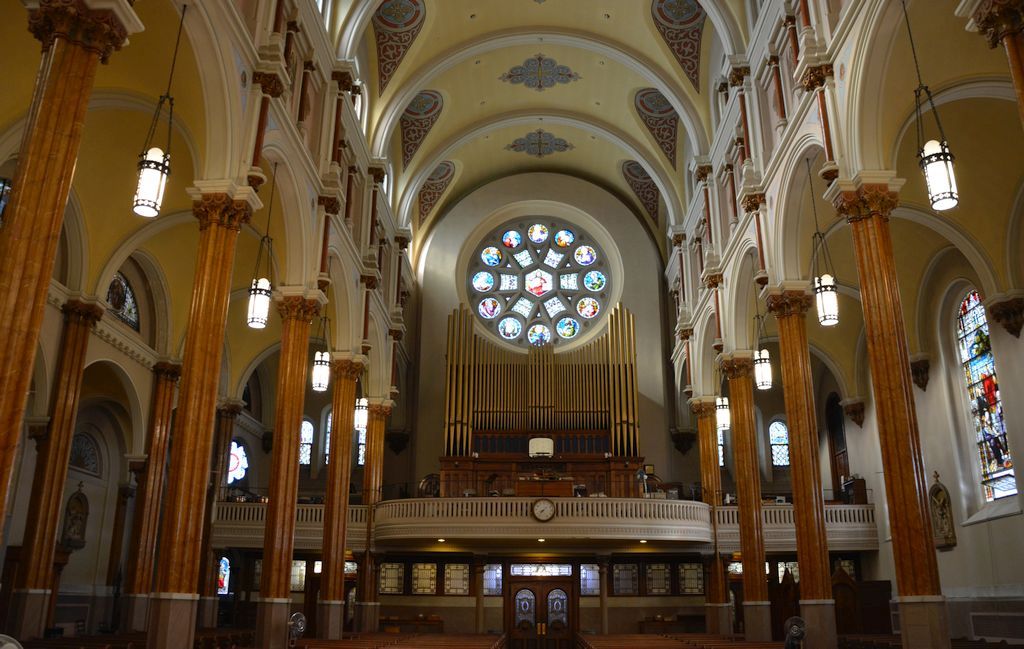

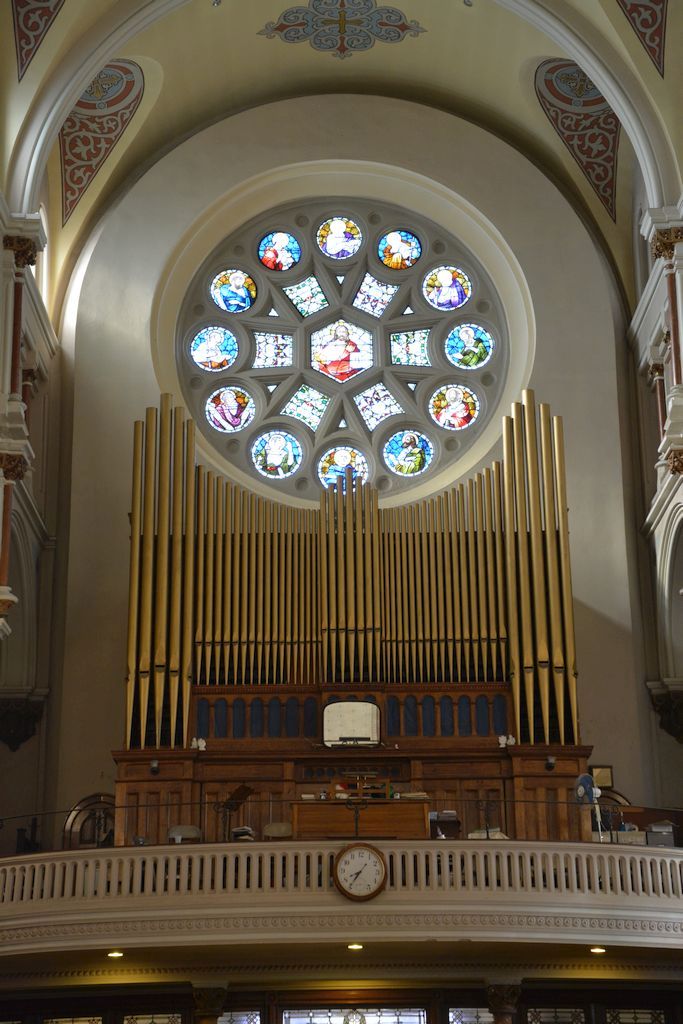

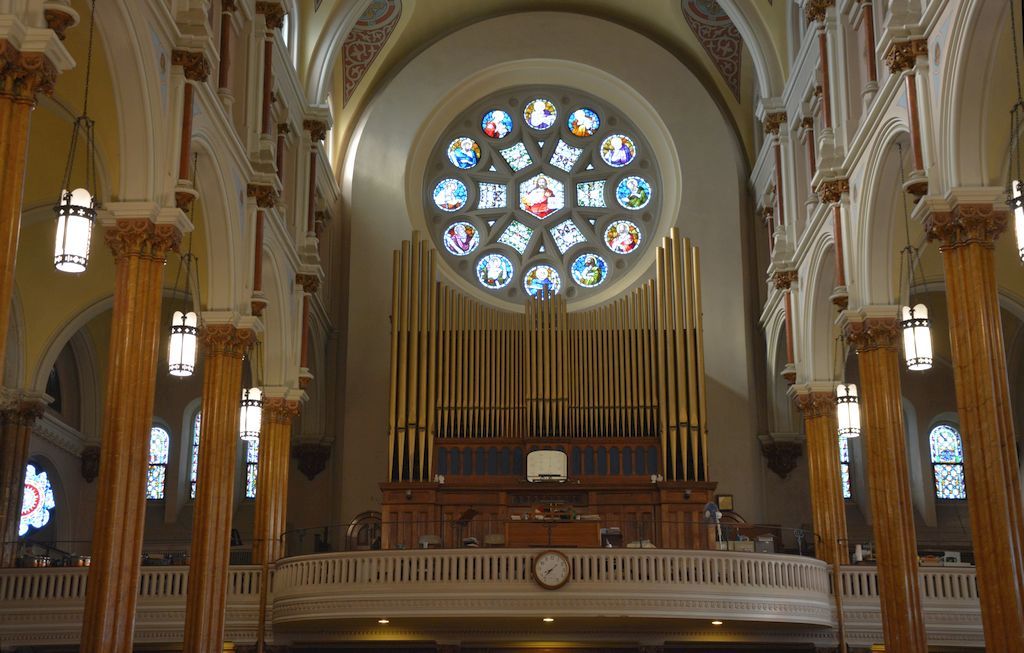

Philadelphia, USA (Pennsylvania) - Saint Francis Xavier Catholic Church - The Oratory
Municipal: Philadelphia
Region:Philadelphia County
Address: 2319 Green Street, Fairmount, 19130, Philadelphia, PA
Website: http://www.sfxoratory.org/
Description nr.: 2057528.
Built by: Hook & Hastings (1898) - opus 1812
De kerk van Saint Francis Xavier in Philadelphia is gewijd op 18 december 1898. De firma Hook & Hastings plaatste een orgel in de kerk, opus 1812 van de firma. In 1907 werd het door dezelfde firma uitgebreid (opus 2139). Het orgel is in de jaren rond 1970 door de firma Tellers herbouwd.
Technical data
Specification
Great: Open Diapason 8', Doppel Flute 8', Octave 4', Twelfth 2 2/3', Fifteenth 2', Mixture 4 ranks, Trumpet 8'.
Choir: Geigen 8', Melodia 8', Dulciana 8', Flute d'Amour 4', Dulcet 4', Dulcet 2', Tremolo.
Swell: Open Diapason 8', Stopped Diapason 8', Salicional 8', Aeoline 8', Vox Celeste 8', Harmonic Flute 4', Violina 4', Oboe 8', Vox Humana 8', Tremolo.
Pedal: Open Diapason 16', Bourdon 16', Dulciana 16', Flute 8'.
Couplers: Choir to Great, Choir to Great 16', Choir to Great 4', Swell to Great, Swell to Great 16', Swell to Great 4', Swell to Choir, Swell to Choir 16', Swell to Choir 4', Great to Pedal, Choir to Pedal, Swell to Pedal, Great to Great 16', Great to Great 4', Choir to Choir 16', Choir to Choir 4', Choir Unison Off, Swell to Swell 16', Swell to Swell 4', Swell Unison Off.
Photo: Piet Bron
Philadelphia, USA (Pennsylvania) - Saint Francis Xavier Catholic Church - The Oratory
Municipal: Philadelphia
Region:Philadelphia County
Address: 2319 Green Street, Fairmount, 19130, Philadelphia, PA
Website: http://www.sfxoratory.org/
Description nr.: 2057528.
Built by: Hook & Hastings (1898) - opus 1812
| Year | Builder | Opus | Activity | 1898 | Hook & Hastings | 1812 | new organ | 1907 | Hook & Hastings | 2139 | enlargement | ca. 1970 | Tellers Organ Company | rebuild |
De kerk van Saint Francis Xavier in Philadelphia is gewijd op 18 december 1898. De firma Hook & Hastings plaatste een orgel in de kerk, opus 1812 van de firma. In 1907 werd het door dezelfde firma uitgebreid (opus 2139). Het orgel is in de jaren rond 1970 door de firma Tellers herbouwd.
Technical data
| Number of stops per division | |
| - Great | 7 |
| - Choir | 6 |
| - Swell | 9 |
| - Pedal | 4 |
| Total number of stops | 26 |
| Key action | Electrical |
| Stop action | Electrical |
| Windchest(s) | Cone chests |
Specification
Great: Open Diapason 8', Doppel Flute 8', Octave 4', Twelfth 2 2/3', Fifteenth 2', Mixture 4 ranks, Trumpet 8'.
Choir: Geigen 8', Melodia 8', Dulciana 8', Flute d'Amour 4', Dulcet 4', Dulcet 2', Tremolo.
Swell: Open Diapason 8', Stopped Diapason 8', Salicional 8', Aeoline 8', Vox Celeste 8', Harmonic Flute 4', Violina 4', Oboe 8', Vox Humana 8', Tremolo.
Pedal: Open Diapason 16', Bourdon 16', Dulciana 16', Flute 8'.
Couplers: Choir to Great, Choir to Great 16', Choir to Great 4', Swell to Great, Swell to Great 16', Swell to Great 4', Swell to Choir, Swell to Choir 16', Swell to Choir 4', Great to Pedal, Choir to Pedal, Swell to Pedal, Great to Great 16', Great to Great 4', Choir to Choir 16', Choir to Choir 4', Choir Unison Off, Swell to Swell 16', Swell to Swell 4', Swell Unison Off.
 |
 |
 |
 |
 |
 |
 |
