Ausführliche Beschreibung der vorgewählten Orgel

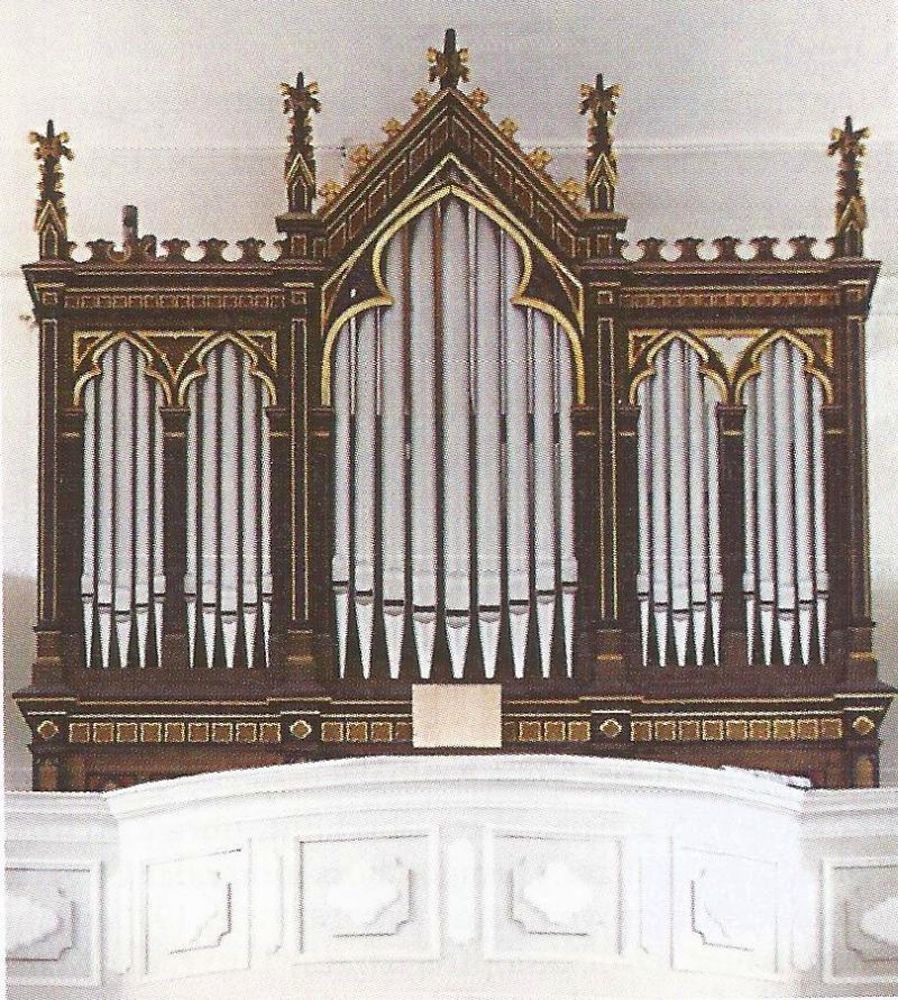

Bild: Gert Rothe
Boritz, Deutschland (Sachsen) - Evangelisch-Lutherische Kirche
Gemeinde: Hirschstein
Adresse: Schulstraße, 1594, Boritz
Beschreibung nr.: 2031670.
Gebaut von: Richard Kreutzbach (1888) - Opus 54
Technische Daten
Disposition
Hauptwerk (C-f'''): Bordun 16', Prinzipal 8', Viola di Gamba 8', Rohrflöte 8', Principal 4', Quinte 2 2/3' (1887/1983), Octave 2', Mixtur 3 fach (2').
Oberwerk (C-f'''): Hohlflöte 8', Gedackt 8', Aeoline 8' - 1925, Gemshorn 4', Piccolo 2'.
Pedal (C-d'): Subbass 16', Principalbass 8', Violoncello 8'.
Koppeln: Manualcoppel, Pedalcoppel.
Nebenregister und Spielhilfen: Fortissimo, Calcantenzug.
Bild: Gert Rothe
Boritz, Deutschland (Sachsen) - Evangelisch-Lutherische Kirche
Gemeinde: Hirschstein
Adresse: Schulstraße, 1594, Boritz
Beschreibung nr.: 2031670.
Gebaut von: Richard Kreutzbach (1888) - Opus 54
| Jahr | Orgelbauer | Opus | Aktivität | 1888 | Richard Kreutzbach | 54 | Neubau | 1925 | Jehmlich Orgelbau | Restaurierung und Vergrößerung | 1983 | Johannes Lindner | Restaurierung |
- At the end of 1887, Richard Kreutzbach completed a new organ for the village church in Boritz. It was inspected by prof.dr. Longer on December 22, 1887.
- The original prospect pipes were removed in 1917. The Jehmlich company carried out a restoration in the years 1924-1925. New zinc front pipes were installed. Furthermore, Jehmlich modified the disposition: the Quint 2 2/3' of the first keyboard was converted and placed on a pneumatic chest. The Aeoline 8' of the second keyboard was placed on the empty place, but was transformed into a Voix Celeste. On the second manual a new Aeoline was installed.
- In 1983 Johannes Lindner carried out a restoration. The Voix Celeste was removed as well as the extra chest. The Quinte has been reconstructed on the example of the Kreutzbach organ in Oberschöna.
Technische Daten
| Anzahl Register pro Manual | |
| - Hauptwerk | 8 |
| - Oberwerk | 5 |
| - Pedal | 3 |
| Gesamtzahl der Stimmen | 16 |
| Tastentraktur | Mechanical |
| Registertraktur | Pneumatic |
| Windlade(n) | Slider chests |
| Tonhöhe | a' = 435 Hz |
| Temperatur | Equal temperament |
| Winddruck | 85 mm |
Disposition
Hauptwerk (C-f'''): Bordun 16', Prinzipal 8', Viola di Gamba 8', Rohrflöte 8', Principal 4', Quinte 2 2/3' (1887/1983), Octave 2', Mixtur 3 fach (2').
Oberwerk (C-f'''): Hohlflöte 8', Gedackt 8', Aeoline 8' - 1925, Gemshorn 4', Piccolo 2'.
Pedal (C-d'): Subbass 16', Principalbass 8', Violoncello 8'.
Koppeln: Manualcoppel, Pedalcoppel.
Nebenregister und Spielhilfen: Fortissimo, Calcantenzug.
| Literatur |
|
| Weblinks |
https://kirchenbezirk-meissen-grossenhain.de/wp-content/uploads/2019/11/Boritz.pdf |
