Complete description of the selected organ
Photo: Bert Wisgerhof
Mettlach, Deutschland (Saarland) - Katholische Pfarr- und Wallfahrtskirche Sankt Lutwinus
Municipal: Mettlach
Address: Gangolfer Straße, 66693, Mettlach
Description nr.: 2024639.
Built by: Manufacture Lorraine des Grandes Orgues Haerpfer & Erman (1957)
The organ contains older material: Pipes from 1904 by Heinrich Koulen & Sohn
Technical data
Specification
Hauptwerk (C-g'''): Bourdon 16' - 1904, Principal 8', Gedeckt 8' - 1904, Gemshorn 8' - 1904, Octave 4', Blockflöte 4', Quinte 2 2/3' - 1904, Superoctave 2', Terz 1 3/5', Mixtur 4-6 fach, Trompete 8' - 1904.
Positif (C-g'''): Koppelflöte 8', Quintatön 8', Italienisch Principal 4', Rohrflöte 4', Offenflöte 2', Quinte 1 1/3', Nachthorn 1', Cymbel 3 fach, Krummhorn 8', Kopfregal 4', Tremolo, Glocken - prepared.

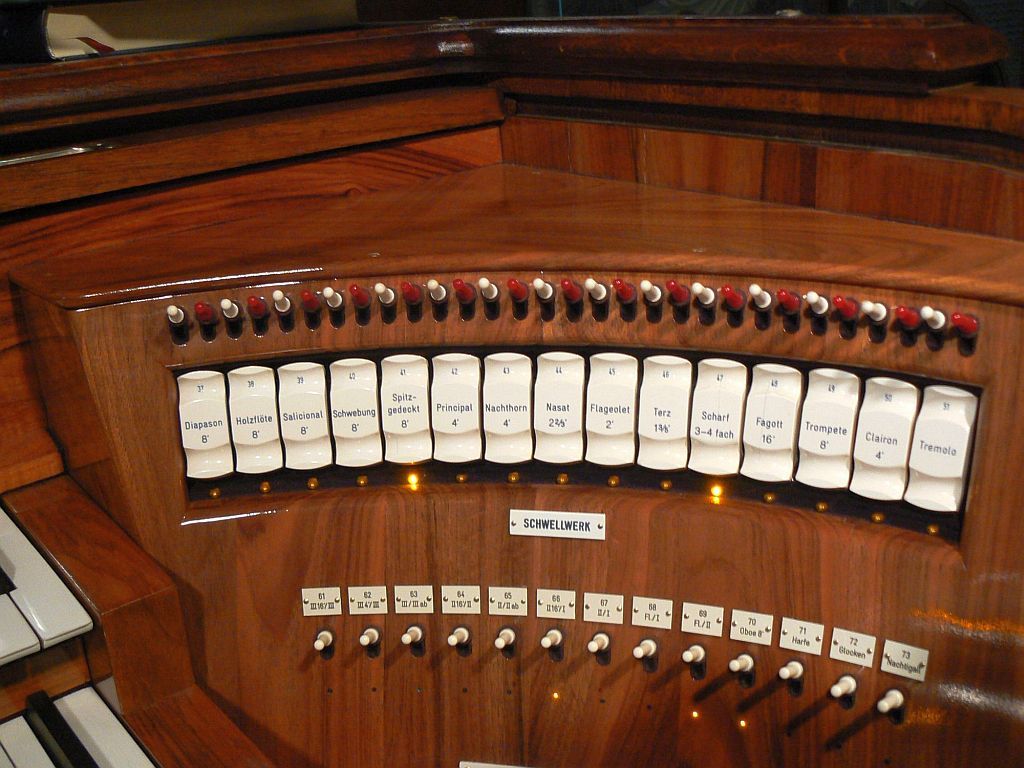

Schwellwerk (C-g'''): Diapason 8' - 1904, Holzflöte 8' - 1904, Salicional 8' - 1904, Schwebung 8' - 1904, Spitzgedeckt 8', Principal 4', Nachthorn 4', Nasat 2 2/3' - 1904, Flageolet 2' - 1904, Terz 1 3/5' - 1904, Scharf 3-4 fach, Fagott 16' - 2007, Oboe 8' - 2007, Trompete 8', Clairon 4', Tremolo, Harfe - prepared.
Auxiliar (C-g'''): Soloflöte 8' - 1904, Tuba Magna 8' - 2007; 500 mm.

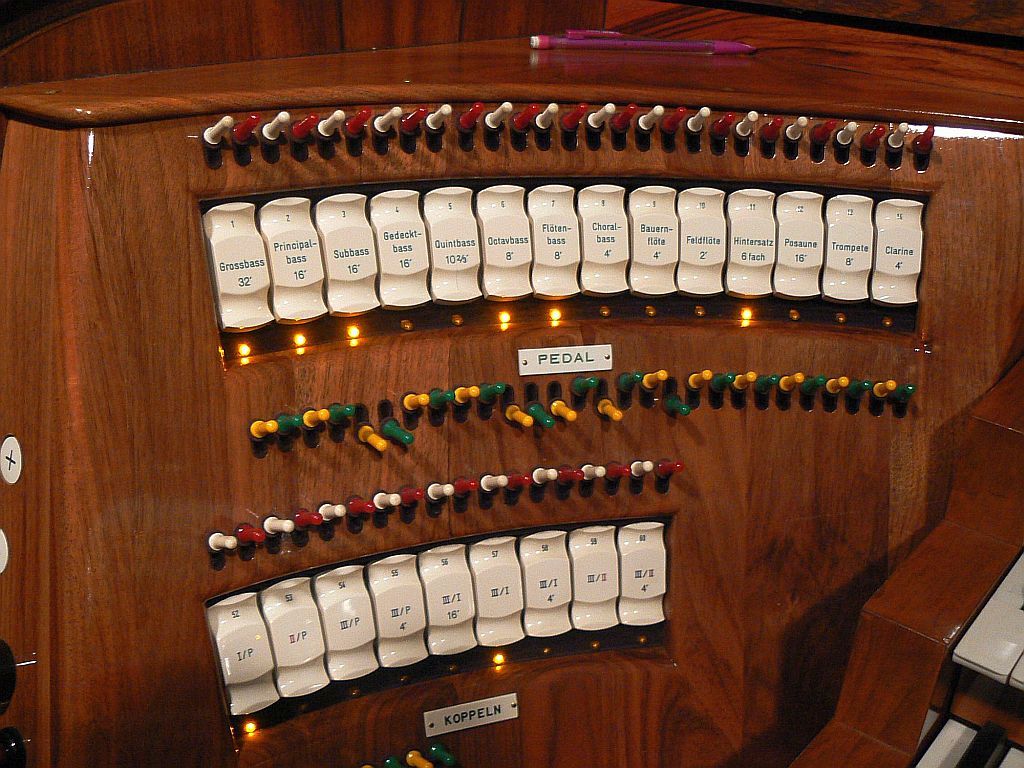

Pedal (C-f'): Grossbass 32' - extension, Principalbass 16', Subbass 16' - 1904, Gedecktbass 16' - 1904, Quintbass 10 2/3' - 1904, Octavbass 8', Flötenbass 8' - extension, Choralbass 4' - 1904, Bauernflöte 4' - 2007, Feldflöte 2' - 2007; extension, Hintersatz 6 fach, Posaune 16', Trompete 8', Clarine 4'.
Other stops: Nachtigall - 2007.
Couplers: Hauptwerk - Positif, Hauptwerk - Positif 16', Hauptwerk - Positif 4', Hauptwerk - Schwellwerk, Hauptwerk - Schwellwerk 16', Hauptwerk - Schwellwerk 4', Positif - Schwellwerk, Positif - Schwellwerk 4', Pedal - Hauptwerk, Pedal - Positif, Pedal - Schwellwerk, Pedal - Schwellwerk 4', Positif - Positif 16', Schwellwerk - Schwellwerk 16'.
Accessories: 4x1000 Setzerkombinationen, 2 freie Kombinationen, 2 Pedalkombinationen, Tutti, Walze Ab, Mixturen Ab, Zungen Ab.
Photo: Bert Wisgerhof
Mettlach, Deutschland (Saarland) - Katholische Pfarr- und Wallfahrtskirche Sankt Lutwinus
Municipal: Mettlach
Address: Gangolfer Straße, 66693, Mettlach
Description nr.: 2024639.
Built by: Manufacture Lorraine des Grandes Orgues Haerpfer & Erman (1957)
The organ contains older material: Pipes from 1904 by Heinrich Koulen & Sohn
| Year | Builder | Opus | Activity | 1957 | Manufacture Lorraine des Grandes Orgues Haerpfer & Erman | new organ | 2007 | Bernhard Kutter | restoration |
- In 1956-1957 the company Haerpfer-Erman built a new organ for the Sankt Lutwinuskirche in Mettlach. A large part of the pipework was taken from the old organ, an instrument by Koulen from 1904. The organ has three manuals and pedal. On the Sunday of the Trinity, June 16, 1957, the organ was inaugurated with a concert by Josef Zimmermann, organist of the Cologne Cathedral.
- In December 2005 Bernhard Kutter started a thorough overhaul of the instrument. The electro-pneumatic action has been replaced by a new electric action, the voicing of the pipework has been revised, and the wind supply has been improved. Furthermore, some alterations in the disposition have been made. For example, the Fagott 16' of the Schwellwerk was modified into an Oboe 8', the composition of the mixed ranks was changed. A new flute series was placed on the pedal, while the old Flute was placed as Soloflöte 8' on a separate wind chest as 'Auxiliar Werk'. This register can be selected at the Hauptwerk as well as the Rückpositiv. On August 26, 2007, Winfried Bönig, organist of the Cologne Cathedral, played the inaugution concert.
Technical data
| Number of stops per division | |
| - Hauptwerk | 11 |
| - Positif | 10 |
| - Schwellwerk | 15 |
| - Auxiliar | 2 |
| - Pedal | 14 |
| Total number of stops | 52 |
| Key action | Electrical |
| Stop action | Electrical |
| Windchest(s) | Cone chests |
| Pitch | a' = 440 Hz |
| Temperament | Equal temperament |
| Wind pressure | 70 mm (Hauptwerk), 72 mm (Positif), 84 mm (Schwellwerk) , 92 mm (Pedal, Hauptwerk-Trompete from b° and Soloflöte), 500 mm (Tuba Magna) |
Specification
Hauptwerk (C-g'''): Bourdon 16' - 1904, Principal 8', Gedeckt 8' - 1904, Gemshorn 8' - 1904, Octave 4', Blockflöte 4', Quinte 2 2/3' - 1904, Superoctave 2', Terz 1 3/5', Mixtur 4-6 fach, Trompete 8' - 1904.
Positif (C-g'''): Koppelflöte 8', Quintatön 8', Italienisch Principal 4', Rohrflöte 4', Offenflöte 2', Quinte 1 1/3', Nachthorn 1', Cymbel 3 fach, Krummhorn 8', Kopfregal 4', Tremolo, Glocken - prepared.
Schwellwerk (C-g'''): Diapason 8' - 1904, Holzflöte 8' - 1904, Salicional 8' - 1904, Schwebung 8' - 1904, Spitzgedeckt 8', Principal 4', Nachthorn 4', Nasat 2 2/3' - 1904, Flageolet 2' - 1904, Terz 1 3/5' - 1904, Scharf 3-4 fach, Fagott 16' - 2007, Oboe 8' - 2007, Trompete 8', Clairon 4', Tremolo, Harfe - prepared.
Auxiliar (C-g'''): Soloflöte 8' - 1904, Tuba Magna 8' - 2007; 500 mm.
Pedal (C-f'): Grossbass 32' - extension, Principalbass 16', Subbass 16' - 1904, Gedecktbass 16' - 1904, Quintbass 10 2/3' - 1904, Octavbass 8', Flötenbass 8' - extension, Choralbass 4' - 1904, Bauernflöte 4' - 2007, Feldflöte 2' - 2007; extension, Hintersatz 6 fach, Posaune 16', Trompete 8', Clarine 4'.
Other stops: Nachtigall - 2007.
Couplers: Hauptwerk - Positif, Hauptwerk - Positif 16', Hauptwerk - Positif 4', Hauptwerk - Schwellwerk, Hauptwerk - Schwellwerk 16', Hauptwerk - Schwellwerk 4', Positif - Schwellwerk, Positif - Schwellwerk 4', Pedal - Hauptwerk, Pedal - Positif, Pedal - Schwellwerk, Pedal - Schwellwerk 4', Positif - Positif 16', Schwellwerk - Schwellwerk 16'.
Accessories: 4x1000 Setzerkombinationen, 2 freie Kombinationen, 2 Pedalkombinationen, Tutti, Walze Ab, Mixturen Ab, Zungen Ab.
| Literature |
|
 |
 |
 |
 |
 |
 |
