Complete description of the selected organ

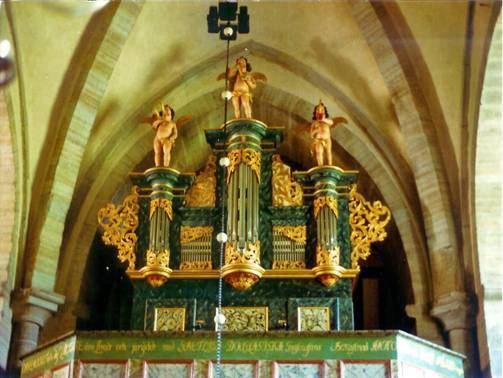

Photo: Joep van Koert
Vreta, Sverige (Östergötlands län) - Vreta Klosters Kyrka
Municipal: Linköpings Kommun
Region:Östergötland
Address: Vreta Kloster Klostergården, 590 76, Vreta Kloster
Description nr.: 2022383.
Built by: Hammarbergs Orgelbyggeri AB (1941)
The organ contains older material: Organ case from 1747 by Jonas Wistenius
Technical data
Specification
Manual I: Kvintadena 16', Principal 8', Viola di Gamba 8', Gedackt 8', Oktava 4', Flûte Octaviante 4', Kvinta 2 2/3', Oktava 2', Mixtur 4 chor, Trumpet 8'.
Manual II: Salicional 8', Voix Céleste 8', Rörflöjt 8', Principal 4', Gemshorn 4', Nasard 2 2/3', Blockflöjt 2', Ters 1 3/5', Kvartian 2 chor, Krumhorn 8'.
Pedal: Subbas 16', Gedacktpommer 16', Oktava 8', Koralbas 4', Dulcian 16'.
Couplers: Manual I - Manual II, Manual I - Manual II 4', Manual II - Manual II 16', Pedal - Manual I, Pedal - Manual II, Pedal - Manual II 4'.
Accessories: 2 fria Kombinationer, Tutti, Crescendosvällare, Registersvällare, Automatisk pedalväxling, Tungstämmor från.
Photo: Joep van Koert
Vreta, Sverige (Östergötlands län) - Vreta Klosters Kyrka
Municipal: Linköpings Kommun
Region:Östergötland
Address: Vreta Kloster Klostergården, 590 76, Vreta Kloster
Description nr.: 2022383.
Built by: Hammarbergs Orgelbyggeri AB (1941)
The organ contains older material: Organ case from 1747 by Jonas Wistenius
| Year | Builder | Opus | Activity | 1747 | Jonas Wistenius | new organ | 1865 | Per Larsson Åkerman | new organ | 1917 | Åkerman & Lund | new organ in old case | 1941 | Hammarbergs Orgelbyggeri AB | new organ in old case |
- The old monastery church of Vreta belonged to a Benedictine monastery, which has long since fallen into ruin. However, after the Reformation, the church was furnished for Protestant worship. Jonas Wistenius built an organ for the church in the years 1745-1747.
- In 1865 a new organ was built by Per Larsson Åkerman. He placed the old organ case with the prospect pipes in the choir of the church. Åkerman & Lund supplied a new twelve-stop organ in 1917, which was placed behind the facade of Wistenius on the original location on the west side of the church.
- In 1941 Olof Hammarberg built a larger organ with 25 stops, reusing the old front and some of the pipework from 1865 and 1917. This work was in poor condition around 1980 and was dismantled. Since then, Wistenius' empty organ case with prospect pipes is standing on the gallery.
- The specification given is of the Hammarberg organ.
Technical data
| Number of stops per division | |
| - Manual I | 10 |
| - Manual II | 10 |
| - Pedal | 5 |
| Total number of stops | 25 |
| Key action | Pneumatic |
| Stop action | Pneumatic |
| Windchest(s) | Cone chests |
Specification
Manual I: Kvintadena 16', Principal 8', Viola di Gamba 8', Gedackt 8', Oktava 4', Flûte Octaviante 4', Kvinta 2 2/3', Oktava 2', Mixtur 4 chor, Trumpet 8'.
Manual II: Salicional 8', Voix Céleste 8', Rörflöjt 8', Principal 4', Gemshorn 4', Nasard 2 2/3', Blockflöjt 2', Ters 1 3/5', Kvartian 2 chor, Krumhorn 8'.
Pedal: Subbas 16', Gedacktpommer 16', Oktava 8', Koralbas 4', Dulcian 16'.
Couplers: Manual I - Manual II, Manual I - Manual II 4', Manual II - Manual II 16', Pedal - Manual I, Pedal - Manual II, Pedal - Manual II 4'.
Accessories: 2 fria Kombinationer, Tutti, Crescendosvällare, Registersvällare, Automatisk pedalväxling, Tungstämmor från.
| Other specifications | |
|---|---|
| Different specifications |
The original specification was (according to the contract): Manual: Gedact 8', Principal 4', Gemshorn 4', Fleut 4', Quinta 3', Octava 2', SpitsFleut 2', Trompet 8'. Pedal: Bihänd. Sperrventil. |
| Literature |
Sveriges kyrkorglar / Sten L. Carlsson. - Lund : Håkan Ohlssons, 1973. |
| Links |
https://sv.wikipedia.org/wiki/Vreta_klosters_kyrka#Orglar |
