Description complète d'orgue sélectionné
Photo: Tjalling Roosjen
Zürich, Die Schweiz / La Suisse (Zürich) - Bühlkirche (Wiedikon)
Commune: Zürich
Adresse: Bühlstrasse, 8055, Zürich-Wiedikon
Site Web: http://www.kirche-wiedikon.ch/
Description no.: 2016392.
Bâti par: Friedrich Goll Orgelbau AG (1897) - opus 154
Données techniques
Composition
Hauptwerk (C-g'''): Principal 16', Bourdon 16', Principal 8', Gambe 8', Gedackt 8', Octav 4', Flöte 4', Quinte 2 2/3', Octav 2', Cornett 5 fach (8'), Mixtur 5 fach (2'), Trompete 8'.
Positiv (C-g'''): Geigenprincipal 8', Gedackt 8', Octav 4', Flöte 4', Nazard 2 2/3', Waldflöte 2', Terzflöte 1 3/5', Mixtur 3-4 fach (1 1/3'), Clarinette 8'.
Schwellwerk (C-g'''): Bourdon 16', Principal 8', Flöte 8', Salicional 8', Voix Céleste 8' (from c°), Octav 4', Offenflöte 4', Nazard 2 2/3', Flageolett 2', Larigot 1 1/3', Harmonica Aetherea 3 fach (2'), Trompete 8', Oboe 8', Clairon 4', Tremulant.
Pedal (C-f'): Principalbaß 16', Subbaß 16', Harmonicabaß 16', Octavbaß 8', Violoncello 8', Octav 4', Mixtur 4 fach (2 2/3'), Posaune 16', Trompete 8'.
Accouplements: Hauptwerk - Positiv, Hauptwerk - Schwellwerk, Positiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Positiv, Pedal - Schwellwerk.
Jouer conseils: 3000 Setzerkombinationen - 2003.
Autres sources
Photo: Tjalling Roosjen
Zürich, Die Schweiz / La Suisse (Zürich) - Bühlkirche (Wiedikon)
Commune: Zürich
Adresse: Bühlstrasse, 8055, Zürich-Wiedikon
Site Web: http://www.kirche-wiedikon.ch/
Description no.: 2016392.
Bâti par: Friedrich Goll Orgelbau AG (1897) - opus 154
Année | Facteur | Opus | Activité | 1897 | Friedrich Goll Orgelbau AG | 154 | orgue neuf | 1928 | Friedrich Goll Orgelbau AG | conversion | 1961 | Friedrich Goll Orgelbau AG | expansion | 1972 | Orgelbau Kuhn AG | expansion | 1984 | Orgelbau Kuhn AG | restauration | 2003 | Orgelbau Kuhn AG | activités différentes |

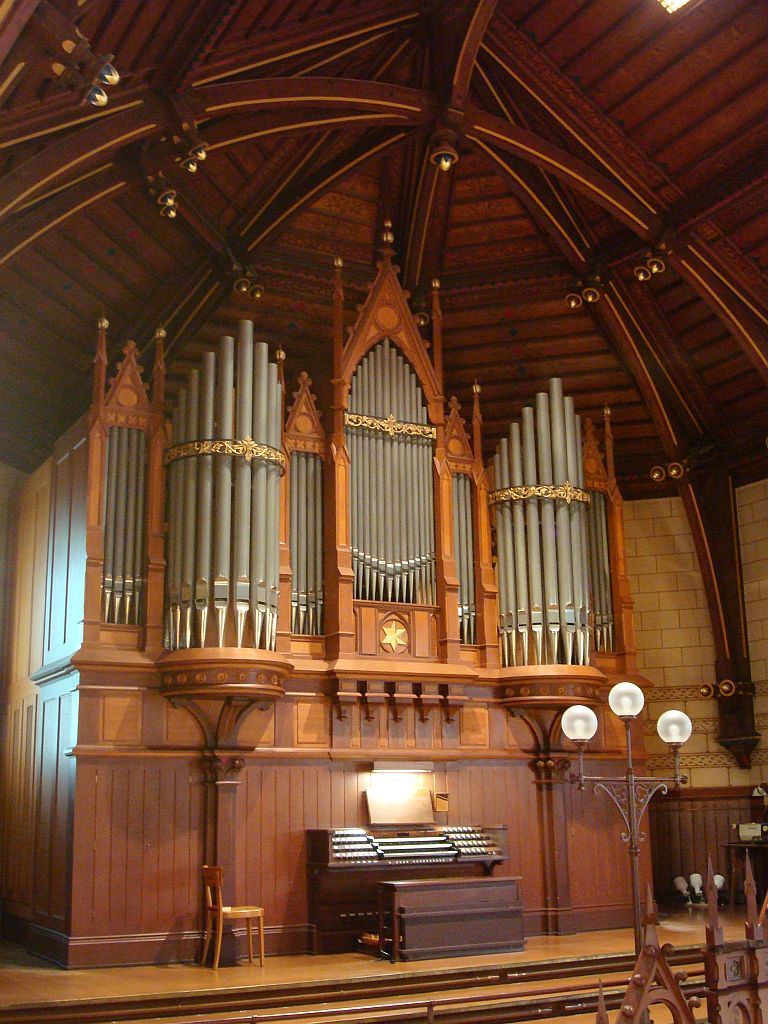

- The neo-gothic Bühlkirche in Wiedikon was built in the years 1895-1896 to a design by Paul Reber. The church was opened on November 29, 1896. Friedrich Goll built an organ for the church, which was placed in a neo-Gothic organ case above the pulpit. The organ was built with cone chests and pneumatic action. It was converted in 1928 and expanded in 1961 and 1972.
- In 1984 the company Kuhn carried out a thorough restoration. The organ was put back into use on January 13, 1985. Kuhn rebuilt the organ with new mechanical action and electric slider chests. The organ received a modern setzer installation with 32 combination options. This was replaced in 2003 by a modern computer-controlled setzer with 3000 combinations.
Données techniques
Nombre de registres par manuel | |
- Hauptwerk | 12 |
- Positiv | 9 |
- Schwellwerk | 14 |
- Pedal | 9 |
Nombre de jeux total | 44 |
Transmission des clés | Mechanical |
Transmission des jeux | Electrical |
Sommier(s) | Slider chests |
Composition
Hauptwerk (C-g'''): Principal 16', Bourdon 16', Principal 8', Gambe 8', Gedackt 8', Octav 4', Flöte 4', Quinte 2 2/3', Octav 2', Cornett 5 fach (8'), Mixtur 5 fach (2'), Trompete 8'.
Positiv (C-g'''): Geigenprincipal 8', Gedackt 8', Octav 4', Flöte 4', Nazard 2 2/3', Waldflöte 2', Terzflöte 1 3/5', Mixtur 3-4 fach (1 1/3'), Clarinette 8'.
Schwellwerk (C-g'''): Bourdon 16', Principal 8', Flöte 8', Salicional 8', Voix Céleste 8' (from c°), Octav 4', Offenflöte 4', Nazard 2 2/3', Flageolett 2', Larigot 1 1/3', Harmonica Aetherea 3 fach (2'), Trompete 8', Oboe 8', Clairon 4', Tremulant.
Pedal (C-f'): Principalbaß 16', Subbaß 16', Harmonicabaß 16', Octavbaß 8', Violoncello 8', Octav 4', Mixtur 4 fach (2 2/3'), Posaune 16', Trompete 8'.
Accouplements: Hauptwerk - Positiv, Hauptwerk - Schwellwerk, Positiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Positiv, Pedal - Schwellwerk.
Jouer conseils: 3000 Setzerkombinationen - 2003.
Autres données des dispositions | |
---|---|
Autres dispositions |
De oorspronkelijke dispositie luidde: I. Manual: Principal 16', Bourdon 16', Principal 8', Gamba 8', Gedeckt 8', Flauto Dolce 8', Octav 4', Flöte 4', Octav 2', Cornett 3-5 fach (8'), Mixtur 5 fach (2 2/3'), Trompete 8'. II. Manual: Lieblich Gedeckt 16', Geigenprincipal 8', Conzertflöte 8', Viola 8', Bourdon 8', Dolce 8', Gemshorn 4', Traversflöte 4', Harmonica Aetherea 2 2/3', Clarinette 8'. III. Manual: Bourdon d'echo 8', Aeoline 8', Salicional 8', Voix Celeste 8', Vox Humana 8'. Pedal: Principalbaß 16', Subbaß 16', Harmonica 16', Octavbaß 8', Violoncello 8', Bombard 16'. Speelhulpen: 2 Manualkoppeln, 2 Pedalkoppeln, 4 Festkombinationen (p, mf, f, ff). |
Enregistrements |
J. G. Rheinberger: Orgelsonaten Nr. 3, 4 und 8; / Conrad Zwicky. - WieDISCon Records WD 9434 (CD). - 2001. |
Lièns |
https://www.orgelbau.ch/op=112920 http://www.orgel-zh.ch/01_standort/02_orgel.htm?orgel_id=55 |
- Jörg R. Becker
|
|
|
|
