Complete description of the selected organ
Photo: Arno Bekers

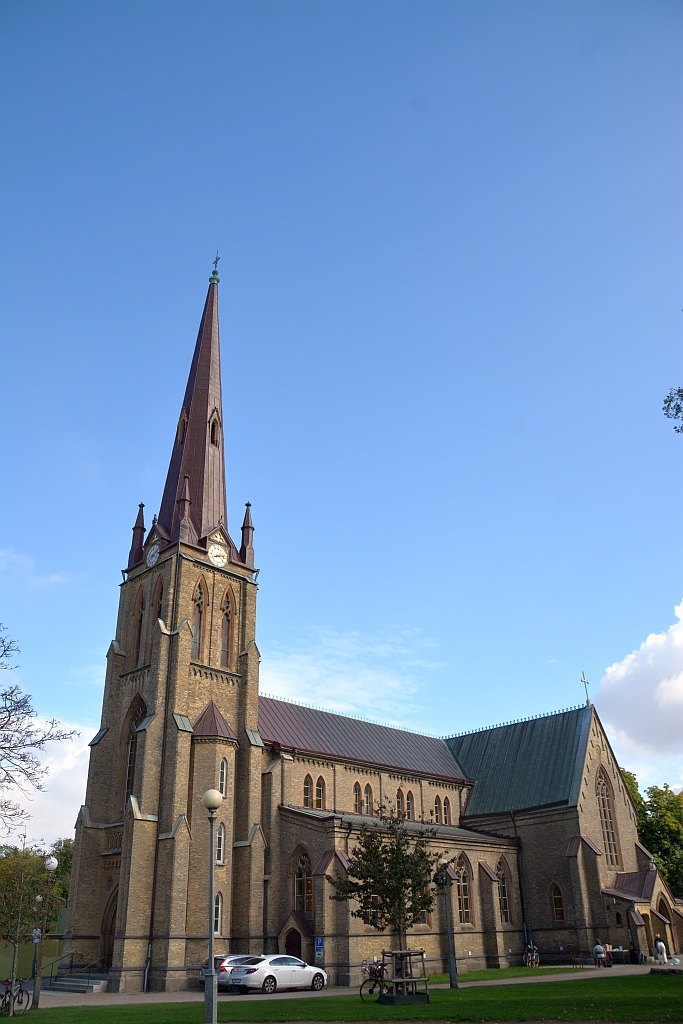

Göteborg, Sverige (Västra Götalands län) - Haga Kyrka
Municipal: Göteborgs Kommun
Region:Västergötland, Göteborg og Bohus
Address: Haga Östergata 30, 411 22, Göteborg
Website: https://www.svenskakyrkan.se/haga
Description nr.: 2010637.
Built by: Marcussen & Søn (1861)

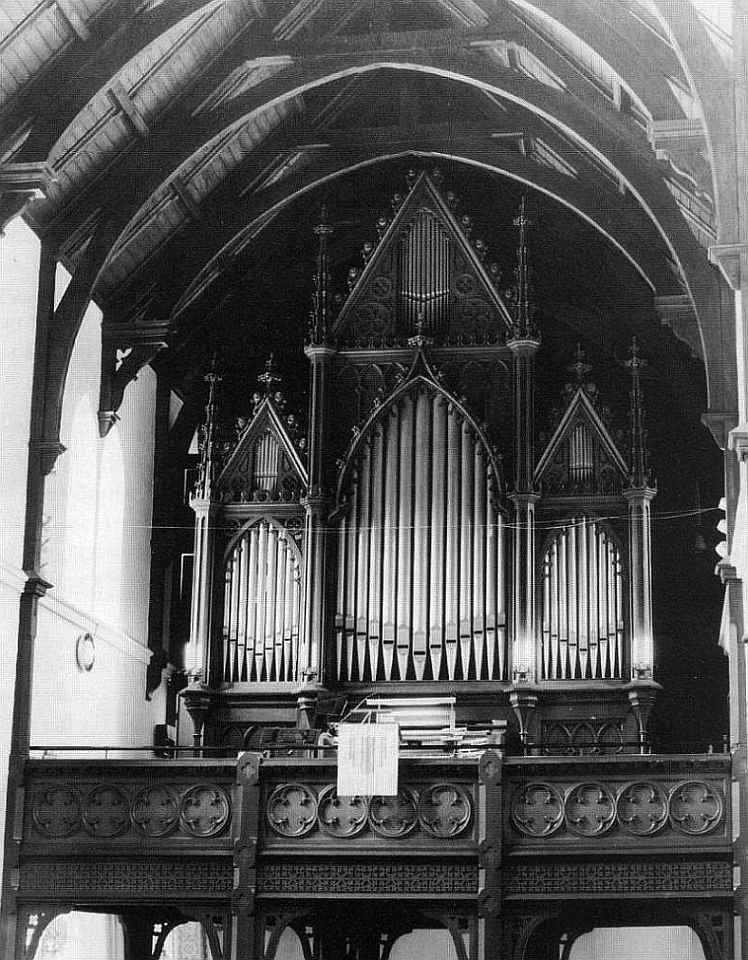

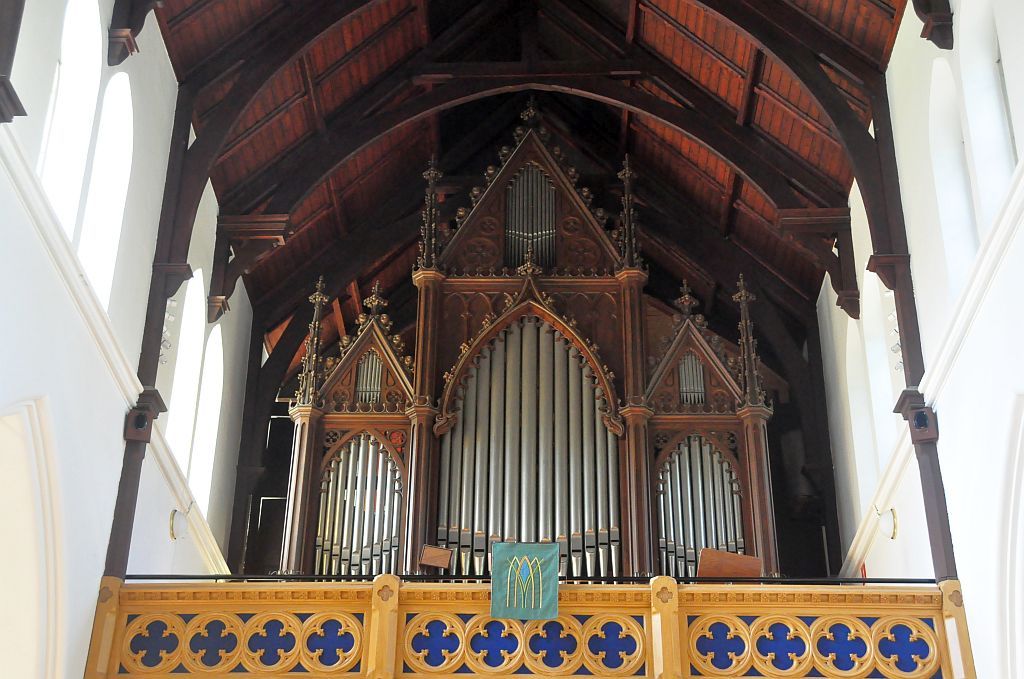

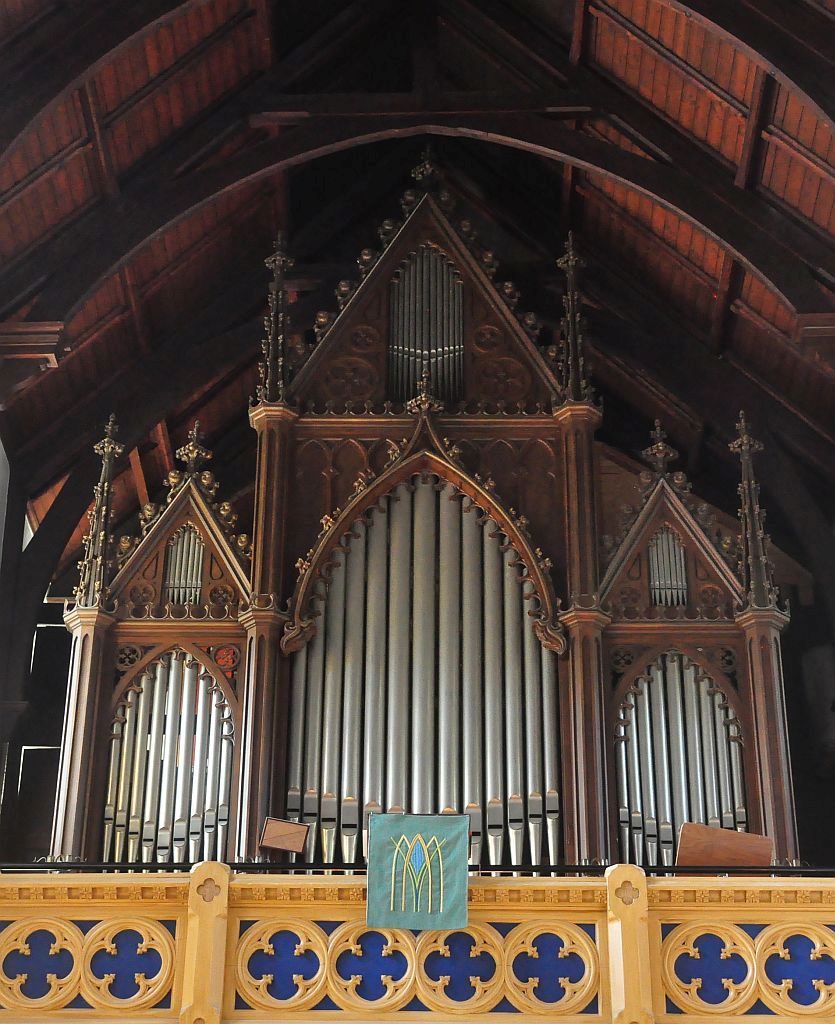

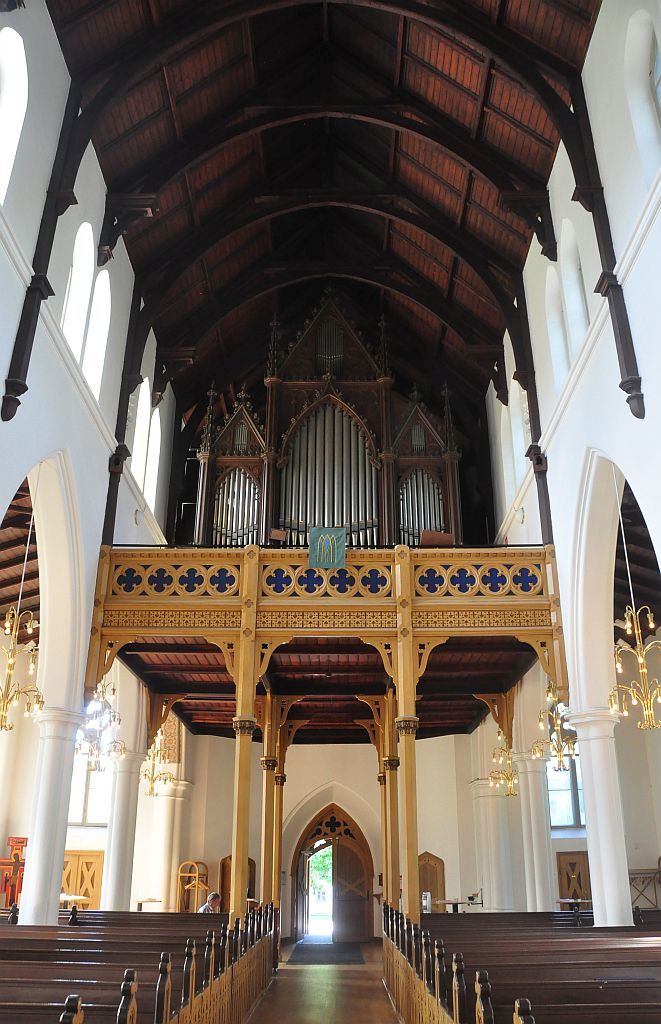

The old organ in Haga Kyrka was built in 1861 by the firm of Marcussen & Søn. The instrument has no slider chests, but mechanical cone chests, reconstructed in 2004. The original cone chests were replaced by Roosevelt chests in 1911 by Johannes Magnusson. Magnussons Orgelbyggeri expanded the organ in 1946. Åkerman & Lund carried out a restoration in 2004. The following registers were also made new: the two Trumpets of Manual I, the Dolcian 8' of Man. II, the Bordunquinte, the Violoncello and the two Posaunes of the pedal.
Technical data
Specification
Huvudverk (C-f'''): Principal 16' - C-Dis from Borduna, Borduna 16', Principal 8', Flöte Major 8', Viola di Gamba 8' - C-B from Principal, Octav 4', Gemshorn 4', Quinte 2 2/3', Superoctave 2', Cornett 3 chor, Mixtur 4 chor (2'), Trompete 16' - 2004, Trompete 8' - 2004.
Svällverk (C-f'''): Gedackt 16', Principal 8', Corno di Bassetti 8' - C-B from Principal, Doppelflöte 8', Octav 4', Rohrflöte 4', Superoctave 2', Trompete 8', Dolcian 8' - 2004.
Öververk (C-f'''): Salicional 8', Fugara 8' - C-B from Salicional, Gedackt 8', Flûte Amabile 8' - C-B from Gedackt, Vox Angelica 4', Flûte Dolce 4'.
Pedal (C-f'): Untersatz 32', Principal 16', Subbas 16', Bordunquinte 10 2/3' - 2004, Principal 8', Violoncello 8' - 2004, Gedackt 8', Octav 4', Posaune 16' - 2004, Posaune 8' - 2004.
Couplers: Huvudverk - Svällverk, Huvudverk - Öververk, Pedal - Huvudverk, Pedal - Svällverk.
Accessories: Huvudverk Forte, Pedal Forte, Barkermaskin Manual I, Barkermaskin Manual II.
Photo: Arno Bekers
Göteborg, Sverige (Västra Götalands län) - Haga Kyrka
Municipal: Göteborgs Kommun
Region:Västergötland, Göteborg og Bohus
Address: Haga Östergata 30, 411 22, Göteborg
Website: https://www.svenskakyrkan.se/haga
Description nr.: 2010637.
Built by: Marcussen & Søn (1861)
| Year | Builder | Opus | Activity | 1861 | Marcussen & Søn | new organ | 1911 | Magnussons Orgelbyggeri AB | rebuild | 1946 | Magnussons Orgelbyggeri AB | enlargement | 2004 | Åkerman & Lund | reconstruction |
The old organ in Haga Kyrka was built in 1861 by the firm of Marcussen & Søn. The instrument has no slider chests, but mechanical cone chests, reconstructed in 2004. The original cone chests were replaced by Roosevelt chests in 1911 by Johannes Magnusson. Magnussons Orgelbyggeri expanded the organ in 1946. Åkerman & Lund carried out a restoration in 2004. The following registers were also made new: the two Trumpets of Manual I, the Dolcian 8' of Man. II, the Bordunquinte, the Violoncello and the two Posaunes of the pedal.
Technical data
| Number of stops per division | |
| - Huvudverk | 13 |
| - Svällverk | 9 |
| - Öververk | 6 |
| - Pedal | 10 |
| Total number of stops | 38 |
| Key action | Mechanical |
| Stop action | Mechanical |
| Windchest(s) | Cone chests |
| Pitch | a' = 441 Hz |
| Temperament | Equal temperament |
Specification
Huvudverk (C-f'''): Principal 16' - C-Dis from Borduna, Borduna 16', Principal 8', Flöte Major 8', Viola di Gamba 8' - C-B from Principal, Octav 4', Gemshorn 4', Quinte 2 2/3', Superoctave 2', Cornett 3 chor, Mixtur 4 chor (2'), Trompete 16' - 2004, Trompete 8' - 2004.
Svällverk (C-f'''): Gedackt 16', Principal 8', Corno di Bassetti 8' - C-B from Principal, Doppelflöte 8', Octav 4', Rohrflöte 4', Superoctave 2', Trompete 8', Dolcian 8' - 2004.
Öververk (C-f'''): Salicional 8', Fugara 8' - C-B from Salicional, Gedackt 8', Flûte Amabile 8' - C-B from Gedackt, Vox Angelica 4', Flûte Dolce 4'.
Pedal (C-f'): Untersatz 32', Principal 16', Subbas 16', Bordunquinte 10 2/3' - 2004, Principal 8', Violoncello 8' - 2004, Gedackt 8', Octav 4', Posaune 16' - 2004, Posaune 8' - 2004.
Couplers: Huvudverk - Svällverk, Huvudverk - Öververk, Pedal - Huvudverk, Pedal - Svällverk.
Accessories: Huvudverk Forte, Pedal Forte, Barkermaskin Manual I, Barkermaskin Manual II.
| Compound stop | Composition |
| Mixtur 4 chor (Huvudverk) | C: 2' - 1 1/3' - 1' - 2/3'. c°: 2 2/3' - 2' - 1 1/3' - 1'. c': 4' - 2 2/3' - 2' - 1 1/3'. c'': 5 1/3' - 4' - 2 2/3' - 2'. |
| Cornett 3 chor (Huvudverk) | C: 8' - 5 1/3' - 3 1/5'. |
| Other specifications | |
|---|---|
| Different specifications |
The specification before 2004 was: Manual I: Principal 16', Principal 8', Borduna 8', Viola di Gamba 8', Flauto Major 8', Oktava 4', Gemshorn 4', Quinta 2 2/3', Oktava 2', Cornett 3 chor, Mixtur 5 chor. Manual II (Svällverk): Gedackt 16', Principal 8', Doppelflöjt 8', Kvintadena 8', Oktava 4', Rohrflöjt 4', Nasat 2 2/3', Blockflöjt 2', Larigot 1 3/5', Scharf 3 chor, Oboe 8'. Manual III (Svällverk): Hornprincipal 8', Flauto Amabile 8', Gedackt 8', Salicional 8', Voix Céleste 8', Prestant 4', Nachthorn 4', Vox Angelica 4', Gemshorn 2', Ters 1 3/5', Cymbel 3 chor, Krumhorn 8', Tremulant. Pedal: Untersatz 32', Principal 16', Subbas 16', Principal 8', Gedackt 8', Koralbas 4', Nachthorn 2', Mixtur 3 chor, Basun 16', Skalmeja 4'. Couplers: Manual I - Manual II, Manual I - Manual III, Manual II - Manual III, Pedal - Manual I, Pedal - Manual II, Pedal - Manual III. Accessories: 3 fria Kombinationer, Piano, Tutti, Rull-Svällare. |
| Literature |
|
| Recordings |
J.P.E. Hartmann & Niels W. Gade : Works for Organ / Hans Fagius. - Dacapo 8.226026 (CD). - 2005. |
 |
 |
 |
 |
 |
