Ausführliche Beschreibung der vorgewählten Orgel
Bild: Lothar D. Zickermann

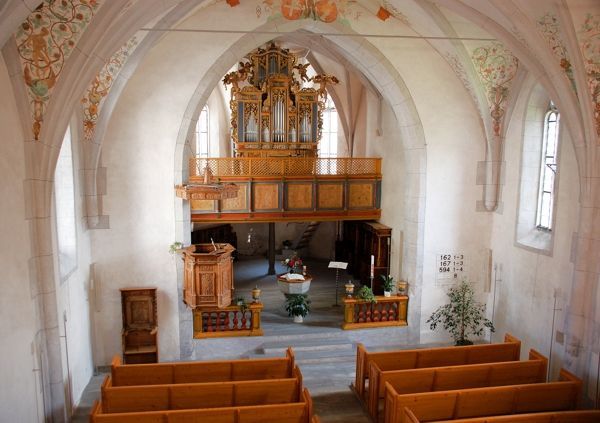

Ilanz, Die Schweiz / La Suisse (Graubünden) - Evangelische Kirche Sankt Margarethen
Gemeinde: Ilanz
Adresse: Städtllistraße 16, 7130, Ilanz
Website: https://ilanz-reformiert.ch/
Beschreibung nr.: 2005213.
Gebaut von: Felsberg Orgelbau (1990) - Opus 103
Die Orgel enthält älteren Material: Organ case aus 1694 von Johann Jakob Messmer

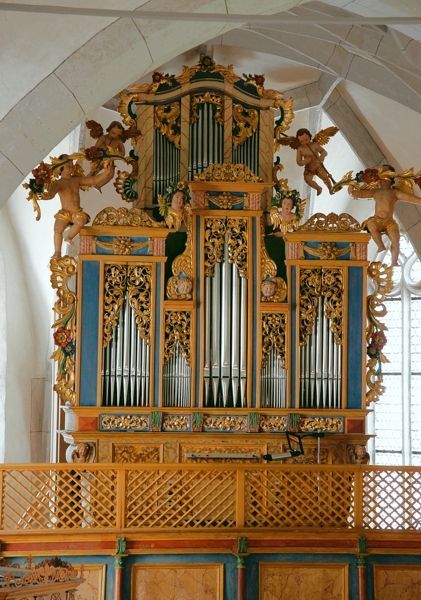

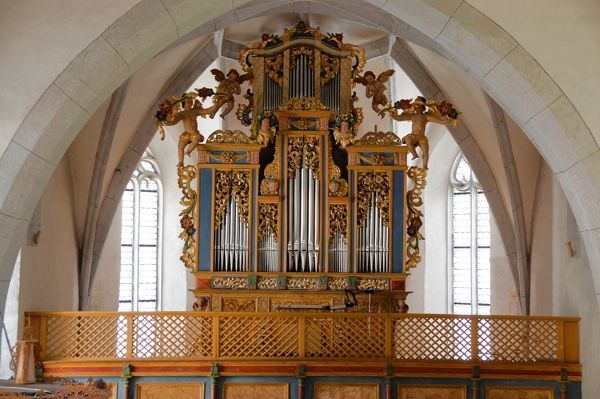

In 1989, the Felsberg company reconstructed the Messmer organ from 1694 in the Evangelische Kirche in Ilanz. The original organ had only one manual with a short octave. In 1765 it was expanded with an Oberwerk and the short octave was abolished. The Felsberg organ was built according to the situation of 1765. However, it is possible to switch the Hauptwerk to a short octave. The organ was dedicated on June 9, 1990.
Technische Daten
Disposition
Hauptwerk (C-f'''): Copel 8', Flöte 8', Principal 4', Spitzflöte 4', Octav 2', Piffaro 2 fach (1 1/3'), Cornett 4 fach (4') (discant), Mixtur 3 fach (1').
Oberwerk (C-f'''): Gedeckt 8', Rohrflöte 4', Principal 2', Quinte 1 1/3', Octav 1'.
Pedal (C-f'): Subbass 16', Principalbass 8', Quintbass 5 1/3', Octav 4', Posaune 8'.
Koppeln: Manualkoppel (Schiebekoppel).
Nebenregister und Spielhilfen: Hauptwerk Umschaltung nach Kurze Oktave.
Bild: Lothar D. Zickermann
Ilanz, Die Schweiz / La Suisse (Graubünden) - Evangelische Kirche Sankt Margarethen
Gemeinde: Ilanz
Adresse: Städtllistraße 16, 7130, Ilanz
Website: https://ilanz-reformiert.ch/
Beschreibung nr.: 2005213.
Gebaut von: Felsberg Orgelbau (1990) - Opus 103
Die Orgel enthält älteren Material: Organ case aus 1694 von Johann Jakob Messmer
Jahr | Orgelbauer | Opus | Aktivität | 1694 | Johann Jakob Messmer | Neubau | 1990 | Felsberg Orgelbau | 103 | Reconstruction |
In 1989, the Felsberg company reconstructed the Messmer organ from 1694 in the Evangelische Kirche in Ilanz. The original organ had only one manual with a short octave. In 1765 it was expanded with an Oberwerk and the short octave was abolished. The Felsberg organ was built according to the situation of 1765. However, it is possible to switch the Hauptwerk to a short octave. The organ was dedicated on June 9, 1990.
Technische Daten
Anzahl Register pro Manual | |
- Hauptwerk | 8 |
- Oberwerk | 5 |
- Pedal | 5 |
Gesamtzahl der Stimmen | 18 |
Tastentraktur | Mechanical |
Registertraktur | Mechanical |
Windlade(n) | Slider chests |
Tonhöhe | a' = 440 Hz |
Temperatur | Schlick |
Disposition
Hauptwerk (C-f'''): Copel 8', Flöte 8', Principal 4', Spitzflöte 4', Octav 2', Piffaro 2 fach (1 1/3'), Cornett 4 fach (4') (discant), Mixtur 3 fach (1').
Oberwerk (C-f'''): Gedeckt 8', Rohrflöte 4', Principal 2', Quinte 1 1/3', Octav 1'.
Pedal (C-f'): Subbass 16', Principalbass 8', Quintbass 5 1/3', Octav 4', Posaune 8'.
Koppeln: Manualkoppel (Schiebekoppel).
Nebenregister und Spielhilfen: Hauptwerk Umschaltung nach Kurze Oktave.
Weblinks |
https://ilanz-reformiert.ch/geschichte/kirche-st-margarethen/ http://peter-fasler.magix.net/public/GRProfile2/ilanz_ref_margrethen.htm |
|
|
|
|
|
