Complete description of the selected organ
Source: firma Oberlinger
Offenbach am Main, Deutschland (Hessen) - Katholische Stadtpfarrkirche Sankt Paul
Municipal: Offenbach am Main
Address: Kaiserstraße 60, 63065, Offenbach am Main
Website: https://bistummainz.de/pfarrei/offenbach-st-paul/
Description nr.: 2004439.
Built by: Oberlinger Orgelbau (1996)

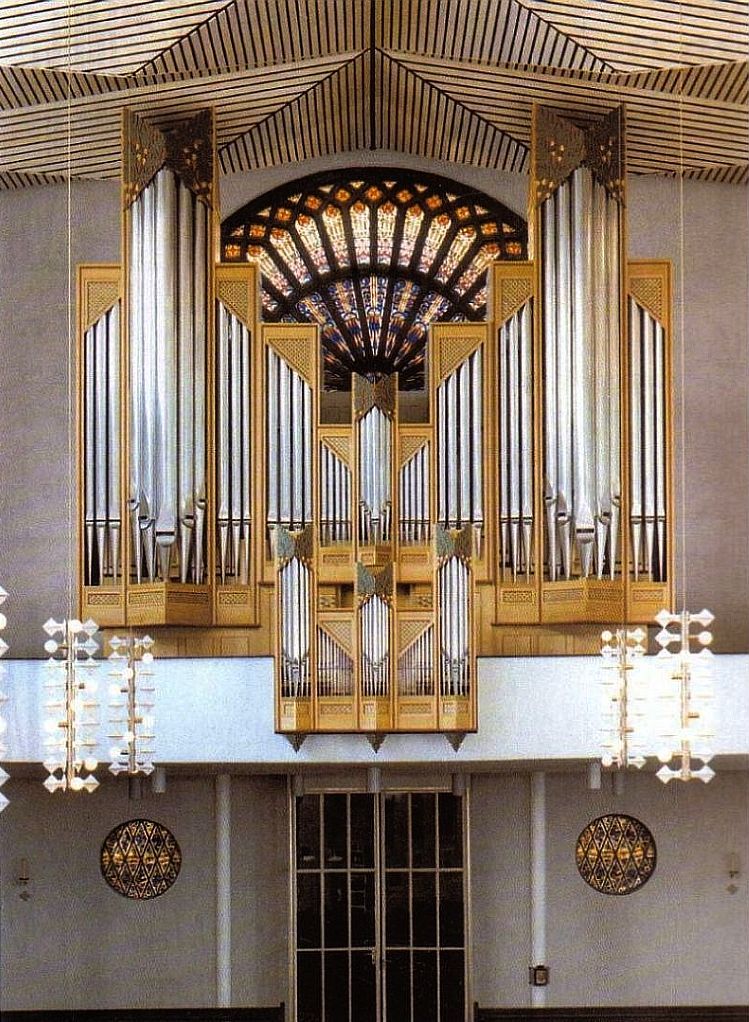

The Sankt Paulskirche in Offenbach is the main Roman Catholic church of the city. This church was originally built in 1828 and enlarged in 1865. But the old building was destroyed by a bombardment in 1943. The current church was consecrated in 1953. The Oberlinger company built a new organ for this church in 1995-1996 with forty stops. Three reed stops were only prepared for.
Technical data
Specification
Hauptwerk (C-g'''): Principal 16', Octave 8', Flûte Harmonique 8', Rohrflöte 8', Octave 4', Gedacktflöte 4', Quinte 2 2/3', Octave 2', Cornett 5 fach (8'), Mixtur 5 fach (1 1/3'), Trompete 8'.
Rückpositiv (C-g'''): Copula 8', Flaut Travers 8', Principal 4', Spitzflöte 4', Doublette 2', Larigot 1 1/3', Cymbel 4 fach (1'), Cromorne 8', Tremulant.
Schwellwerk (C-g'''): Bourdon 16', Holzprincipal 8', Bourdon 8', Salicional 8', Voix Céleste 8', Prestant 4', Flûte Octaviante 4', Nasard 2 2/3', Octavin 2', Tierce 1 3/5', Plein Jeu 5 fach (2'), Trompette Harmonique 8', Hautbois 8' - prepared, Clairon Harmonique 4' - prepared, Tremulant.
Pedal (C-f'): Principalbass 16', Subbass 16', Octavbass 8', Gedacktbass 8', Choralbass 4', Posaune 16', Trompete 8' - prepared.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Hauptwerk - Schwellwerk Suboktav, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk, Schwellwerk Suboktav.
Accessories: 650 Setzer-Kombinationen.
Source: firma Oberlinger
Offenbach am Main, Deutschland (Hessen) - Katholische Stadtpfarrkirche Sankt Paul
Municipal: Offenbach am Main
Address: Kaiserstraße 60, 63065, Offenbach am Main
Website: https://bistummainz.de/pfarrei/offenbach-st-paul/
Description nr.: 2004439.
Built by: Oberlinger Orgelbau (1996)
The Sankt Paulskirche in Offenbach is the main Roman Catholic church of the city. This church was originally built in 1828 and enlarged in 1865. But the old building was destroyed by a bombardment in 1943. The current church was consecrated in 1953. The Oberlinger company built a new organ for this church in 1995-1996 with forty stops. Three reed stops were only prepared for.
Technical data
| Number of stops per division | |
| - Hauptwerk | 11 |
| - Rückpositiv | 8 |
| - Schwellwerk | 14 |
| - Pedal | 7 |
| Total number of stops | 40 |
| Key action | Mechanical |
| Stop action | Electrical |
| Windchest(s) | Slider chests |
| Pitch | a' = 440 Hz |
| Temperament | Equal temperament |
| Wind pressure | 80 mm (Hauptwerk), 70 mm (Rückpositiv), 85 mm (Schwellwerk) en 100 mm (Pedal) |
Specification
Hauptwerk (C-g'''): Principal 16', Octave 8', Flûte Harmonique 8', Rohrflöte 8', Octave 4', Gedacktflöte 4', Quinte 2 2/3', Octave 2', Cornett 5 fach (8'), Mixtur 5 fach (1 1/3'), Trompete 8'.
Rückpositiv (C-g'''): Copula 8', Flaut Travers 8', Principal 4', Spitzflöte 4', Doublette 2', Larigot 1 1/3', Cymbel 4 fach (1'), Cromorne 8', Tremulant.
Schwellwerk (C-g'''): Bourdon 16', Holzprincipal 8', Bourdon 8', Salicional 8', Voix Céleste 8', Prestant 4', Flûte Octaviante 4', Nasard 2 2/3', Octavin 2', Tierce 1 3/5', Plein Jeu 5 fach (2'), Trompette Harmonique 8', Hautbois 8' - prepared, Clairon Harmonique 4' - prepared, Tremulant.
Pedal (C-f'): Principalbass 16', Subbass 16', Octavbass 8', Gedacktbass 8', Choralbass 4', Posaune 16', Trompete 8' - prepared.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Hauptwerk - Schwellwerk Suboktav, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk, Schwellwerk Suboktav.
Accessories: 650 Setzer-Kombinationen.
