Complete description of the selected organ
Photo: Bert Wisgerhof

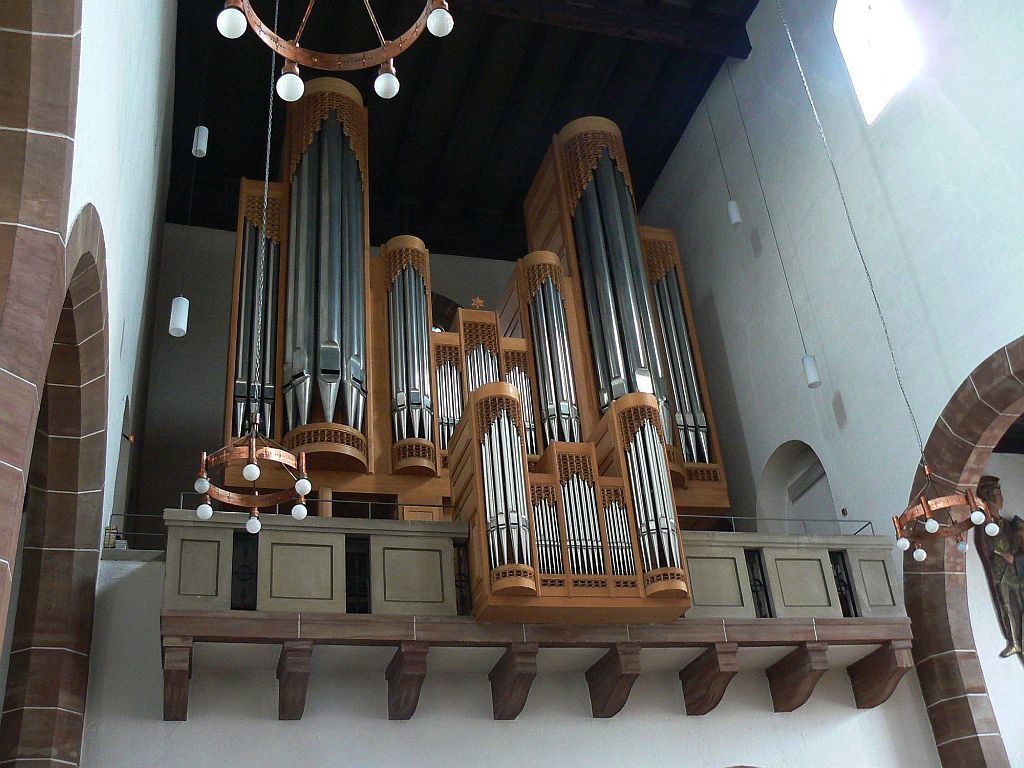

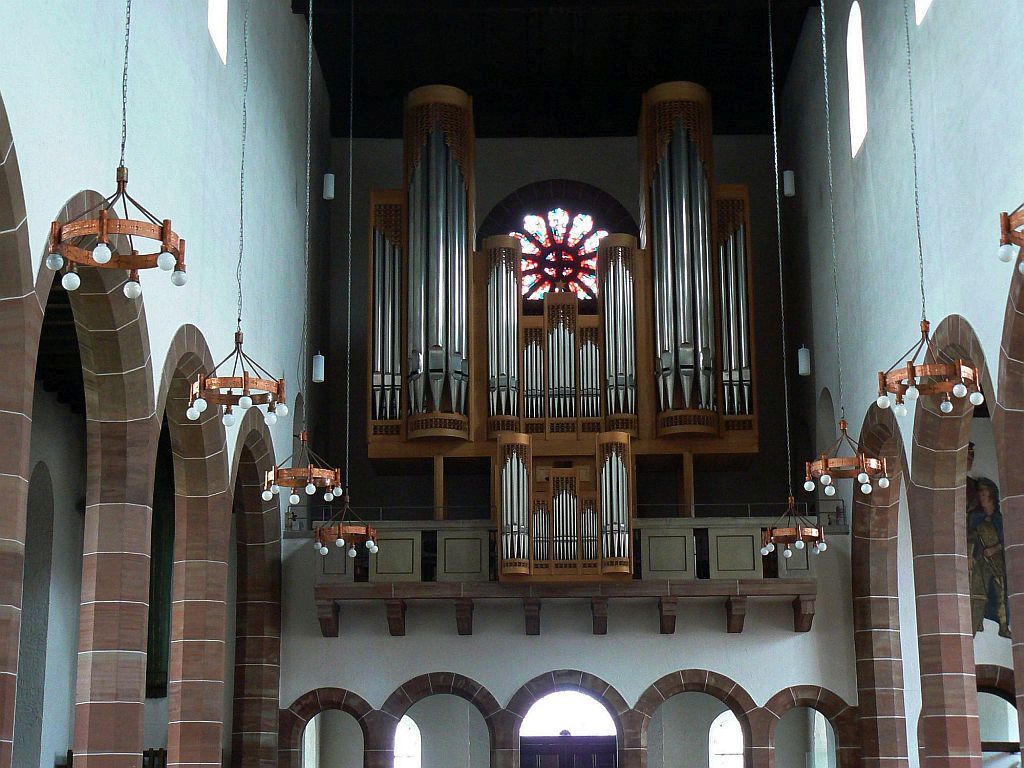

Losheim am See, Deutschland (Saarland) - Katholische Pfarrkirche Sankt Peter und Paul
Municipal: Losheim am See
Address: Hochwaldstraße 2, 66679, Losheim am See
Description nr.: 2004396.
Built by: Oberlinger Orgelbau (1985)
Technical data
Specification
Hauptwerk (C-g'''): Gemshorn 16', Principal 8', Rohrflöte 8', Viola da Gamba 8', Octave 4', Gedacktflöte 4', Quinte 2 2/3', Superoctave 2', Cornett 4 fach (from g°), Mixtur 4 fach (1 1/3'), Cymbel 3 fach (1/2'), Fagott 16', Trompete 8', Cymbelstern.
Rückpositiv (C-g'''): Copula 8', Quintade 8', Prästant 4', Blockflöte 4', Waldflöte 2', Larigot 1 1/3', Octave 1', Sesquialter 2 fach (2 2/3'), Scharff 4 fach (1'), Krummhorn 8', Tremulant.
Schwellwerk (C-g'''): Holzflöte 8', Gedackt 8', Salicional 8', Vox Coelestis 8', Principal 4', Koppelflöte 4', Nasard 2 2/3', Octave 2', Terz 1 3/5', Mixtur 5 fach (2'), Basson 16', Hautbois 8' - 2013, Trompette Harmonique 8' - 2013, Tremulant.
Pedal (C-f'): Kontrabass 32' - 2013; akoestisch, Principalbass 16', Subbass 16', Octavbass 8', Gedacktbass 8', Choralbass 4', Pedalmixtur 4 fach (2 2/3'), Posaune 16', Trompete 8', Trompete 4' - 1985/2013.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk, Hauptwerk - Schwellwerk 16' - 2013, Hauptwerk - Schwellwerk 4' - 2013.
Accessories: Setzerkombinationen - 2013.
Photo: Bert Wisgerhof
Losheim am See, Deutschland (Saarland) - Katholische Pfarrkirche Sankt Peter und Paul
Municipal: Losheim am See
Address: Hochwaldstraße 2, 66679, Losheim am See
Description nr.: 2004396.
Built by: Oberlinger Orgelbau (1985)
| Year | Builder | Opus | Activity | 1985 | Oberlinger Orgelbau | new organ | 2013 | Hugo Mayer Orgelbau | restoration and enlargement |
- In 1985 the Oberlinger company built a new three-manual organ for the Sankt-Peter-und-Paulkirche in Losheim. The organ had 45 stops, mechanical key and electric stop action with 256 Setzer combinations.
- In 2013, the instrument was overhauled by Hugo Mayer. A modern Setzer installation has been installed, as well as a new sub- and super-octave couplers. The stop list has also been alteredt: the Hautbois 8' of the Schwellwerk has been renewed, the Clairon 4' has been replaced by a Trompette Harmonique 8', and the pipework of the Clairon 4' has been used for a new Trompete 4' on the pedal. Finally, an acoustic Kontrabass 32' was placed on the pedal and the voicing of the organ has been partly overhauled.
Technical data
| Number of stops per division | |
| - Hauptwerk | 13 |
| - Rückpositiv | 10 |
| - Schwellwerk | 13 |
| - Pedal | 10 |
| Total number of stops | 46 |
| Key action | Mechanical |
| Stop action | Electrical |
| Windchest(s) | Slider chests |
Specification
Hauptwerk (C-g'''): Gemshorn 16', Principal 8', Rohrflöte 8', Viola da Gamba 8', Octave 4', Gedacktflöte 4', Quinte 2 2/3', Superoctave 2', Cornett 4 fach (from g°), Mixtur 4 fach (1 1/3'), Cymbel 3 fach (1/2'), Fagott 16', Trompete 8', Cymbelstern.
Rückpositiv (C-g'''): Copula 8', Quintade 8', Prästant 4', Blockflöte 4', Waldflöte 2', Larigot 1 1/3', Octave 1', Sesquialter 2 fach (2 2/3'), Scharff 4 fach (1'), Krummhorn 8', Tremulant.
Schwellwerk (C-g'''): Holzflöte 8', Gedackt 8', Salicional 8', Vox Coelestis 8', Principal 4', Koppelflöte 4', Nasard 2 2/3', Octave 2', Terz 1 3/5', Mixtur 5 fach (2'), Basson 16', Hautbois 8' - 2013, Trompette Harmonique 8' - 2013, Tremulant.
Pedal (C-f'): Kontrabass 32' - 2013; akoestisch, Principalbass 16', Subbass 16', Octavbass 8', Gedacktbass 8', Choralbass 4', Pedalmixtur 4 fach (2 2/3'), Posaune 16', Trompete 8', Trompete 4' - 1985/2013.
Couplers: Hauptwerk - Rückpositiv, Hauptwerk - Schwellwerk, Rückpositiv - Schwellwerk, Pedal - Hauptwerk, Pedal - Rückpositiv, Pedal - Schwellwerk, Hauptwerk - Schwellwerk 16' - 2013, Hauptwerk - Schwellwerk 4' - 2013.
Accessories: Setzerkombinationen - 2013.
