Ausführliche Beschreibung der vorgewählten Orgel
Bild: Michiel van 't Einde
Ootmarsum, Nederland (Overijssel) - Kapel 'Maria ad Fontes'
Gemeinde: Dinkelland
Region:Twente
Adresse: Oostwal 24, 7631 EJ, Ootmarsum
Beschreibung nr.: 1010426.
Gebaut von: Gerardus Petrus Bik (1936)
Technische Daten
Disposition

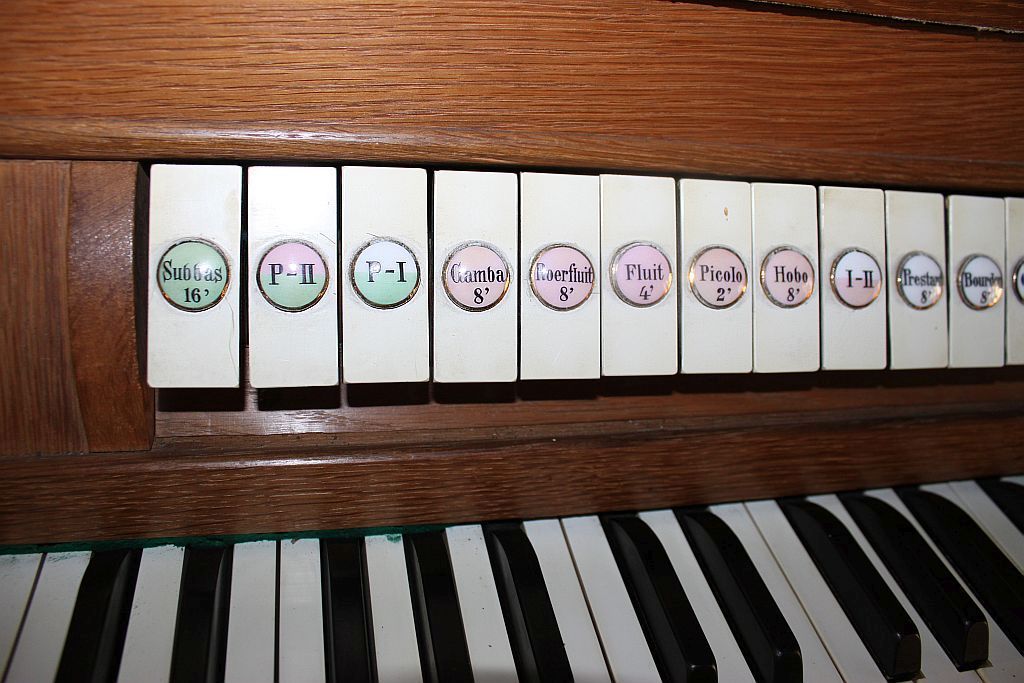

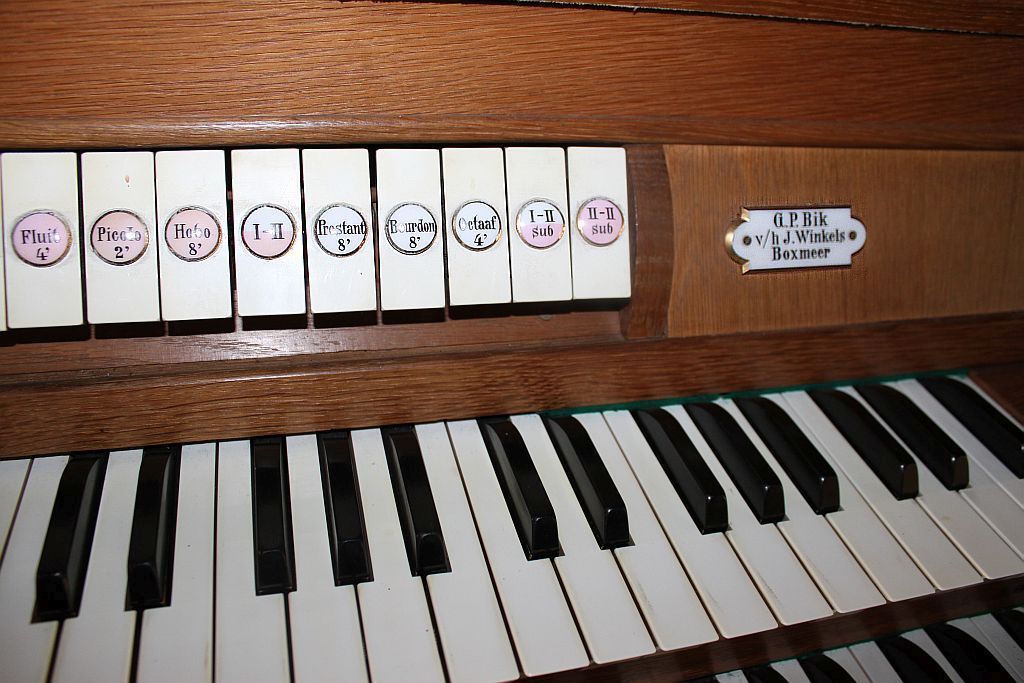

Manuaal I (C-g'''): Prestant 8', Bourdon 8', Octaaf 4'.
Manuaal II (C-g'''): Gamba 8', Roerfluit 4', Fluit 4' - oud, Picolo 2' - oud, Hobo 8'.
Pedaal (C-d'): Subbas 16'.
Koppeln: Manuaal I - Manuaal II, Manuaal I - Manuaal II Sub, Manuaal II - Manuaal II Sub, Pedaal - Manuaal I, Pedaal - Manuaal II.
Nebenregister und Spielhilfen: 5 vaste combinaties (p - mf - f - ff - tutti) - niet meer in gebruik, Crescendotrede.
Bild: Michiel van 't Einde
Ootmarsum, Nederland (Overijssel) - Kapel 'Maria ad Fontes'
Gemeinde: Dinkelland
Region:Twente
Adresse: Oostwal 24, 7631 EJ, Ootmarsum
Beschreibung nr.: 1010426.
Gebaut von: Gerardus Petrus Bik (1936)

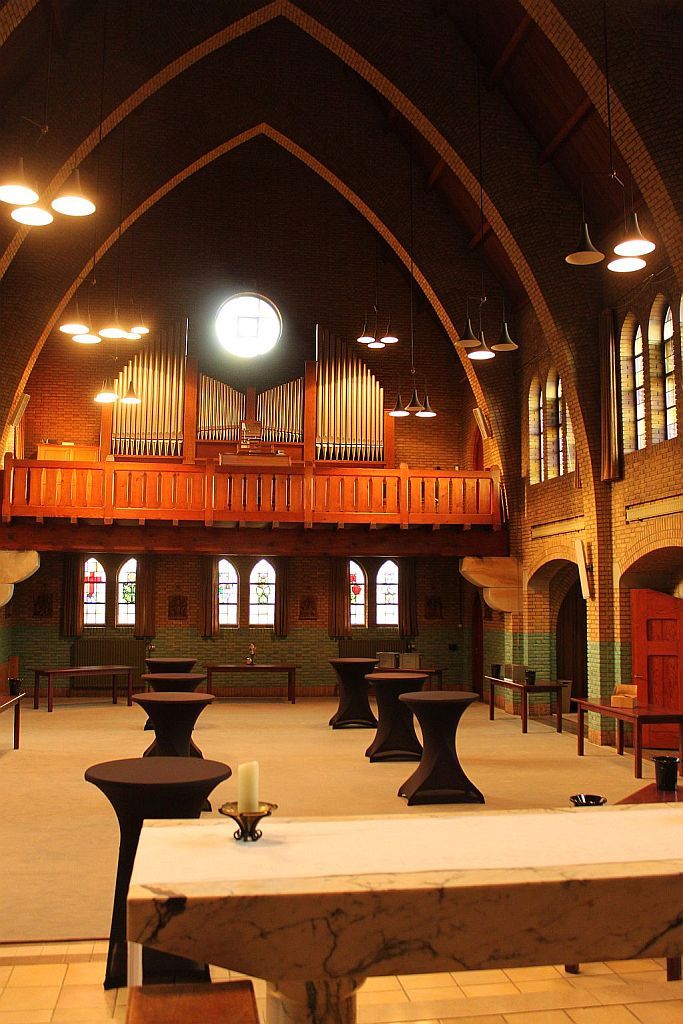

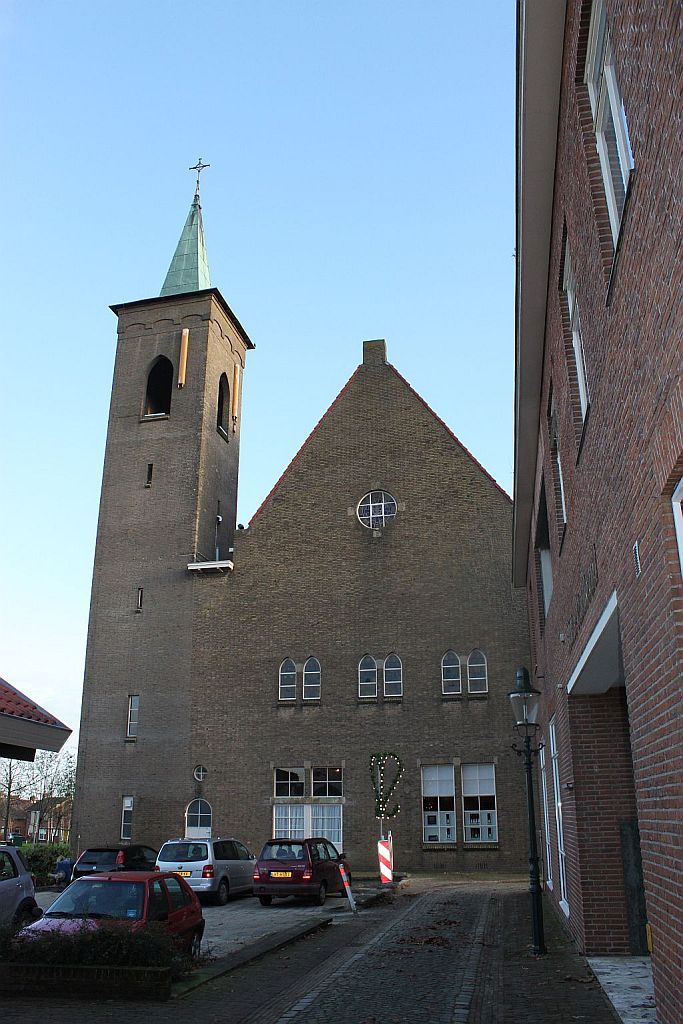

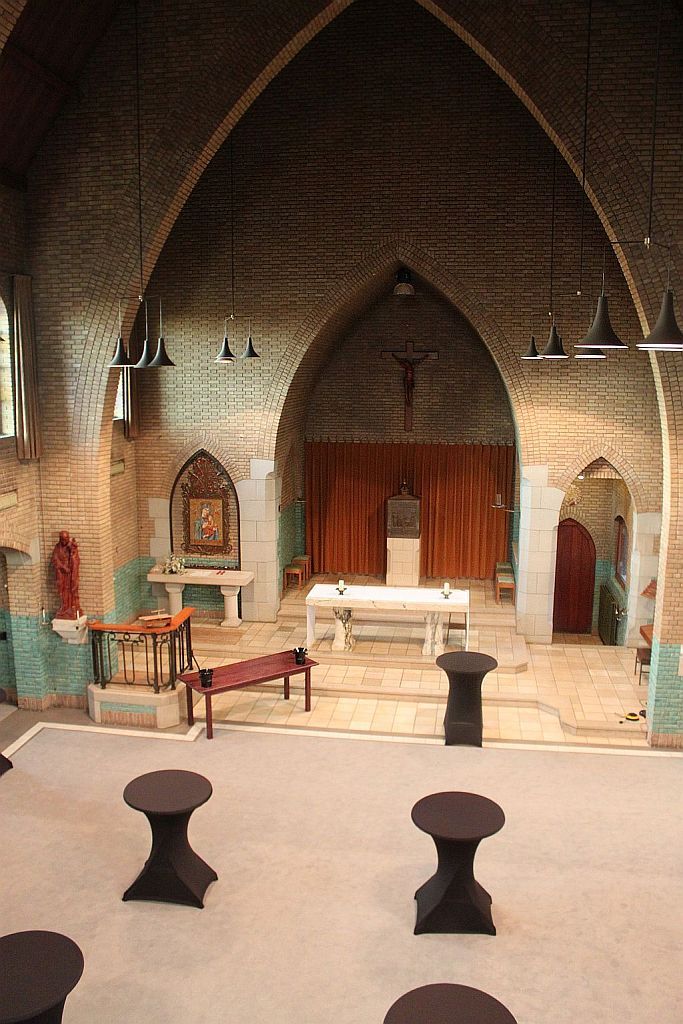

- The 'Maria ad Fontes' chapel is the former monastery chapel of the monastery of the Sisters of Our Lady ter Eem (Onze Lieve Vrouwe ter Eem). The building was built in 1938 and was consecrated on March 18, 1938. After a last celebration on December 10, 2006, the monastery was taken out of service. Since then, various cultural activities have been developed in the chapel, in particular concerts and exhibitions.

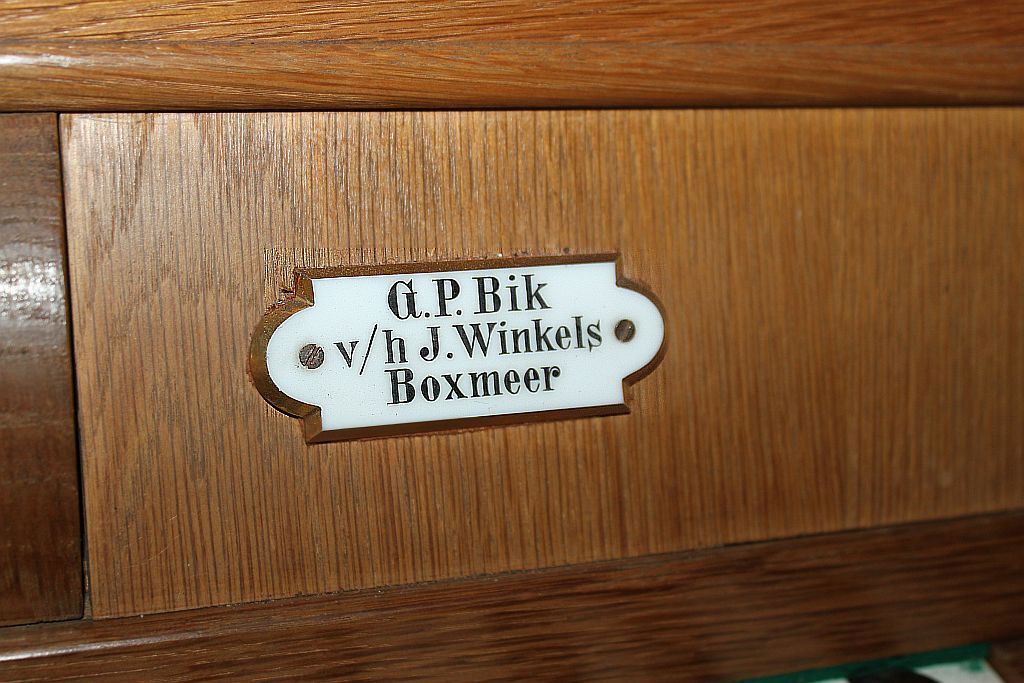

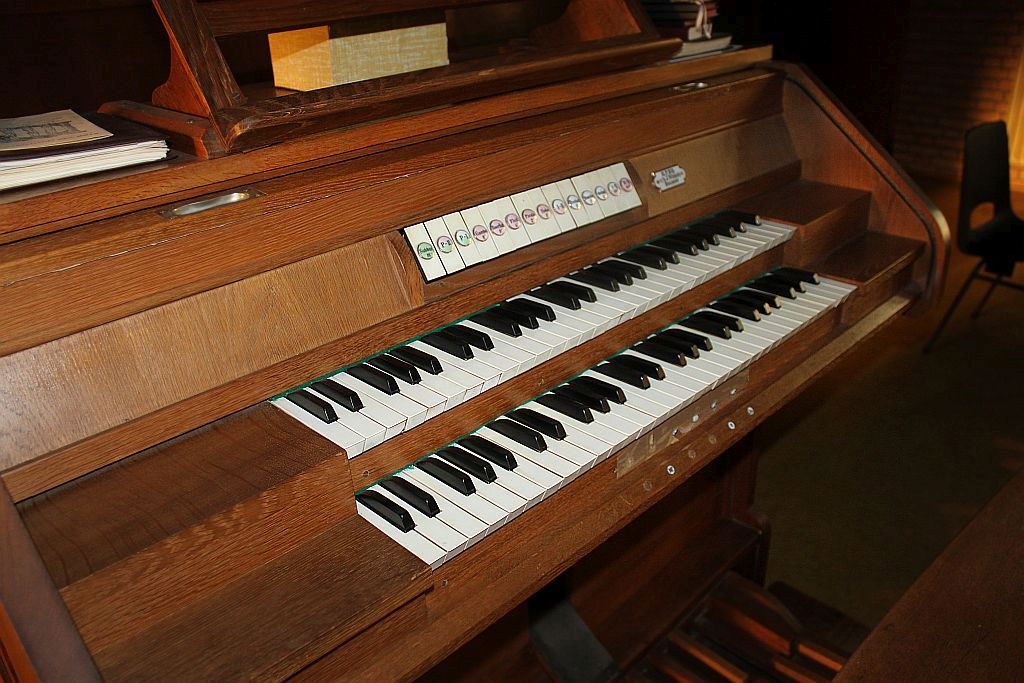

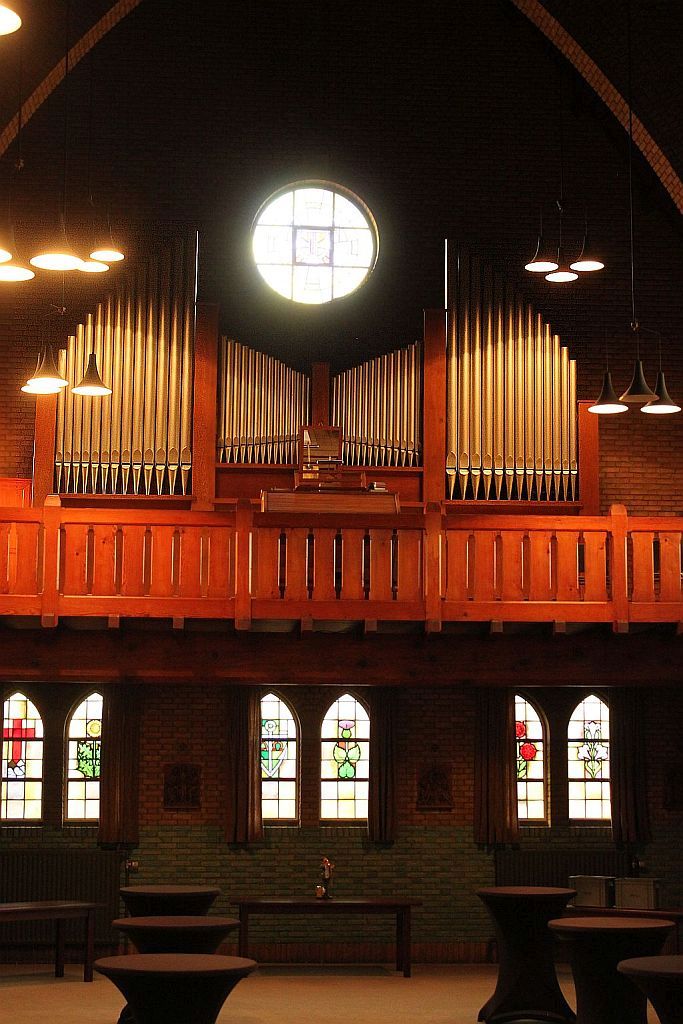

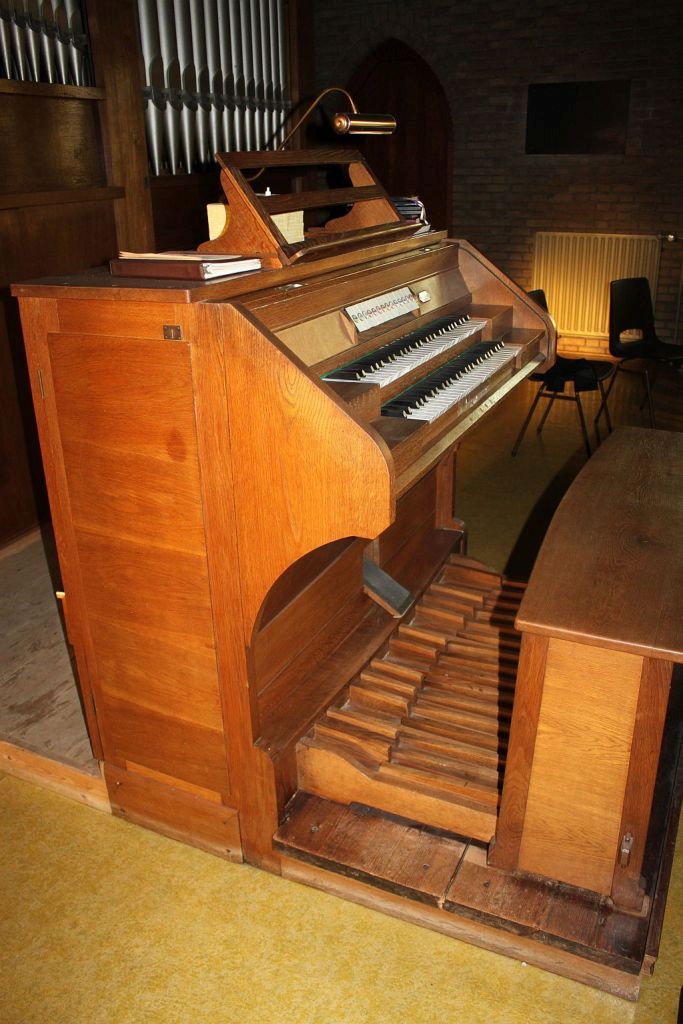

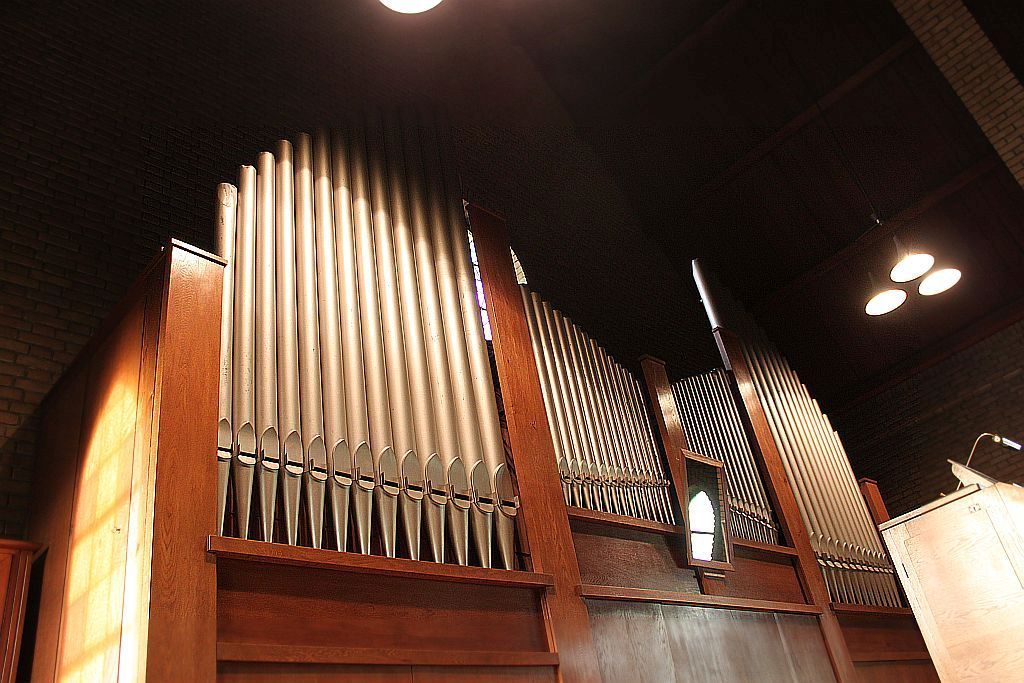

- The organ was built in 1936 under the advice of C. Huigens by G.P. Bik (v/h J. Winkels) from Boxmeer, according to the pure pneumatic system using cone chests. The pipework is divided into two manuals and pedal. During the construction, two registers (Roerfluit 8' and Piccolo 2') were taken from an older organ, built by the Elberink company.
- The organ was changed later, but it is not known by whom and when. In any case, the Roerfluit 8' has moved up to a Fluit 4', and the Hobo 8' has been replaced by a Nasard 2 2/3'. There is no manual coupler present. The name signs of the fixed combinations are also not original.
Technische Daten
| Anzahl Register pro Manual | |
| - Manuaal I | 3 |
| - Manuaal II | 5 |
| - Pedaal | 1 |
| Gesamtzahl der Stimmen | 9 |
| Tastentraktur | Pneumatic |
| Registertraktur | Pneumatic |
| Windlade(n) | Cone chests |
Disposition
Manuaal I (C-g'''): Prestant 8', Bourdon 8', Octaaf 4'.
Manuaal II (C-g'''): Gamba 8', Roerfluit 4', Fluit 4' - oud, Picolo 2' - oud, Hobo 8'.
Pedaal (C-d'): Subbas 16'.
Koppeln: Manuaal I - Manuaal II, Manuaal I - Manuaal II Sub, Manuaal II - Manuaal II Sub, Pedaal - Manuaal I, Pedaal - Manuaal II.
Nebenregister und Spielhilfen: 5 vaste combinaties (p - mf - f - ff - tutti) - niet meer in gebruik, Crescendotrede.
| Literatur |
Ootmarsum, Klooster Maria ad Fontes / Wout van Kuilenburg. - Boxmeer : Stichting Johann Winkels - Kerkorgelfabriek, [2015]. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
