Description complète d'orgue sélectionné
Photo: Piet Bron
Heilig Landstichting, Nederland (Gelderland) - Cenakelkerk
Commune: Nijmegen
Adresse: Profetenlaan 2, 6564 BL, Heilig Landstichting
Site Web: https://parochie-heiligedrie-eenheid.nl/
Description no.: 1009320.
Bâti par: firma Jos H. Vermeulen (1948)
Interior removed (1984)
Données techniques
Composition
Manuaal I: Prestant 8', Bourdon 8', Roerfluit 4', Mixtuur II-III sterk, Schalmei 8'.
Manuaal II (in zwelkast): Kwintadeen 8', Prestant 4', Gemshoorn 4', Nasard 2 2/3', Nachthoorn 2', Tremulant.
Altaarorgel: Fluit 8', Roerfluit 4'.
Pedaal: Subbas 16', Gedektbas 8' - extension, Corno 4' - extension.
Accouplements: Manuaal I - Manuaal II, Manuaal I - Manuaal II 16, Pedaal - Manuaal I, Pedaal - Manuaal II.
Photo: Piet Bron
Heilig Landstichting, Nederland (Gelderland) - Cenakelkerk
Commune: Nijmegen
Adresse: Profetenlaan 2, 6564 BL, Heilig Landstichting
Site Web: https://parochie-heiligedrie-eenheid.nl/
Description no.: 1009320.
Bâti par: firma Jos H. Vermeulen (1948)
Interior removed (1984)

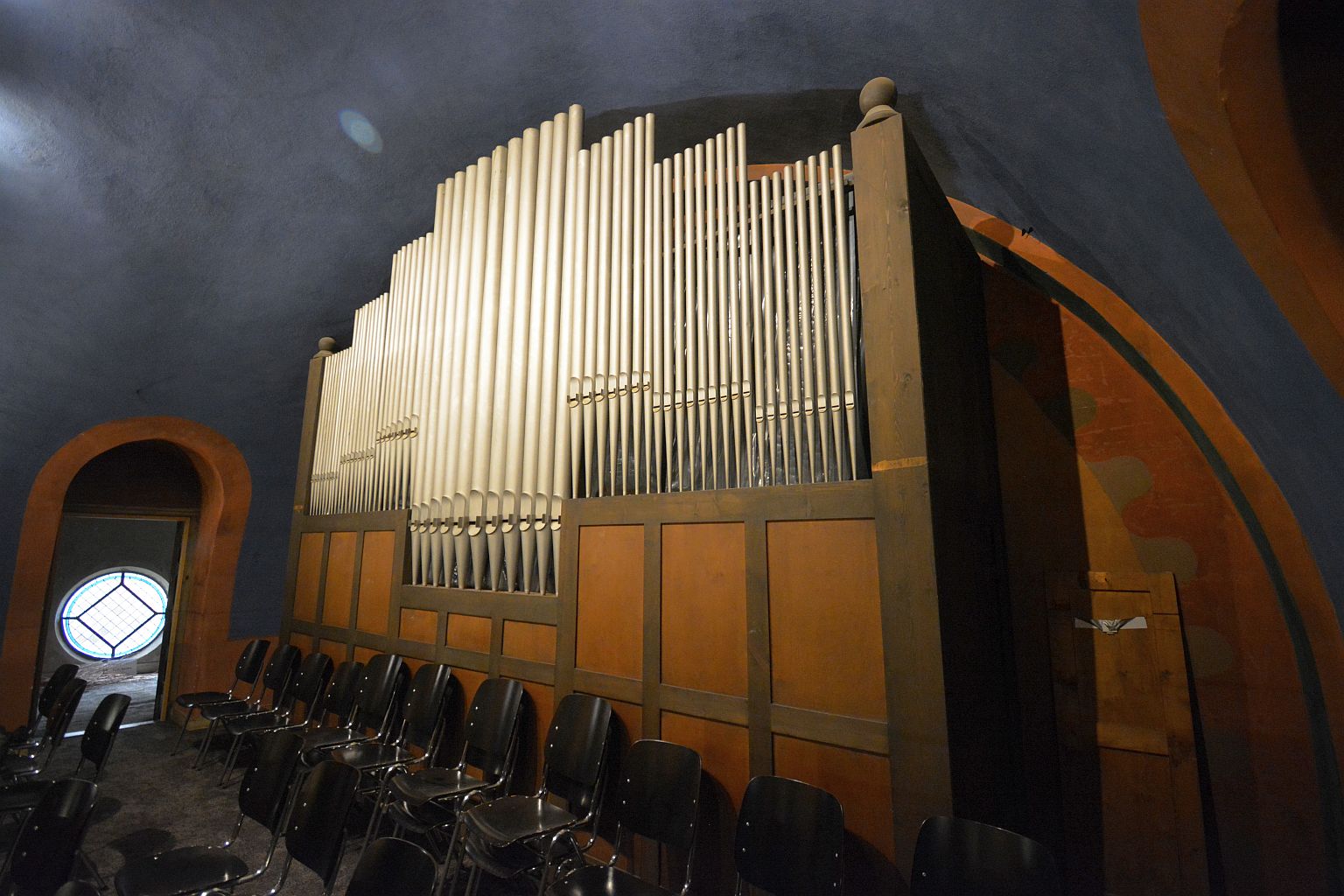

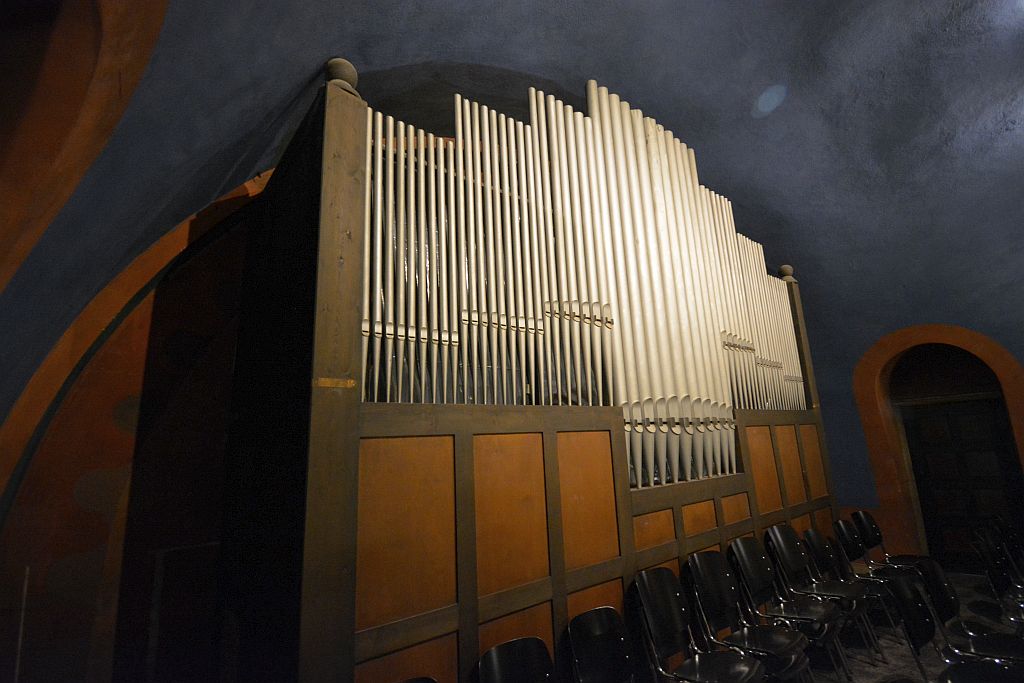

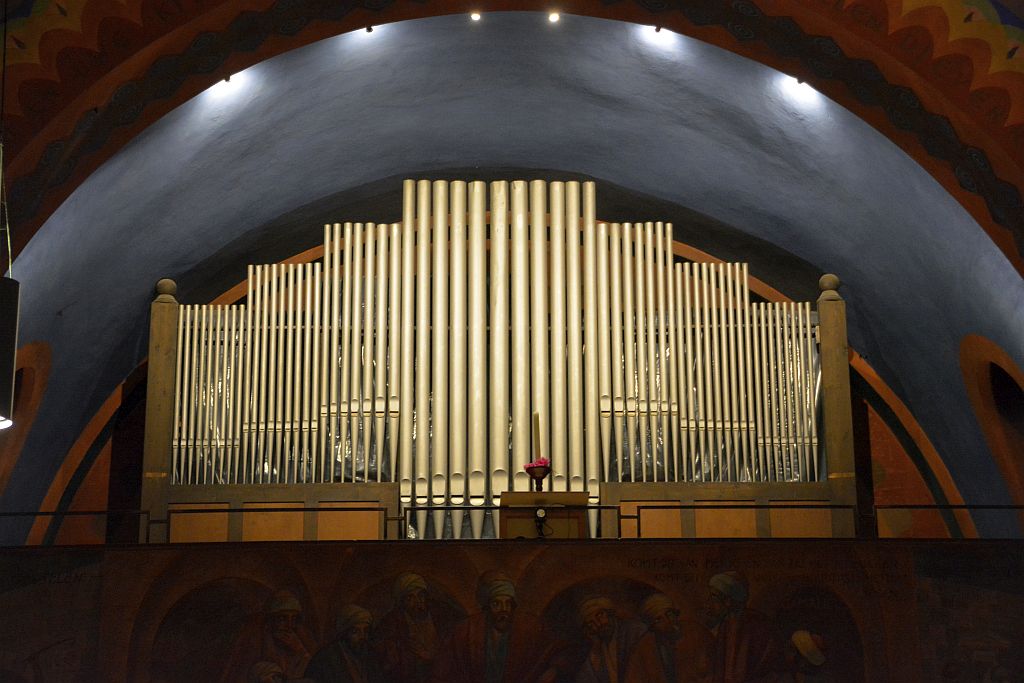

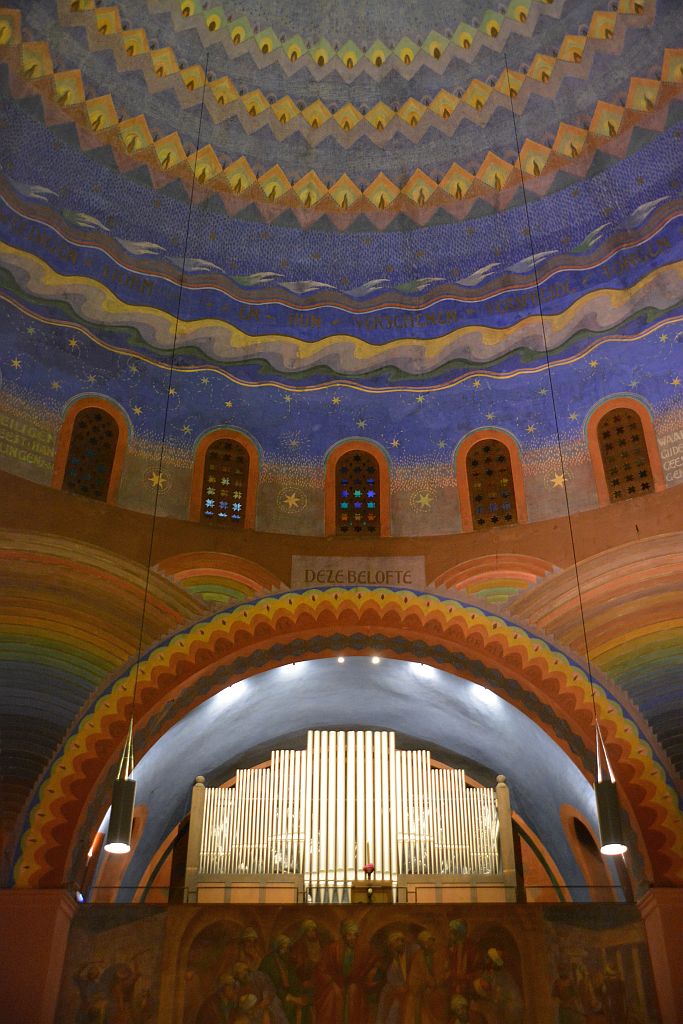

- The organ of the Cenakelkerk in Heilig Landstichting near Nijmegen is an instrument built by the company Jos. H. Vermeulen, Alkmaar in 1947-1948. The instrument was dedicated on March 29, 1948, Easter Monday. Flor Peeters played the inauguration concert. The organ existed of two parts: a large organ on the west side of the church, and a small organ with two ranks on the choir, behind the main altar in a hole in the floor. The console was located on the church floor near the altar.
- In 1984, the altar organ was removed an the hole was filled. A new pipe organ was installed on the choir, and the Vermeulen organ has not been used since. Parts of the instrument are removed.
Données techniques
| Nombre de registres par manuel | |
| - Manuaal I | 5 |
| - Manuaal II | 5 |
| - Altaarorgel | 2 |
| - Pedaal | 3 (1) |
| Nombre de jeux total | 15 (13) |
| Transmission des clés | Electrical |
| Transmission des jeux | Electrical |
| Sommier(s) | Cone chests |
Composition
Manuaal I: Prestant 8', Bourdon 8', Roerfluit 4', Mixtuur II-III sterk, Schalmei 8'.
Manuaal II (in zwelkast): Kwintadeen 8', Prestant 4', Gemshoorn 4', Nasard 2 2/3', Nachthoorn 2', Tremulant.
Altaarorgel: Fluit 8', Roerfluit 4'.
Pedaal: Subbas 16', Gedektbas 8' - extension, Corno 4' - extension.
Accouplements: Manuaal I - Manuaal II, Manuaal I - Manuaal II 16, Pedaal - Manuaal I, Pedaal - Manuaal II.
| Références |
Mixturen. - In: De Schalmei, 3e Jaargang Nr. 3, Mei 1948. |
 |
