Ausführliche Beschreibung der vorgewählten Orgel

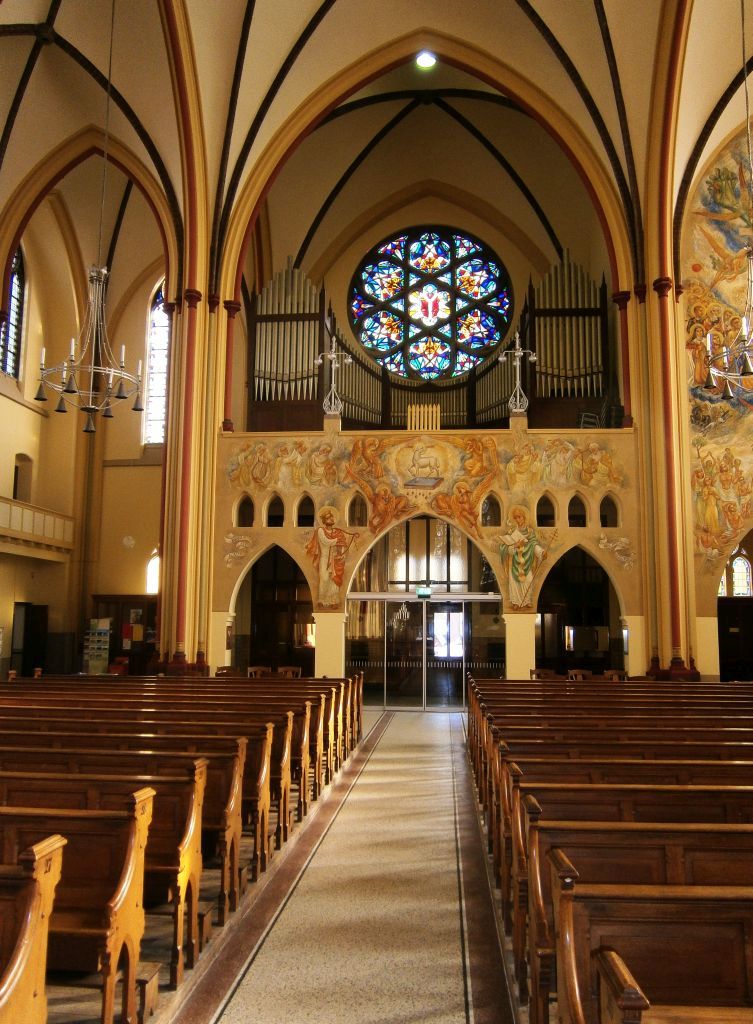

Bild: Henk Brussee
Noordwijk-Binnen, Nederland (Zuid-Holland) - Sint Jeroenskerk
Gemeinde: Noordwijk
Adresse: Van Limburg Stirumstraat 24, 2201 JP, Noordwijk-Binnen
Website: http://www.stjeroenenmariaterzee.nl/
Beschreibung nr.: 1004966.
Gebaut von: Bernard Pels & Zn. (1919) - Opus 17
Demolished (2013)
Technische Daten
Disposition
Manuaal I (C-f'''): Prestant 8', Roerfluit 8', Octaaf 4', Fluit Gedekt 4', Quint 2 2/3' - 1973, Superoctaaf 2', Sesquialter II sterk - 1973, Mixtuur IV-V sterk - 1973, Trompet 8'.
Manuaal II (C-f'''): Prestant 8' - 1973, Holpijp 8', Octaaf 4', Roerfluit 4', Woudfluit 2', Superquint 1 1/3' - 1973, Sifflet 1' - 1973, Hobo 8'.
Pedaal (C-d'): Contrabas 16', Subbas 16', Octaaf 8', Gedekt 8' - 1973, Prestant 4' - 1973, Mixtuur III sterk - 1973, Bazuin 16'.
Koppeln: Manuaal I - Manuaal II, Pedaal - Manuaal I, Pedaal - Manuaal II.

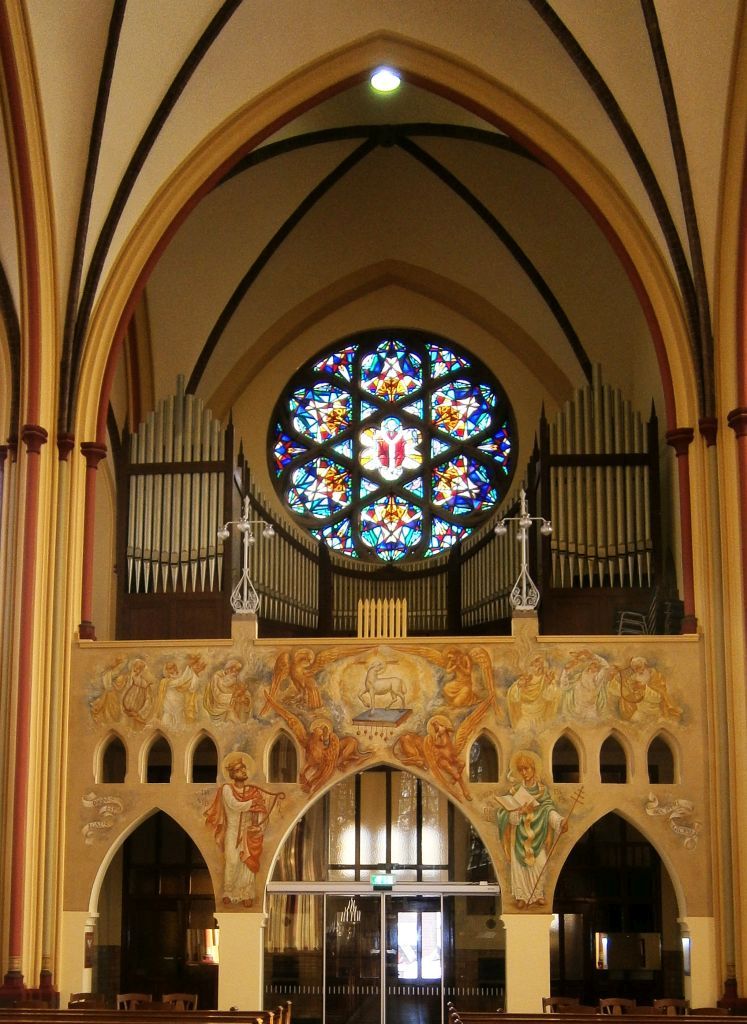

Bild: Henk Brussee
Noordwijk-Binnen, Nederland (Zuid-Holland) - Sint Jeroenskerk
Gemeinde: Noordwijk
Adresse: Van Limburg Stirumstraat 24, 2201 JP, Noordwijk-Binnen
Website: http://www.stjeroenenmariaterzee.nl/
Beschreibung nr.: 1004966.
Gebaut von: Bernard Pels & Zn. (1919) - Opus 17
Demolished (2013)
Jahr | Orgelbauer | Opus | Aktivität | 1919 | Bernard Pels & Zn. | 17 | Neubau | 1927 | Bernard Pels & Zn. | Vergrößerung | 1973 | firma Jos H. Vermeulen | Restaurierung | 2013 | Adema's Kerkorgelbouw | Verschiedene Tätigkeiten |
- In April 1919, the Pels company installed a new organ in the parish church of Sint Jeroen in Noordwijk-Binnen. The previous instrument, which was originally built in 1787 by Hendrik Meijer for the church 'De Krijtberg' in Amsterdam, was probably demolished. Pels's organ initially had twelve stops, but space was reserved for another nine registers. It was dedicated on Easter Sunday, April 20, 1919. After the High Mass, Father J.C.W. van de Wiel played the dedication concert with works by Bach and Franck. The organ was completed by Pels in 1927.
- The instrument was completely overhauled, electrified and modified by Jos Vermeulen in 1973. The stop list was adapted to the ideas of this time.
- At the end of 2009/beginning of 2010, the swell box around the second manual was removed, probably because it had been infected by woodworm. In 2013, a Maarschalkerweerd organ was installed behind the facade of Pels by the company Adema. Some registers were taken over from the Pels organ to complete this instrument.
Technische Daten
Anzahl Register pro Manual | |
- Manuaal I | 9 |
- Manuaal II | 8 |
- Pedaal | 7 |
Gesamtzahl der Stimmen | 24 |
Tastentraktur | Electropneumatic |
Registertraktur | Electropneumatic |
Windlade(n) | Cone chests |
Disposition
Manuaal I (C-f'''): Prestant 8', Roerfluit 8', Octaaf 4', Fluit Gedekt 4', Quint 2 2/3' - 1973, Superoctaaf 2', Sesquialter II sterk - 1973, Mixtuur IV-V sterk - 1973, Trompet 8'.
Manuaal II (C-f'''): Prestant 8' - 1973, Holpijp 8', Octaaf 4', Roerfluit 4', Woudfluit 2', Superquint 1 1/3' - 1973, Sifflet 1' - 1973, Hobo 8'.
Pedaal (C-d'): Contrabas 16', Subbas 16', Octaaf 8', Gedekt 8' - 1973, Prestant 4' - 1973, Mixtuur III sterk - 1973, Bazuin 16'.
Koppeln: Manuaal I - Manuaal II, Pedaal - Manuaal I, Pedaal - Manuaal II.
Übrige dispositiondaten | |
---|---|
Mehrere dispositionen |
The original specification was: Manuaal I: Bourdon 16', Prestant 8', Salicionaal 8', Roerfluit 8', Octaaf 4', Fluit 4' (1927), Octaaf 2' (1927), Mixtuur II-III sterk, Trompet 8' (1927). Manuaal II: Viola di Gamba 8', Vox Caelestis 8', Aeoline 8', Holpijp 8', Roerfluit 4' (1927), Fluit Dolce 4', Woudfluit 2' (1927), Basson-Hobo 8' (1927). Pedaal: Contrabas 16' (1927), Subbas 16' (transmissie), Octaafbas 8' (1927), Bazuin 16' (1927). Het hele orgel in een zwelkast. Koppelingen: Manuaal I - Manuaal II, Pedaal - Manuaal I, Pedaal - Manuaal II, Manuaal I - Manuaal II 16', Manuaal II - Manuaal II 16'. Speelhulpen: Tremolo, Vaste combinaties (p - f - t), Automatische pedaalomschakeling. |
Literatur |
|
Weblinks |
http://www.adema-kerkorgelbouw.nl/projecten/page146/noordwijk_jeroen_hoofdorgel.html |
|
|
